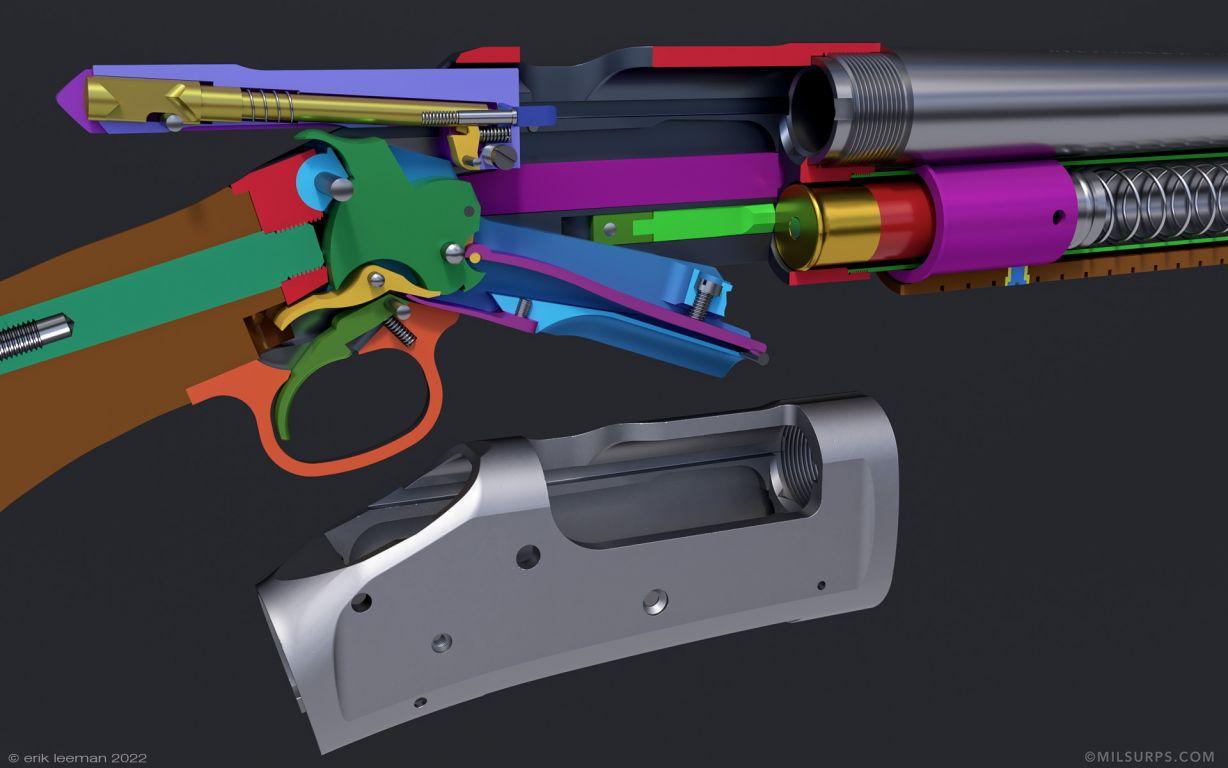

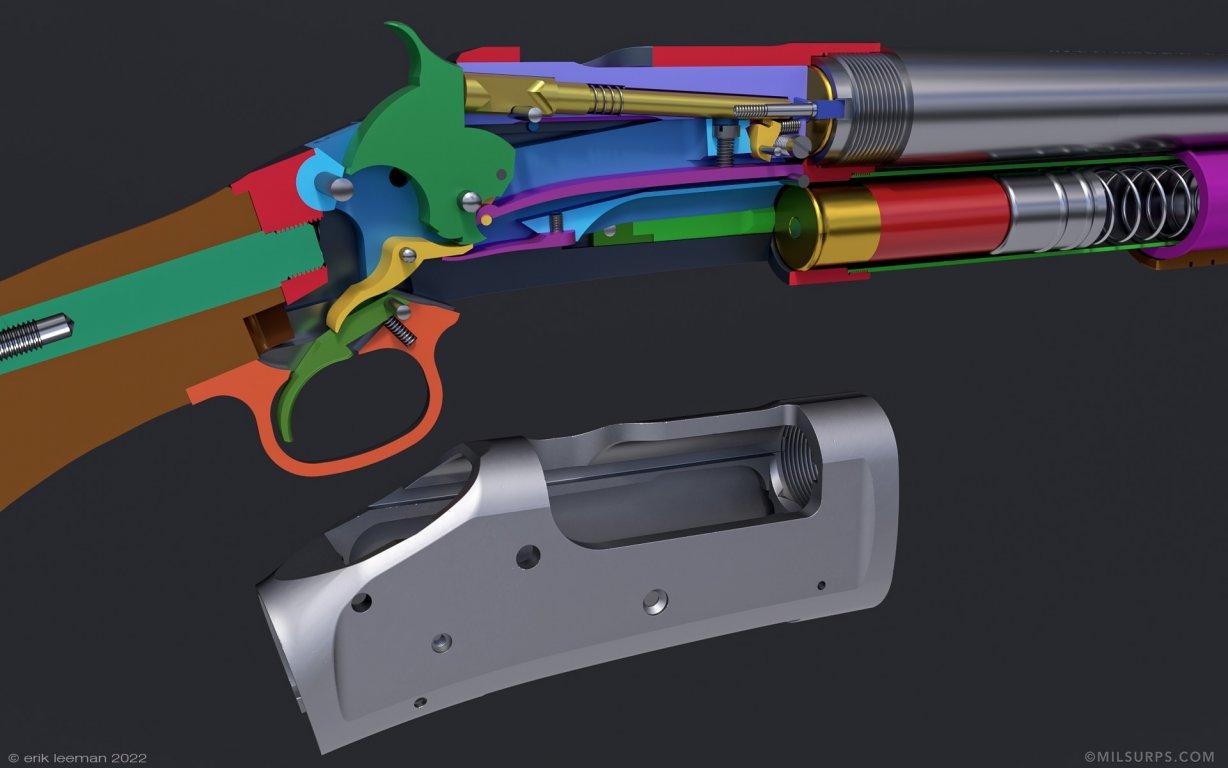

Some Winchester 1893 images
I wasn't sure if this old shotgun belongs in the black powder thread, or in this one.
Since its firing mechanism is very similar to its nitro successor I thought this might be the most appropriate one. Hope some of you find them interesting.
I'll also do some cut away views of the other side, showing the slide mechanism.
Looking at it cut open like this it sure makes you wonder how on earth this thing could possibly work : )
https://www.milsurps.com/vbpgimage.p...1&d=1644585089
https://www.milsurps.com/vbpgimage.p...9&d=1644430594
Cheers!
Erik
