Ishapore Mk I***

Hello all,

In the past year, I put three rifles back into military configuration, using a mix of repro and original parts. One was a SMLE Mk I*, an SMLE Mk I***, and an SMLE Mk V. They were enjoyable, therapeutic projects. I made myself a New Years resolution not to rescue any more rifles.

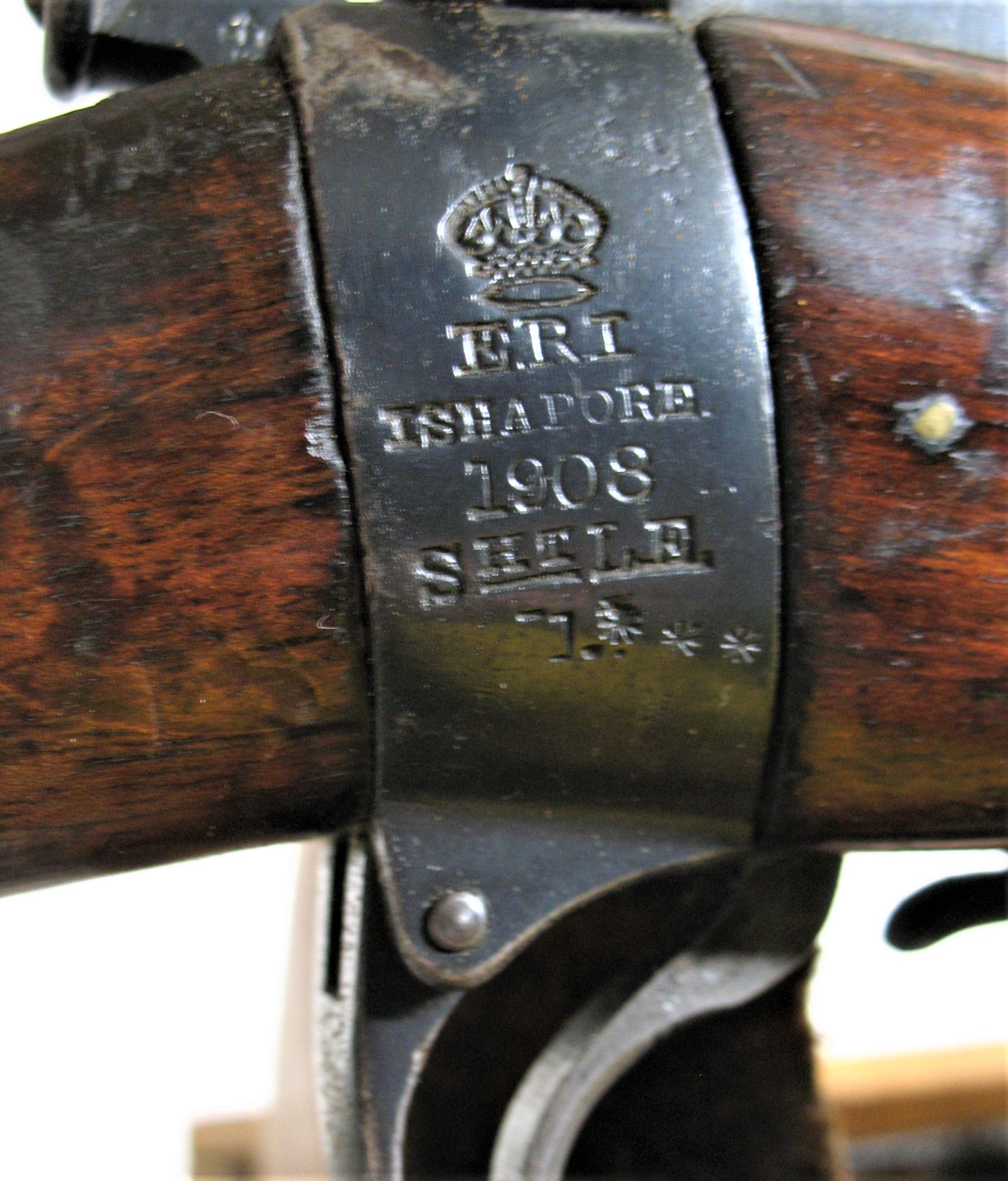

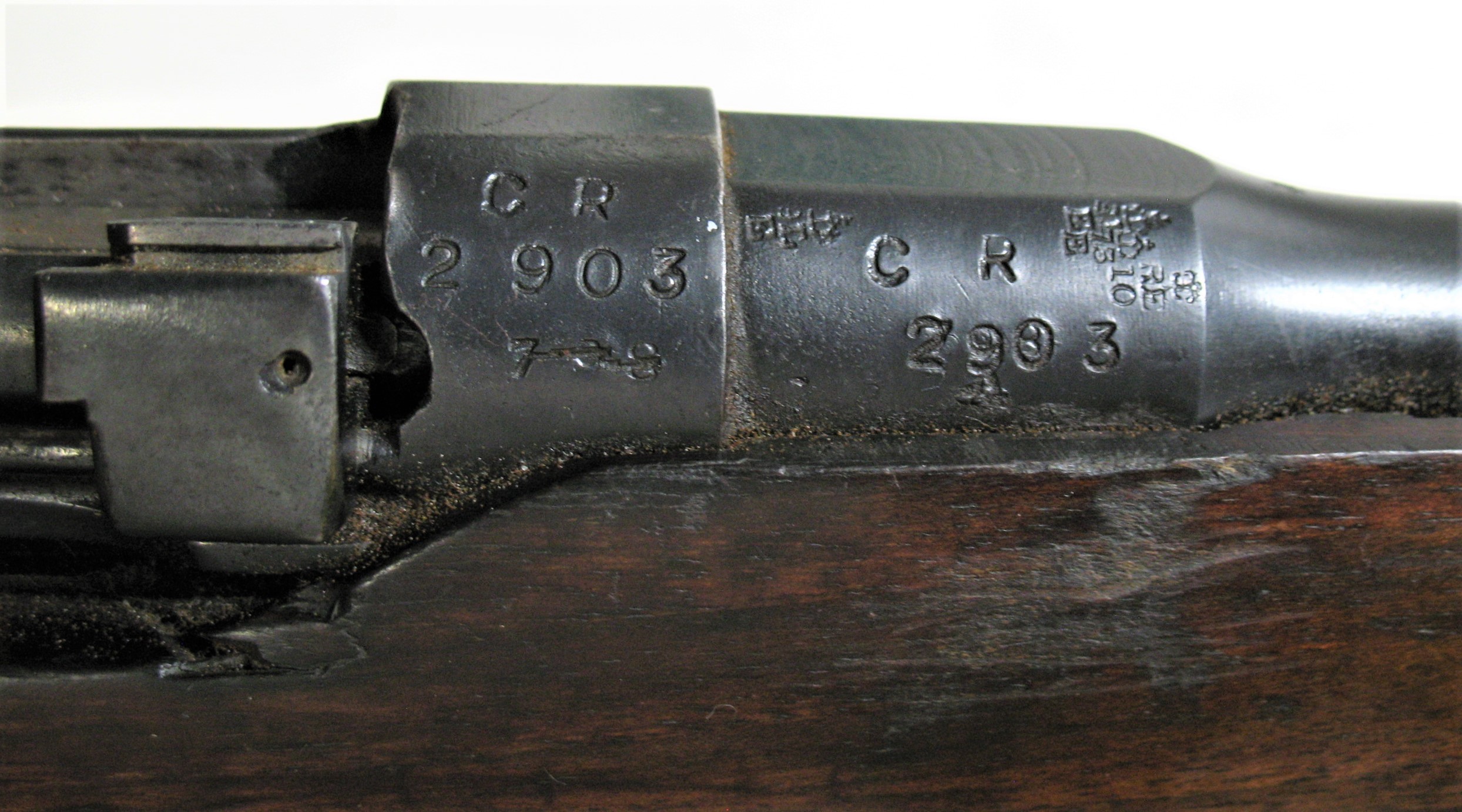

Well, I made it exactly 17 days into 2022 before breaking that resolution. The owner of a local gunshop called me and said he had a sporterized Enfield for sale. He said it was an Indian produced rifle. I was mildly interested until he said it had a "weird peep sight" that folded along the left side. This immediately got my attention. I asked if the rifle had a charger bridge, and he said it didn't. I asked if the serial number began with a CR, an ER, or a G. He said it was a CR prefix serial number. Later, he texted me pics, and I couldn't believe my eyes; it was an Ishapore Mk I* IP later upgraded to I***, made in 1908. Only approximately 3000 were ever made. I made it over to his shop and wound up buying it for $300.

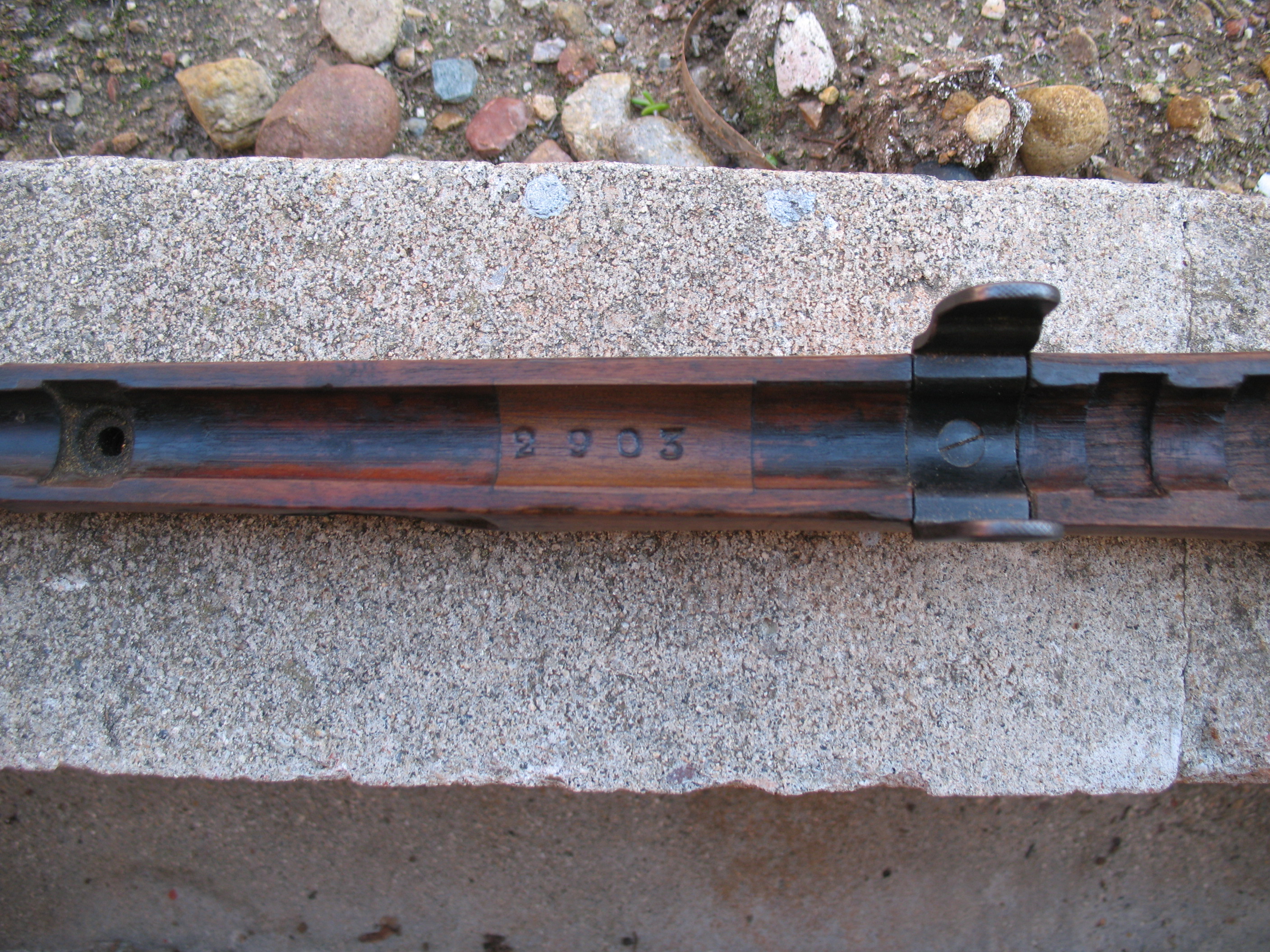

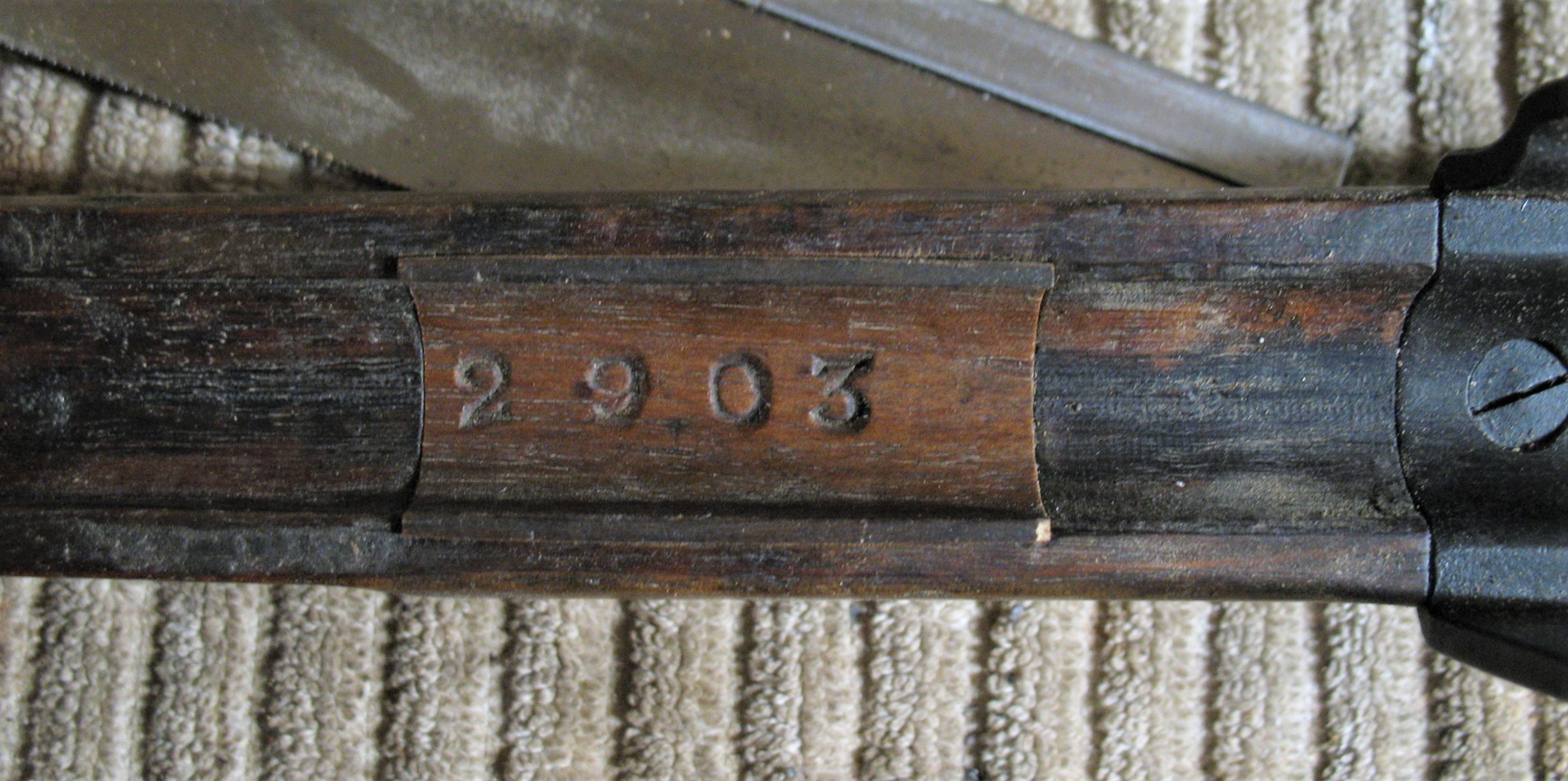

Unfortunately, it had been horribly sporterized. The forend was in awful shape. When I took it apart, I saw the draws were pulp, so I knew I wasn't going to be able to salvage it. It was also missing the sliding charger guide for the bolt, the volley sight plate, a magazine, and other small parts. I had most of the parts needed (magazine, Mk I nosecap, cut-off). I also had an SMLE Mk III forend with volley sight cut-outs I had been hoarding for about 30 years. I pulled this out of the garage rafters and remembered why I hadn't used it earlier; it was in dire need of repair. So I set about repairing the cracks, draws, and patching in missing wood. I thought it was a shame to lose the original serial numbered forend. So I cut out the serial number, and used it as a patch in the stock where the SMLE Mk III sight base would normally occupy. I was able to source a sliding charger from a fellow collector, and between my spare parts bin and Apex Gun Parts, I was able to get this rifle back to looking like it should. As the CR-prefix Mk I***'s had many Mk III characteristics, it does look the proper part.

Hope you enjoy the pics.

Attachment 124704 Attachment 124705 Attachment 124706 Attachment 124707

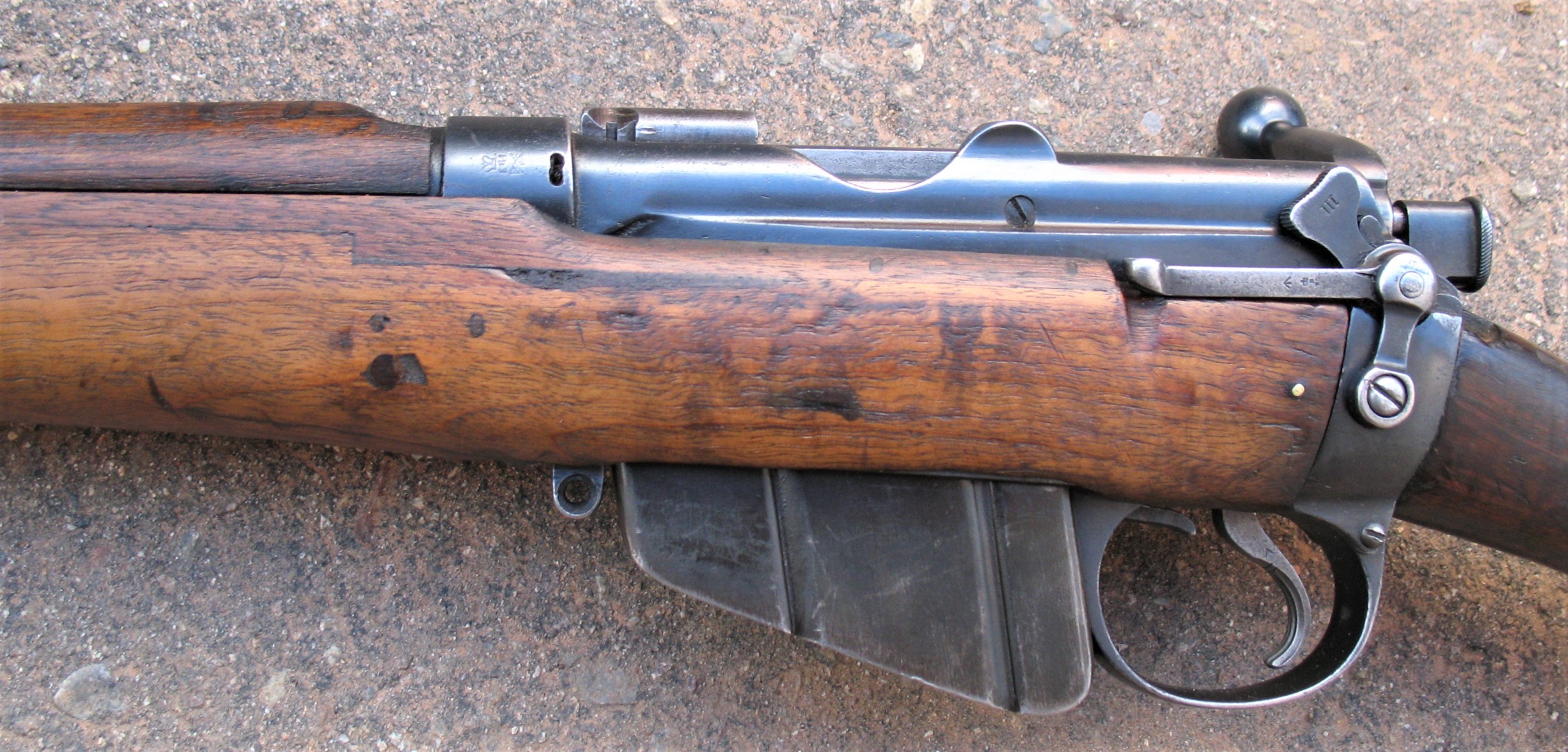

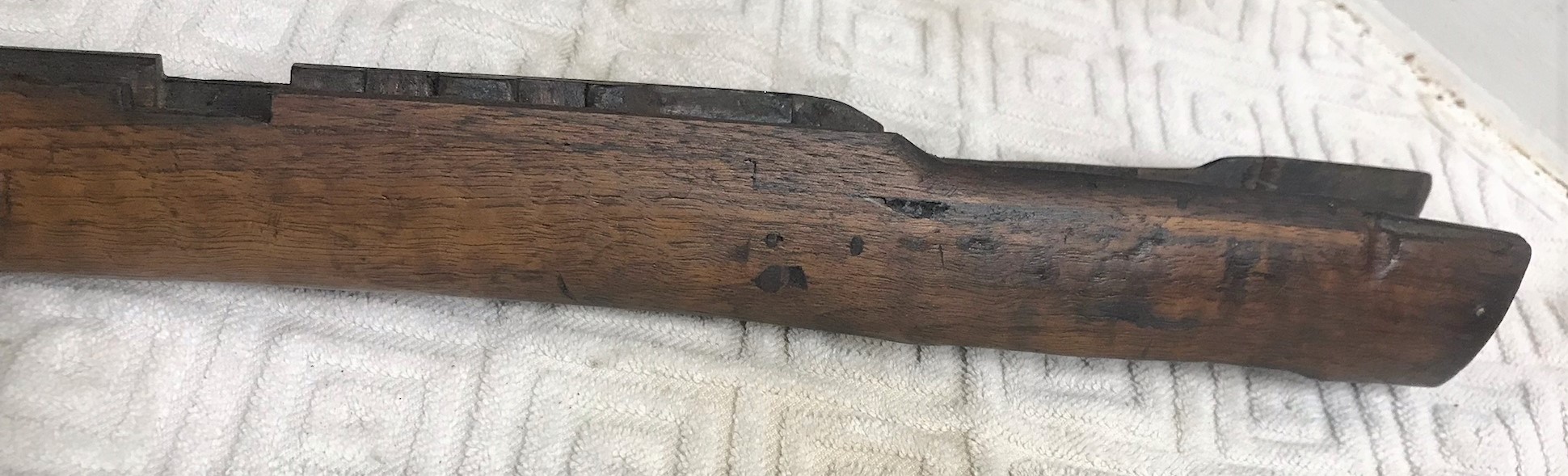

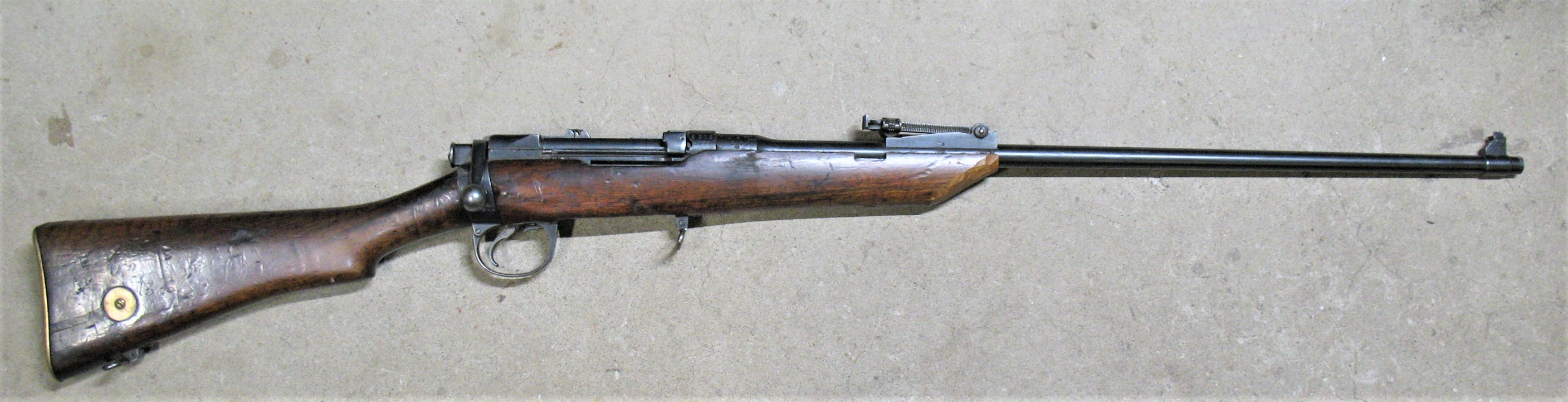

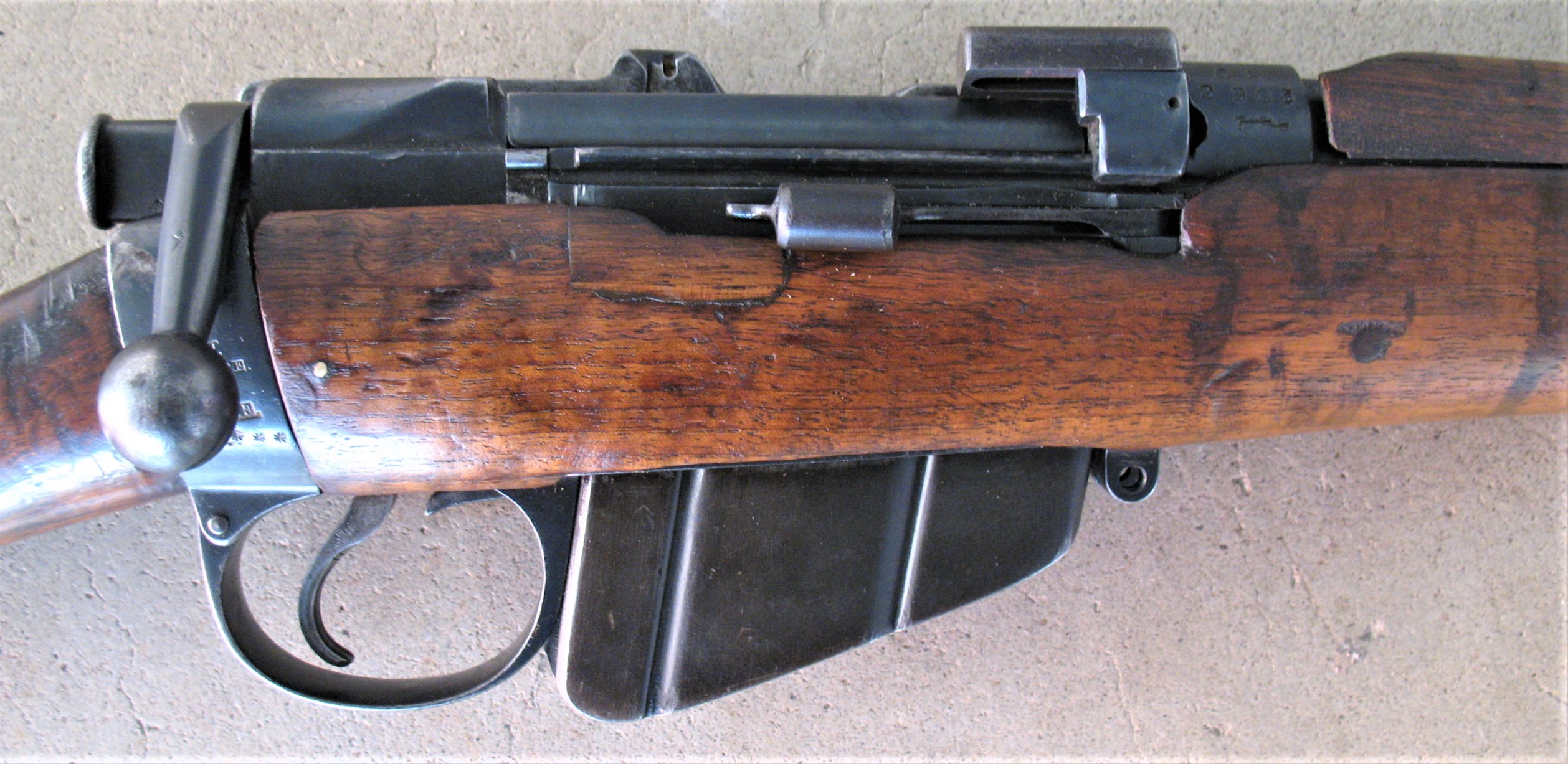

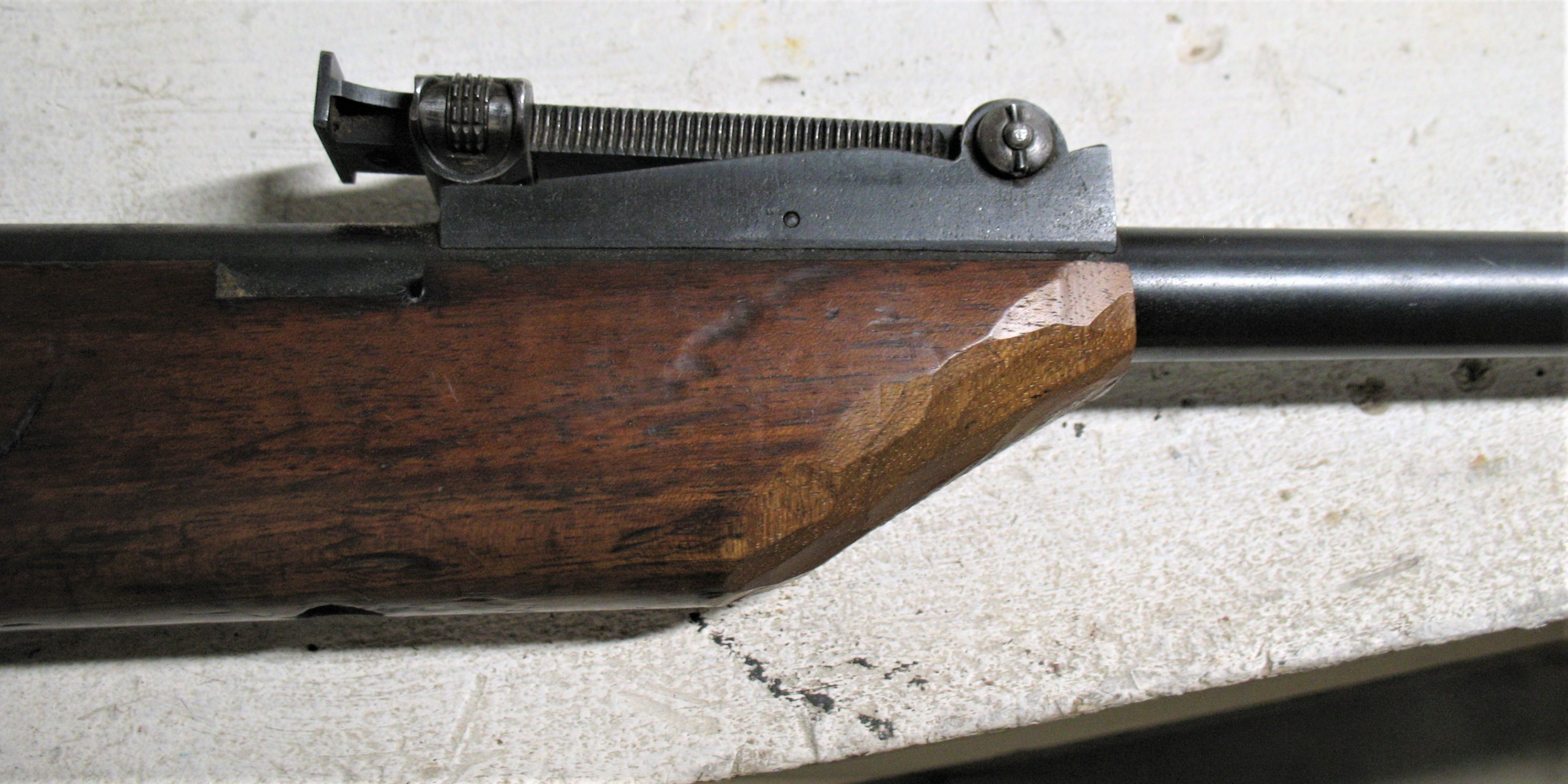

The rifle as i bought it.

Attachment 124708 Attachment 124709 Attachment 124710 Attachment 124711 Attachment 124712 Attachment 124713 Attachment 124714 Attachment 124715 Attachment 124716 Attachment 124717 Attachment 124718 Attachment 124719 Attachment 124720 Attachment 124721

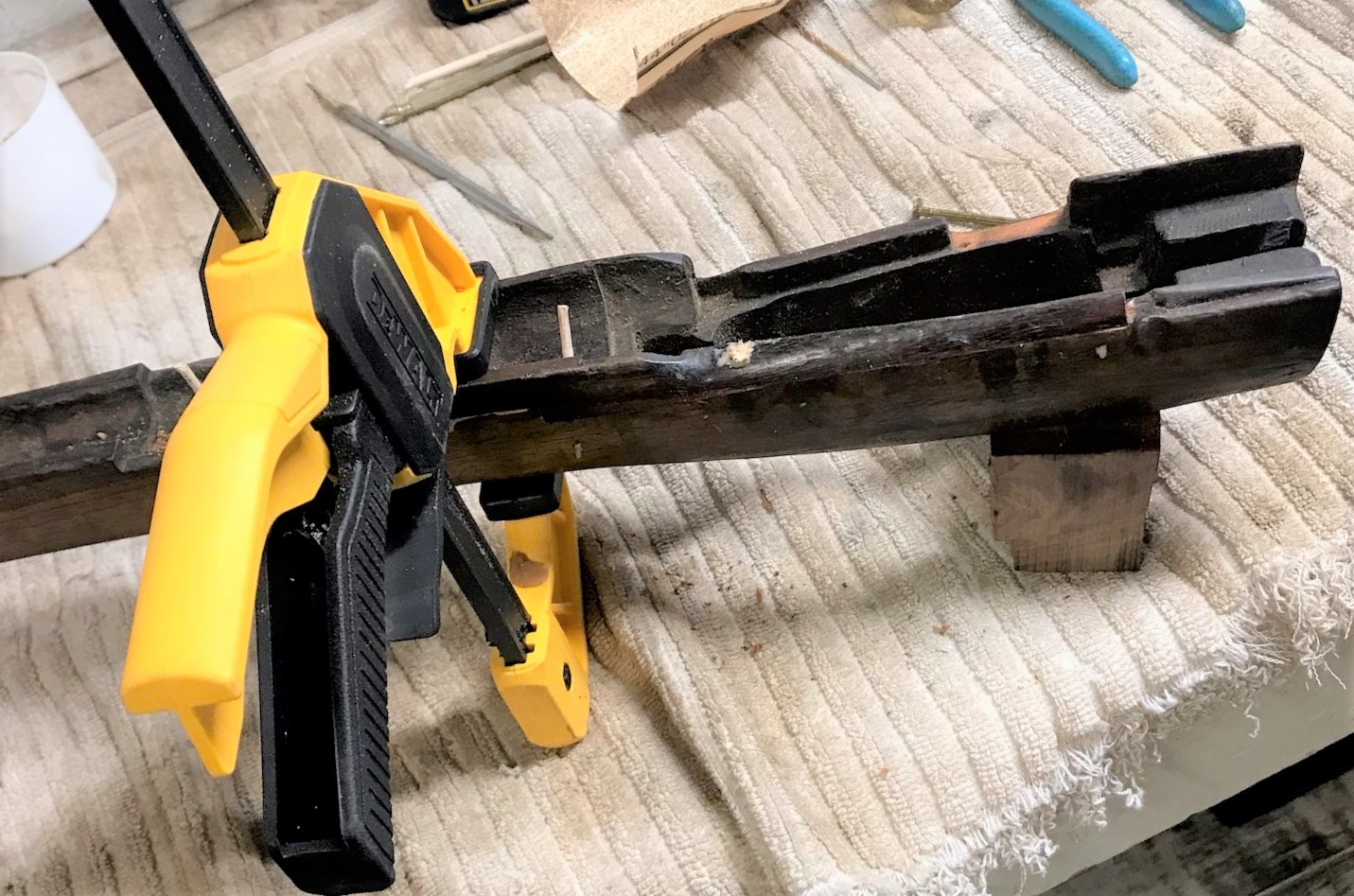

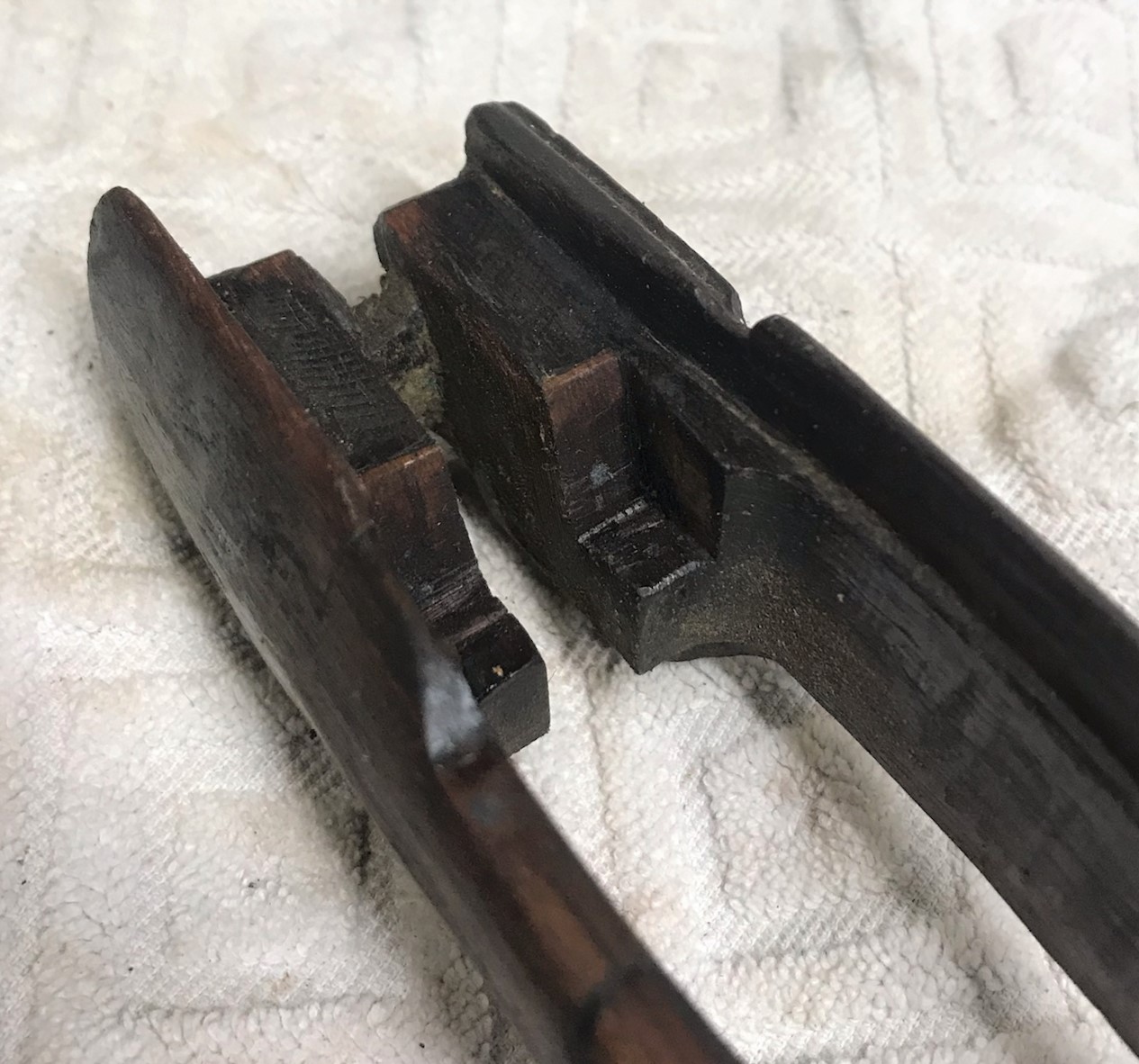

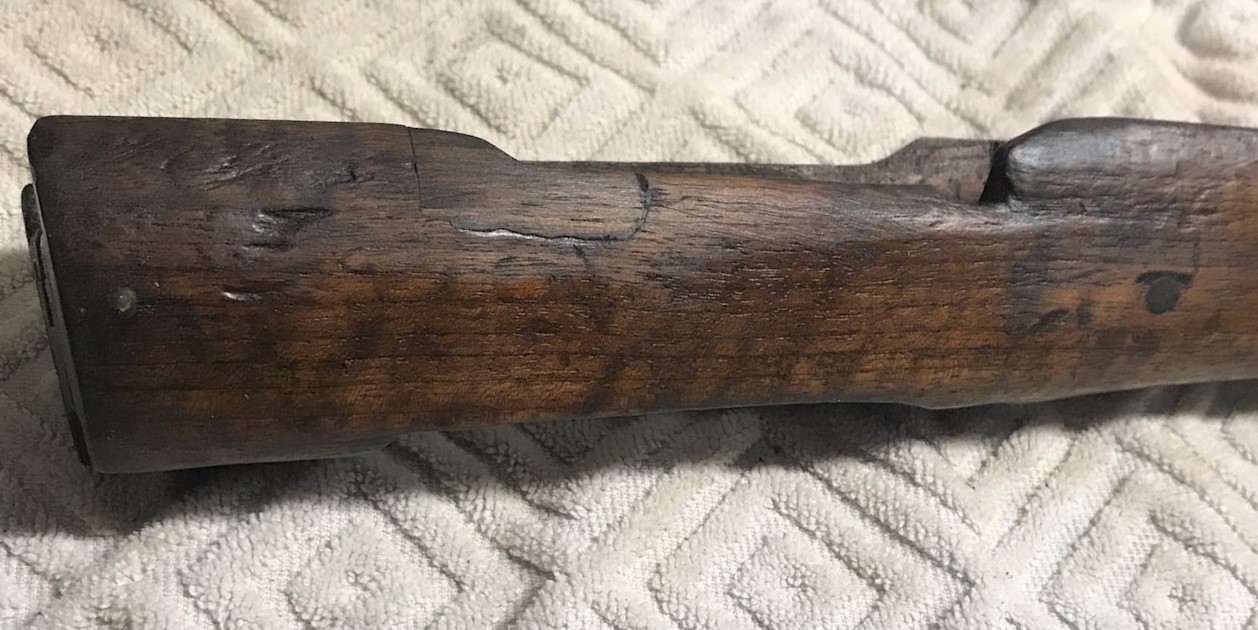

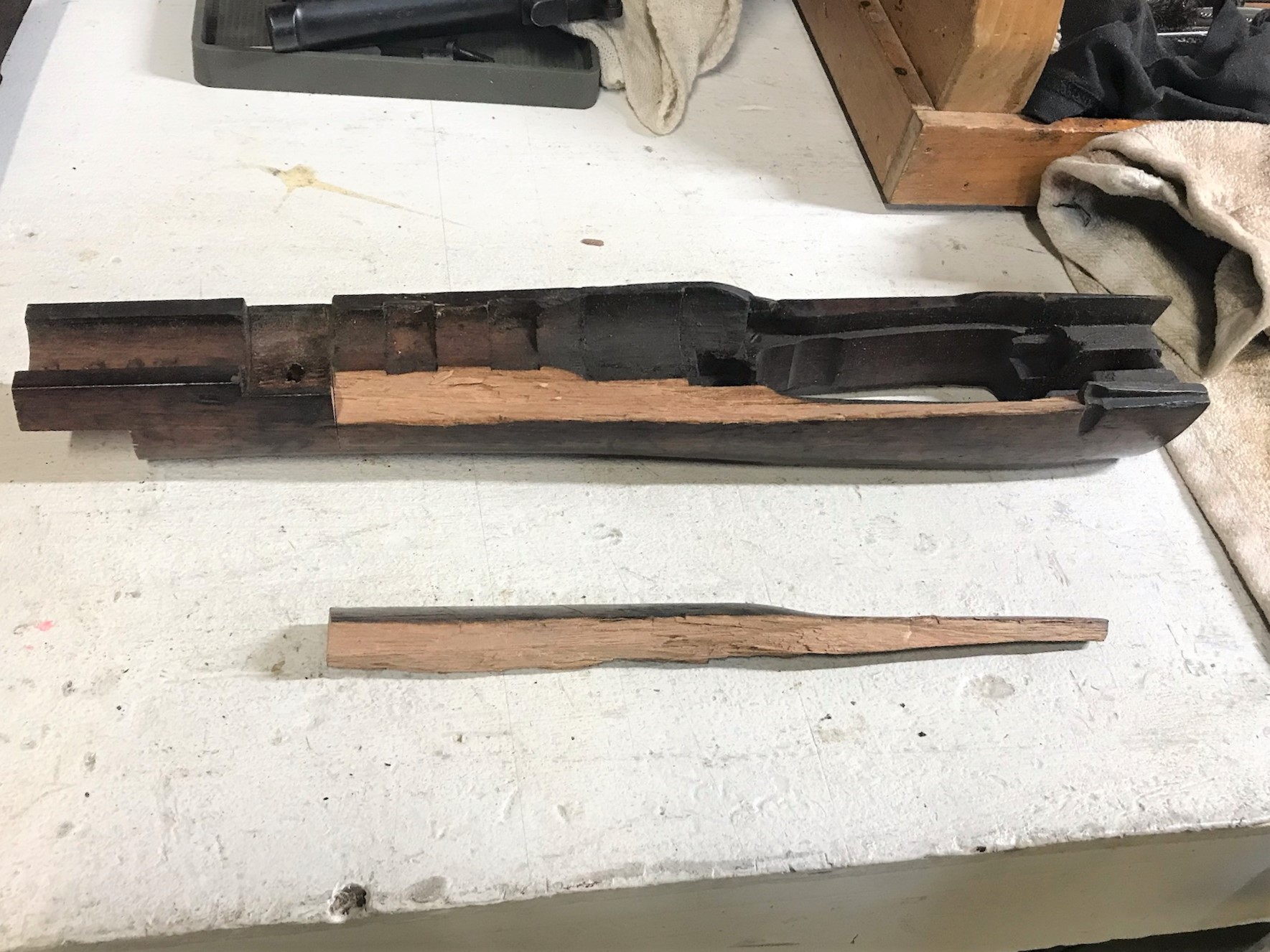

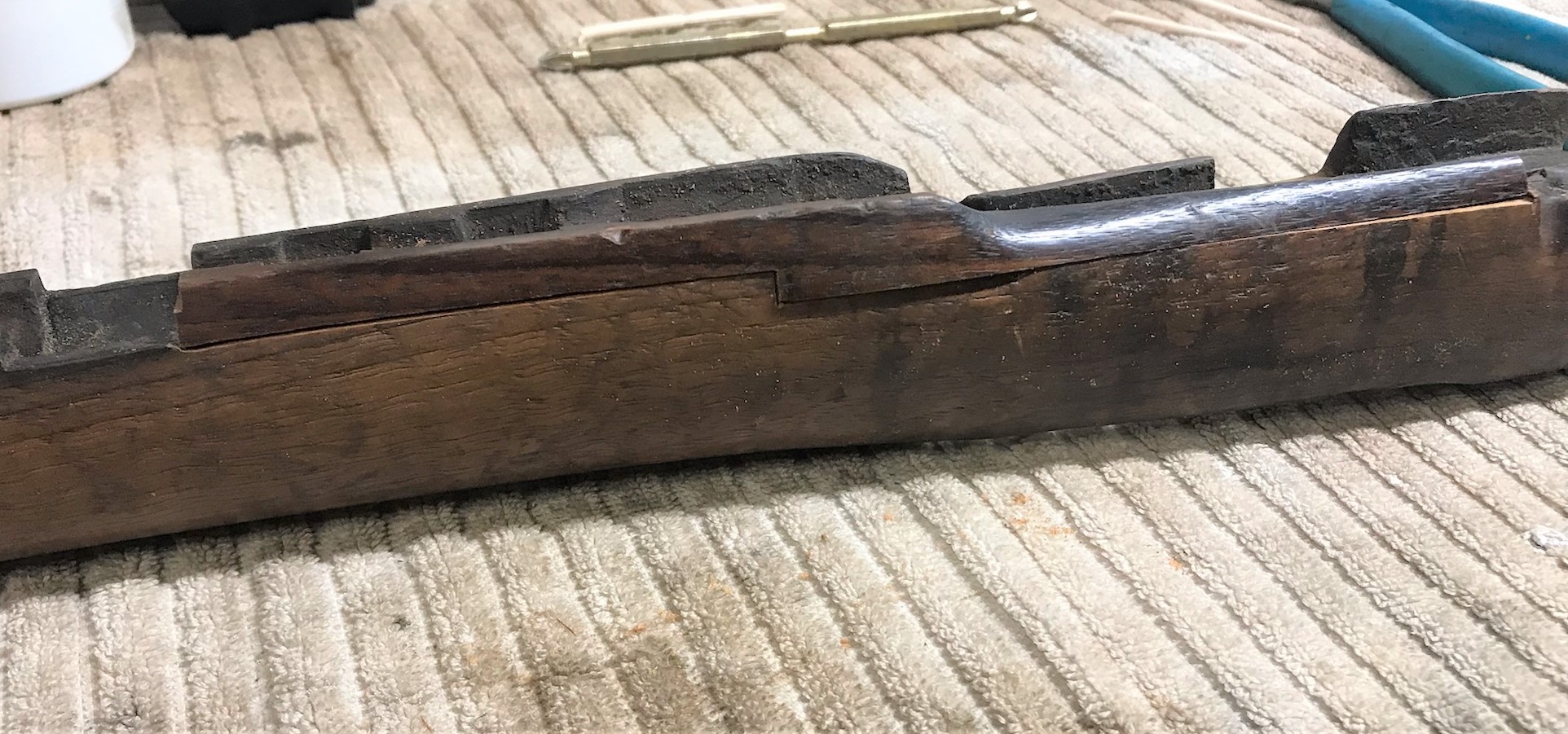

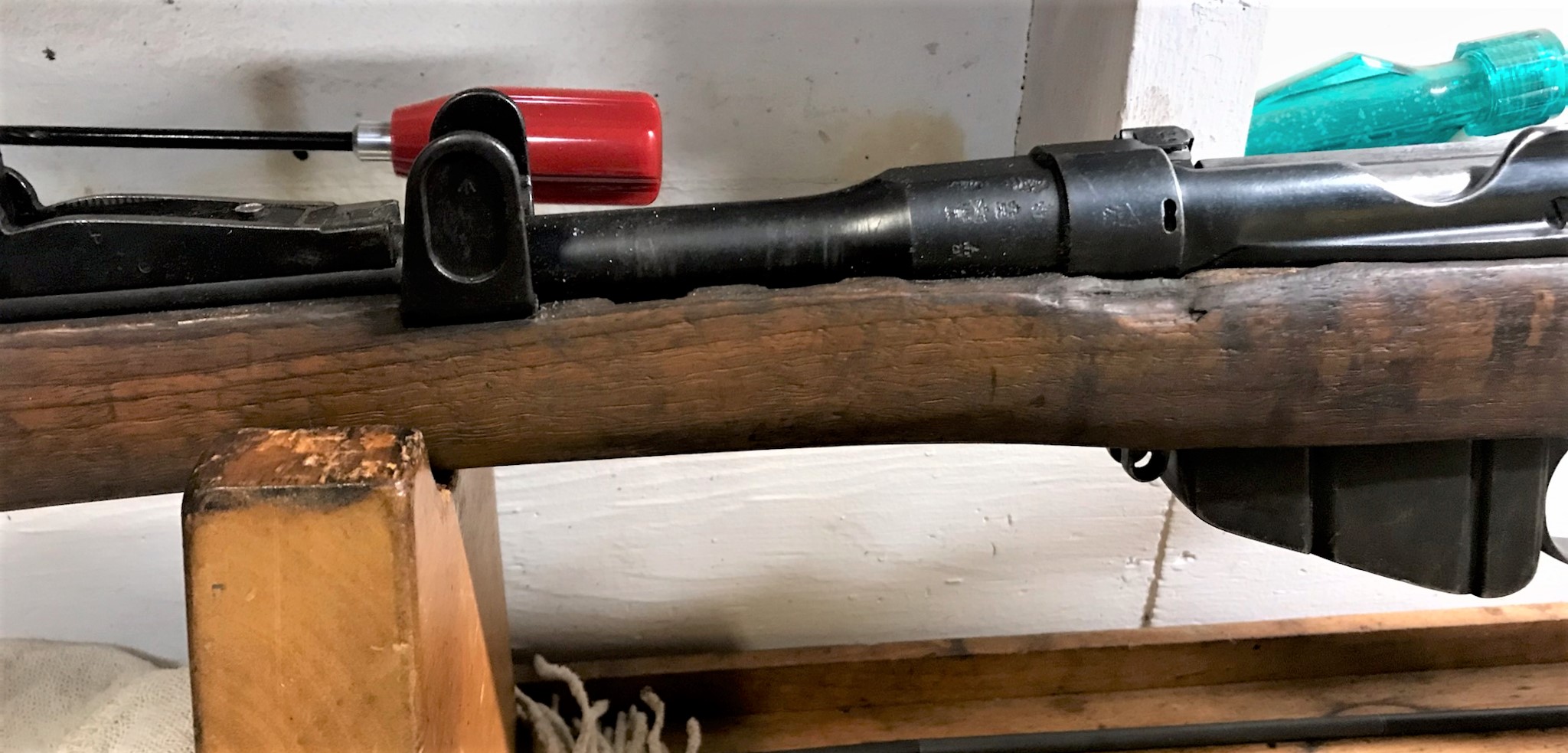

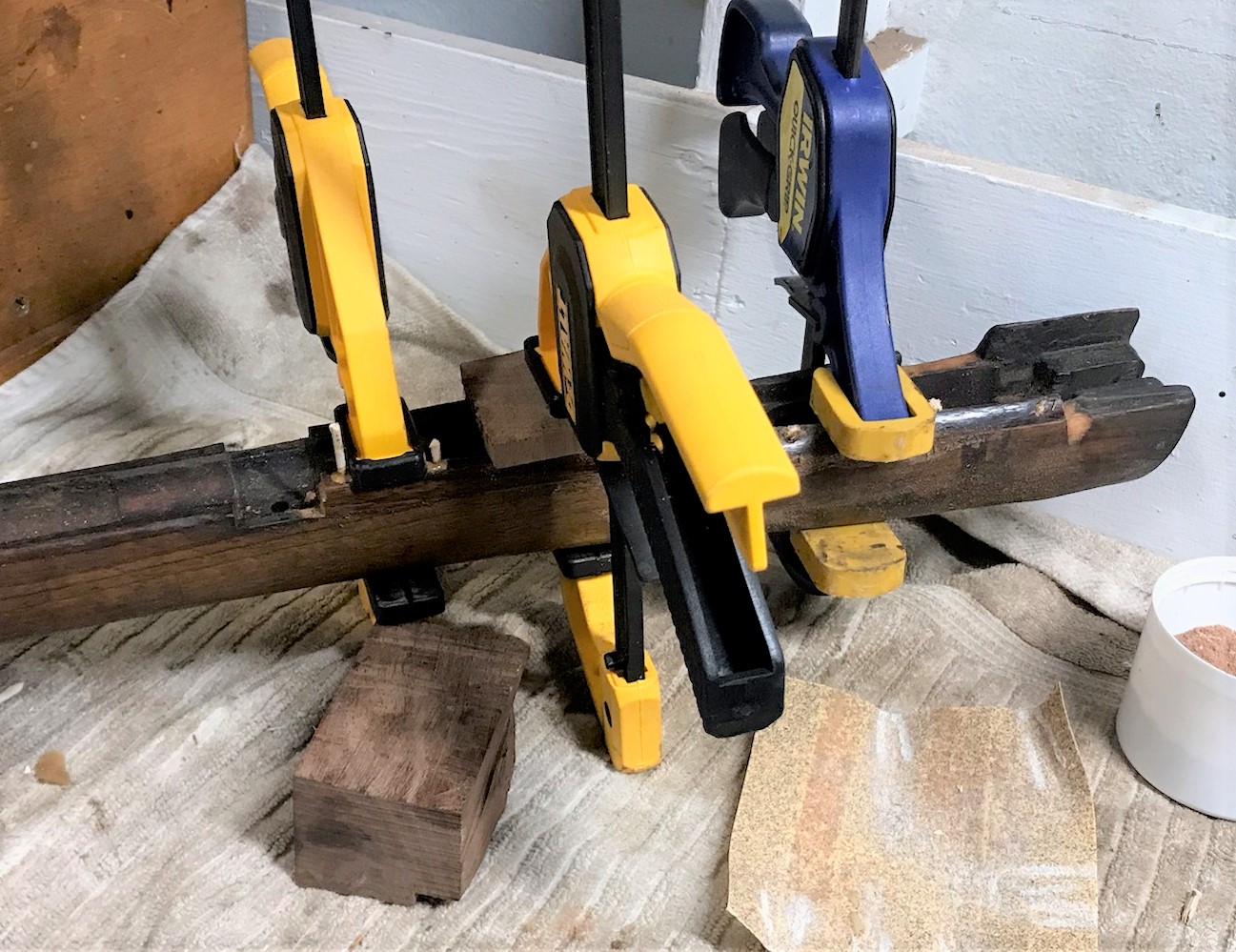

The wood repair, replaced draws, and patches.

Attachment 124722 Attachment 124723 Attachment 124724 Attachment 124725

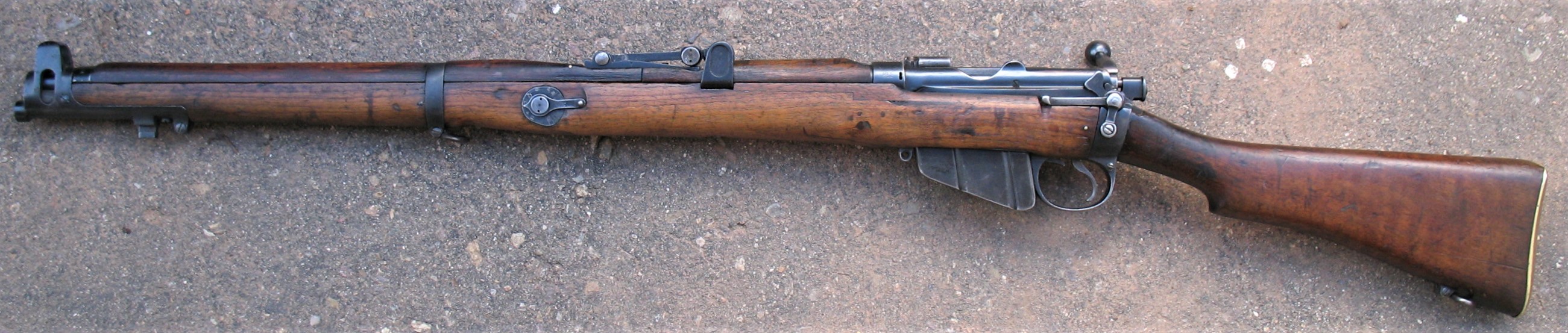

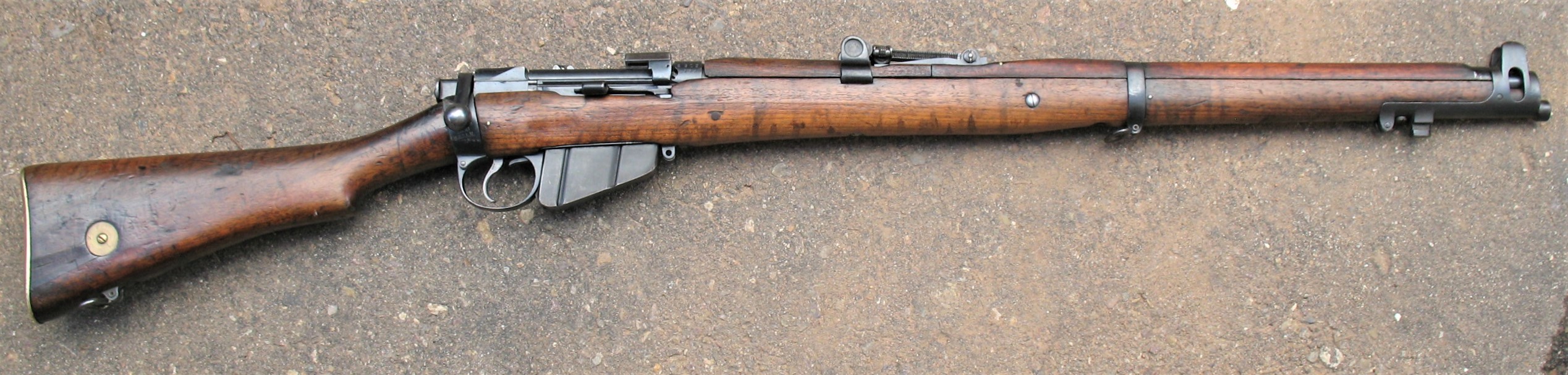

The completed rifle

Great work.
My favorite part of the whole restoration is how you save the original Mk I*** serial number.
Something is saved from the original one, even if you are the only one to know about it.... it says a lot.

I've stopped saying ''this is my last one'' too ... now i say only those that are truly worthy haha
At least you finish them... i now have 4 curent projects on my lap :madsmile:

Bloody great job!

Standing applause from me. :dancingbanana:

Well done!

Nicely done.

Excellent work!!

Very nice work.
