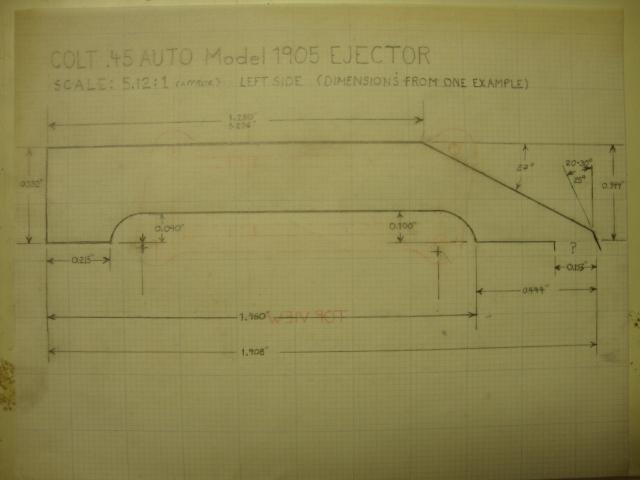

Glacier slow progress, but did a reference drawing of the left side of the ejector (minus the all important integral retaining pin!) Haven't used the drafting equipment in ages and spent lots of time looking for stuff. Including translucent paper. Thought there was a whole package about somewhere, but ended up reusing some old drawing which shows in reverse in the photo. Painful to not have a good primary datum horizontally. Reckon the vertical is easy enough, though. And the flat left face will do for a reference plane for thickness.

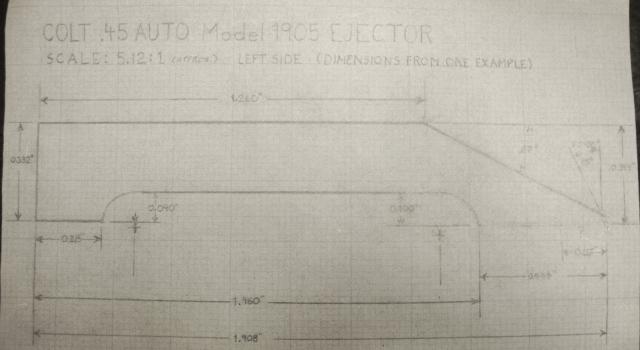

The two radii are in question. Sketch noted 0.250" rad. but the tracing seems about half that.
https://www.milsurps.com/images/impo...vyvmqiu3-1.jpg
-

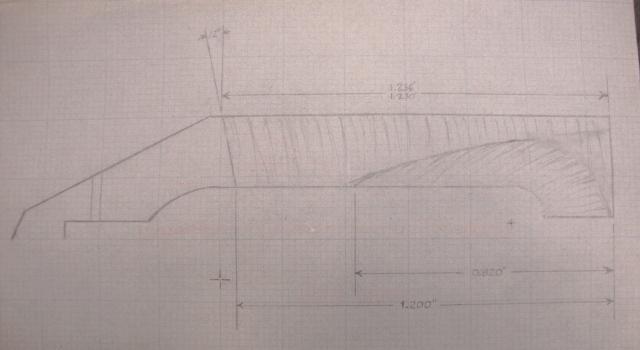

Did a "quick" RH side view and made a change to the upper dimension on the left side view. The photo on the right side seems to show much larger radii on the bottom cutout. Almost like two different parts! Curse low resolution camera phone photos. And my lack of preparation!
https://www.milsurps.com/images/impo..._zpsu2fj-1.jpg
https://www.milsurps.com/images/impo..._zpsakrv-1.jpg
