National Match 1903 rifles

The National Matches started in 1873 at the National Match range at Creedmore, Long Island. This makes this competition one of the oldest continuing sporting events in the U.S.(discounting the war years). The National Matches were moved to Camp Perry in 1907 and the 1903 replaced the Kraig in 1908. In 1909 the new classification system opened the match to all Officers. A friend recently found a document in the National Archives that approved Officers to purchase National Match rifles in 1919. These rifles were to turned in each year and rebuilt at the Springfield Arsenal, tolerances checked and reassembled for the following year. The DCM sales started in 1921 by congress after pressure form the thousands of Doughboys who learned how to shoot in the Great War. The Military supported this effort. Most people then assumed the National Match rifle program started up in 1921. However, we know the program was alive and well in 1919 and 1920 and suspect that National Match rifles were also available prior to 1917.

So then the question is, how to you tell a National Match rifle 1920 and earlier since they had no star gauge or inspection number? Thanks to John Beard and other seasoned collectors this is what I am passing on the the forum. National Match rifles appear in a serial number block....not always as there are exceptions. NM rifles have a finely checkered buttplate, no 2850 yard notch, in-the-white bolt with a swept handle and in 1919 and 20, a serrated trigger. Serrated triggers were started circa 1910 and replaced by smooth trigger with the Mark I and lasted until 1923 when serrated triggers were resumed.....Only NM rifles had the serrated trigger until 1923. Early rifles also were treated with Asphaltum. Asphaltum was applied at Springfield Armory and was part of the original finish. It usually (not always) appears on the barrel and upper band, floorplate, front and rear sights and trigger guard. Be especially careful not to use aggressive solvents on these parts as they will remove part of the original finish!

Anyone having additional information by all means, chime in.

I might just throw in some pictures. First, a 1920 SA NM rifle in the rather often found 1.181.xxx serial block.

Second, a rarer pre WWI SA NM rifle from 1914, which means it was made for the 1915 NM. Rifle was confirmed to be NM by John Beard.

And finally in a third post, one of the RIA NM rifles from 1919.

I forgot, therefore please forgive me putting a fourth post in here ... bolt handle comparison. Top is pre WWI SA NM, middle is RIA 1919 NM, bottom is SA post WWI NM.

My 1920 is SN 1180773 and the one that got away was 1182100 and your falls nearly exactly between. All beauties!!

My "jewel" is my 1916 National Match, 605178. I also have a 1919 National Match, 1,092,290.

Two more characteristics I have noticed:

1) The "rib" of the follower is polished

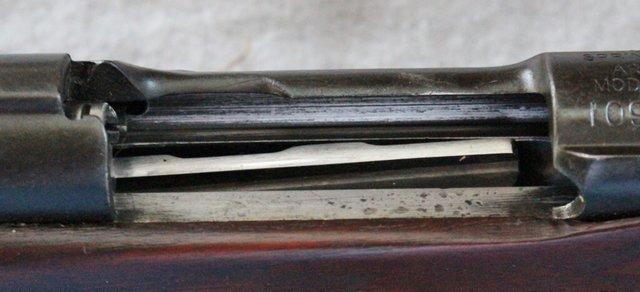

2) The "raceways" of the receiver are also in the white or polished.

There ya go! More good stuff. Thanks RTL!

If you ask John, he has very detailed information on the pre WWI NM rifles .. probably he would share it with you?

Rick, that SA 1919 NM rifle would be very great to have! If you ever decide to part, I'd love to put it right next to the "unwanted" RIA 1919 NM. I think they would make a great couple! Of course I wouldn't mind to have the 1916 NM rifle too, just to make sure that I somewhen have every year.

And the other Rick, the Thread Starter, please also post pictures of your 1920 NM rifle!

Quote:

---

Originally Posted by Promo

If you ask John, he has very detailed information on the pre WWI NM rifles .. probably he would share it with you?

Rick, that SA 1919 NM rifle would be very great to have! If you ever decide to part, I'd love to put it right next to the "unwanted" RIA 1919 NM. I think they would make a great couple! Of course I wouldn't mind to have the 1916 NM rifle too, just to make sure that I somewhen have every year.

And the other Rick, the Thread Starter, please also post pictures of your 1920 NM rifle!

---

Promo........I did, go here, Rick. https://www.milsurps.com/showthread.php?t=61210

Promo, the 1916 NM is one of my "Only from my cold, head hands" collection. However, I admit the 1919 SA NM may be another story if the price is right ... :)

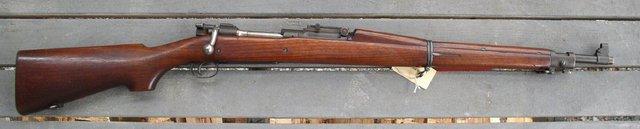

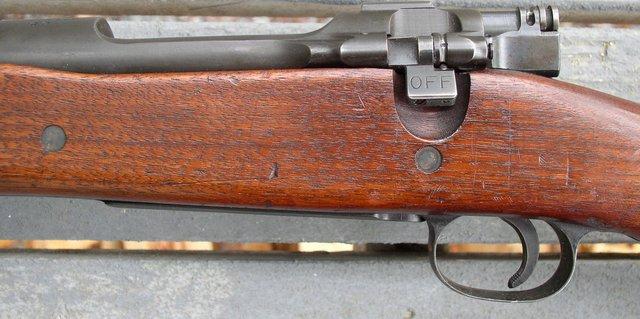

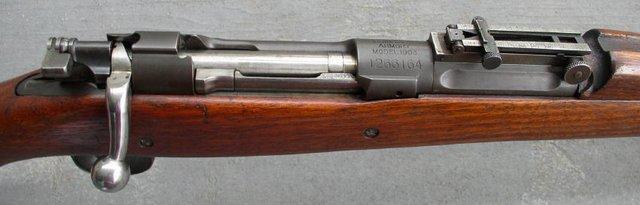

I also have another NM which I forgot to mention for purposes of this discussion - a 1924. It is serial number 1,266,164 and it is a bit of an anomaly. It is mentioned in SRS:

1266164NM 061426DCM RIFLE SALES 1922-42

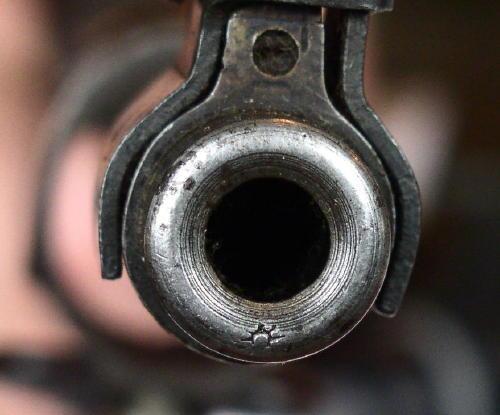

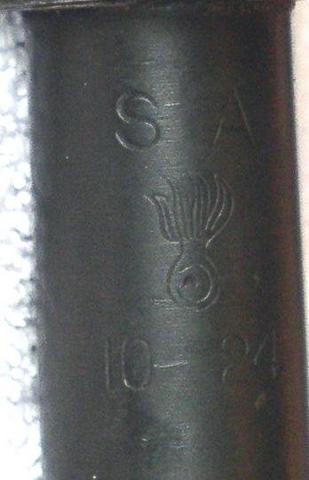

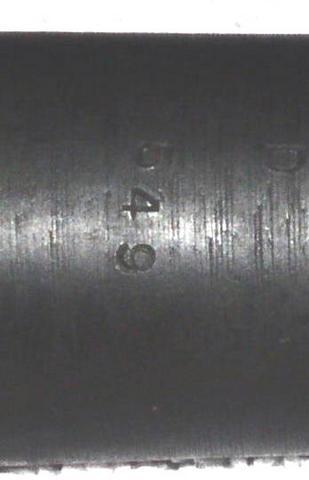

As you can see, it wasn't sold until mid-1926. It has a correct 10-24 SA barrel with Star Gauge stamp and SG registration number. It also collected a Type B stock and a J6 bolt. The stock has no discernible markings and the bolt is not etched with the serial number and has the modified cocking piece without the usual "mushroom" at the back. I admit I don't know if it "came" this way or was modified by the original owner. The characteristics are those of a National Match.

https://www.milsurps.com/images/impo...standard-1.jpg

http://www.milsurps.com/images/impor...standard-1.jpg

https://www.milsurps.com/images/impo...standard-2.jpg

https://www.milsurps.com/images/impo...standard-3.jpg

https://www.milsurps.com/images/impo...standard-4.jpg

https://www.milsurps.com/images/impo...standard-5.jpg

http://www.milsurps.com/images/impor...standard-2.jpg

https://www.milsurps.com/images/impo...standard-6.jpg

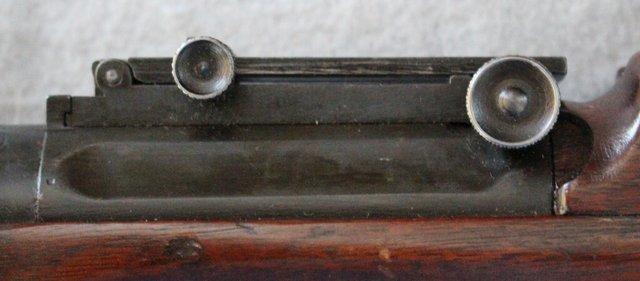

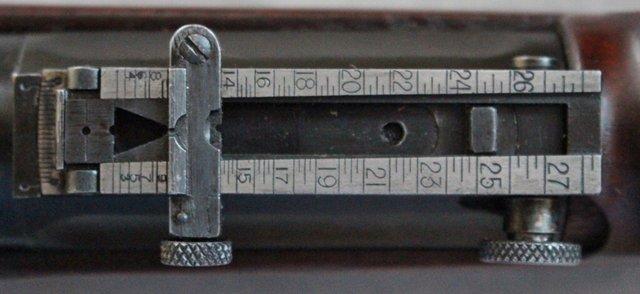

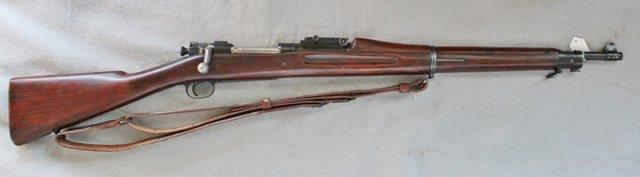

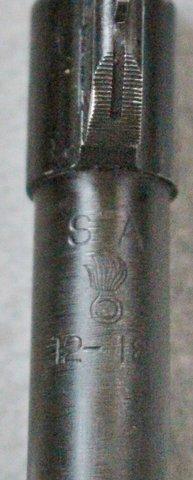

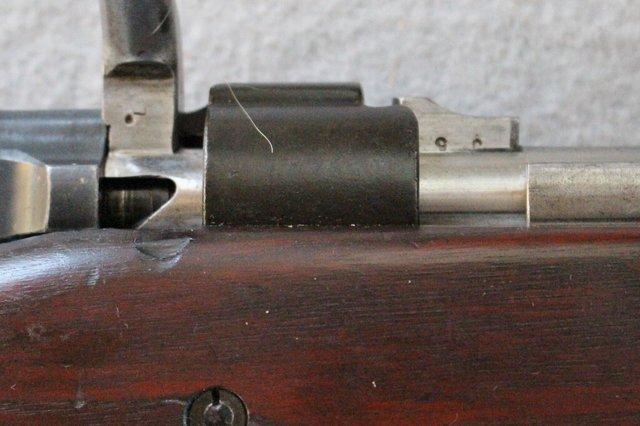

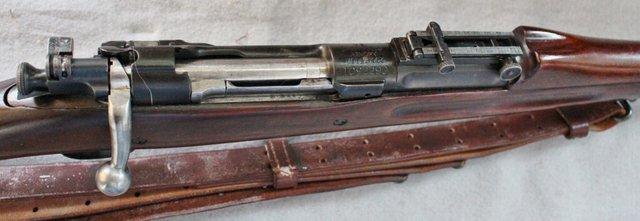

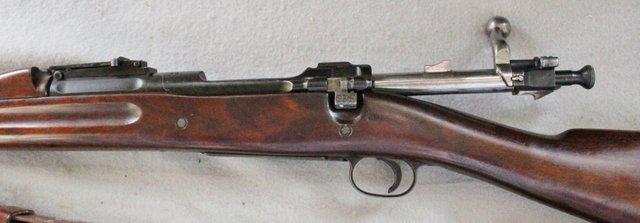

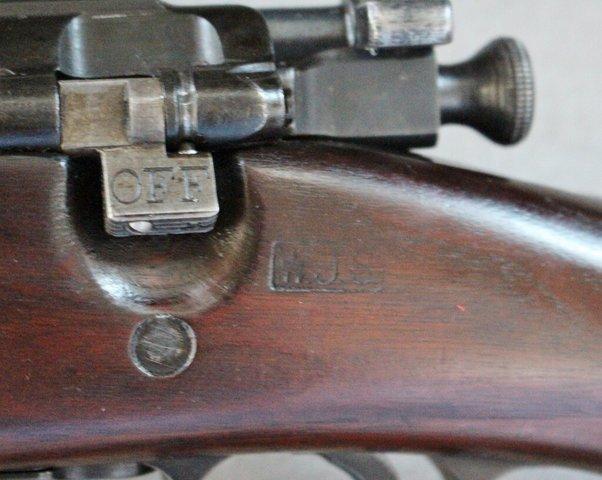

For "the good of the order", here are some pictures of my 1919 SA NM:

https://www.milsurps.com/images/impo...standard-7.jpg

https://www.milsurps.com/images/impo...standard-8.jpg

https://www.milsurps.com/images/impo...standard-9.jpg

https://www.milsurps.com/images/impo...tandard-10.jpg

https://www.milsurps.com/images/impo...tandard-11.jpg

https://www.milsurps.com/images/impo...tandard-12.jpg

https://www.milsurps.com/images/impo...tandard-13.jpg

https://www.milsurps.com/images/impo...tandard-14.jpg

https://www.milsurps.com/images/impo...tandard-15.jpg

[IMG]s.52photobucket.[/IMG] 1919 NM 1903s RIA 387883 and SA 1094096

My 1919 NM rifles.[IMG]

I have an original P. J. O'Hare brass NM muzzle cover for an '03 if anyone's interested, PM me.

Quote:

---

Moderator Edit: Please don't post advertisements to buy or sell items in our general informational forums, in violation of our terms of service agreement.

You should be using our WTS/WTT/WTB Forums.

You can learn how to use it here..

How do I use the classifieds system to buy and sell items?

Thanks... :cheers:

Regards,
Doug

---

[QUOTE=sakorick;405711A friend recently found a document in the National Archives that approved Officers to purchase National Match rifles in 1919. These rifles were to turned in each year and rebuilt at the Springfield Arsenal, tolerances checked and reassembled for the following year. The DCM sales started in 1921 by congress after pressure form the thousands of Doughboys who learned how to shoot in the Great War. The Military supported this effort. Most people then assumed the National Match rifle program started up in 1921. However, we know the program was alive and well in 1919 and 1920 and suspect that National Match rifles were also available prior to 1917.QUOTE]

I wanted to add something to this....

July 29, 1919 Captain A. Duncan (Assistant Ord. Officer) sent an inquiry to the Office of Chief of Ordnance stating the following...

"1. Par. 11, Bulletin 18, War Department, May 19, 1919, provides for the 'issue or sale on the grounds' of star gauged and targeted rifles to individuals participating in the matches.

2. Request information as to whether or not revolvers and pistols may be sold by the ordnance officer of the National Matches to individuals participating in the 1919 National Matches."

By order of the Chief of Ordnance a memo was sent back from Col. L.M. Fuller authorizing both sales of star gauged and targeted rifles, revolvers and pistols to individuals participating in the National Matches. It does not specifically specify this being limited to only officers only.

In this same folder of a string of documentation outlined how many civilians may participate on National Guard State teams. So it may be possible that civilians were eligible to participate in sales of rifles, pistols and revolvers if they were participants in the 1919 National Matches.

If someone has a copy of that specific War Department Bulletin, it may have the specific outlines where it specifies officers only. However this string of correspondence alludes that any participates in the National Matches may be sold rifles, pistols and revolvers by the Assistant Ordnance Officer at the National Matches.

That's very interesting. So it would seem a few lucky civilians got the jump on congress at least two years ahead of everyone else. I wonder if anyone has compiled a list of National Match serial numbers by year? John Beard perhaps?

Quote:

---

Originally Posted by sakorick

That's very interesting. So it would seem a few lucky civilians got the jump on congress at least two years ahead of everyone else. I wonder if anyone has compiled a list of National Match serial numbers by year? John Beard perhaps?

---

It's definitely possible. But I can't say it with absolutely certainty, there's always the possibility that WD Bulletin is very specific on sales only to officers. But from what I found it at NARA, it does not seem limited to officers. Civilians being eligible is an opinion based on the memo and later correspondence discussing the number of civilians eligible to compete on State NG teams. I do not know if there were civilian only teams. Someone else may be able to answer that such as John Beard.

The majority of the National Match SNs I found in the 1919-1920 era were documented to NM Ammo testing, most were already known with a few new ones. I don't recall finding any sales documents. Not saying they didn't happen or the files don't exist, I just didn't come across any.

Hey Rick I sent you a message on FB. Seems I have a rifle about 1000 away from your 605k NM

Been gone all day (birthday) - will try to answer and look tomorrow morning. Thanks!

Well Happy Birthday!
