A genuine No.4 Mk1 "T" that is not marked T or TR?

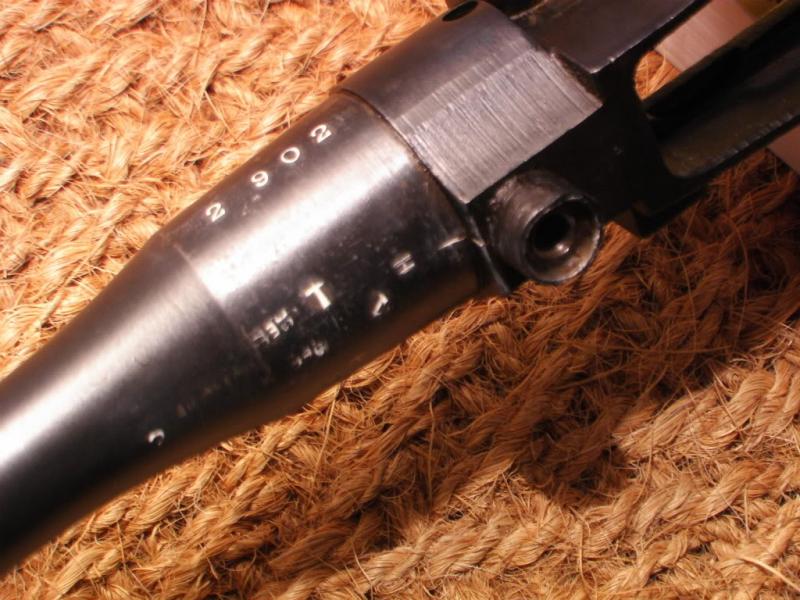

Hello all! I'm new to the forum and Lee-Enfields. I have recently aquired my first No.4 Mk1. The rifle is marked on the butt socket M47 1943 AQ2902. The bolt serial number is also AQ2902. As the title of the post indicates this rifle is not marked TR nor does it have a T marked anywhere on it. I understand that this makes it highly suspect as a genuine sniper rifle. The strange part is the buttstock (with cheek piece) is clearly stamped S 51. I firmly believe that it has been attached to this rifle since day one. Also, the small 1/8" S is stamped on the right side, behind the receiver ring, just above the wood. The rifle has properly staked, matching finish, scope mounting pads, and scope mount with a vintage Weaver K4 scope mounted.
Though the rifle looks like it's been well used, it still shot better than 1.25 MOA with the S&B ball ammo I used.This rifle was a real pleasure to shoot so I'm pleased with it no matter what. In fact, it is more accurate than either of my two WWII era Remington 1903's. What are the chances that this rifle actually is a sniper rifle?
Is My Lee Enfield Sniper Rifle a Fake--by Terry Warner
In the Interest of helping here is a good article based on one than one good book-several in fact.
So here you go---
This article is from;
Terry Warners article--
IS MY LEE ENFIELD SNIPER RIFLE A FAKE!
at
Spotting a fake sniper rifle
Besides looking for both ‘T’ and ‘TR’, one very simple test is to examine the screw heads on the pads. Staking the end of the slot with a pin punch is an uncomplicated way to lock a screw head, and was listed in the armourer’s orders in March 1946. More than one stake per screw head, indicates the pad has been removed or replaced, either for repair or overhaul. A single stake mark suggests a rifle is newly converted, was not used very much, or left British service prior to 1946. The front pad takes the worst beating of the two.
To summarize Laidler, the first guideline is to examine the left side of the receiver. Read the model number. All British and Savage-made sniper rifles were built on No.4 Mk1 actions (“number four mark one”). Only wartime dated Long Branch No.4 Mk1* (“number four mark one star”) receivers were converted to sniper rifles. If a rifle from two British plants was more accurate than average, it was set aside for No.4(T) conversion. Birmingham Small Arms’ plant in Shirley stamped their ‘M47C’ on the butt socket. Royal Ordnance Factory in Maltby stamped ‘ROFM’ ‘RM’ or ‘M’ on the sidewall or on the butt socket. The serial number ranges are listed in Stratton.
There was a continual reduction of sniper rifles in British service after 1945 until the 1960’s. Those unsuited for upgrade programs or surplus were sold off. Remaining rifles were converted to L42 rifles in 7.62 NATO. Therefore, a British rifle has a storybook of markings establishing its history. Canadian issued rifles usually do not have the characteristic British speckling of stamps and punches. The collector must educate himself on the nuances of each stamp and punch. They are not random, but tell a lengthy and detailed story beyond the intent of this article.
Still following Laidler, the second guideline is to look for a large ‘TR’ stamped on the left of the butt socket and a letter ‘T’ on the flat of the left receiver sidewall after the model number. The fonts are distinctive. The ‘TR’ was applied by inspectors at the plant to indicate the rifle grouped better than others. It was segregated and shipped to Holland and Holland. The new arrivals were inspected again, and those that met a higher standard were converted. Some rejected ‘TR’ rifles may be in circulation without other sniper marks. The ‘T’ signified a No.32 telescope had been fitted, and the combination met all inspections. Without a ‘T’ marking, the rifle could not have been converted at Holland and Holland or Long Branch, except for defined batches of rifles converted before the marking procedures were settled.
The third guideline is to look for a ¼ inch ‘S51’ stamped on the bottom of the handgrip of the butt stock. This is unique to Holland and Holland. The standard length butt was a Normal marked with a letter ‘N’ on the top near the butt plate. There will be a check rest with a scalloped front end screwed to the comb. There are some variations in the finished shape and centering of the cheek rest. Some rifles have it more upright while others tend to have the rest rolled to either side. Unbuggered screw heads on slotted screws are an encouraging sign. Look for a stamped telescope number on the front edge of the butt, just before butt socket. If possible (but I strongly advise against amateurs touching any tool to a collectable rifle), unscrew the butt and look on the wood for the rifle serial number just in front of the scope number.
Look at the stock, look for a screw from one side of the wood to the other just in front of the receiver ring. This is the dreaded Ishapore screw. The Indians modified every No.4 rifle they found with this strengthening screw. Nobody else worried about such things. Although, India did use unknown numbers of No.4(T) rifles, but the references give no indication of Indian markings.
Look on the front right side of the receiver just behind the receiver ring. A genuine Holland and Holland conversion will have a 1/8 inch letter ‘S’ close to the wood line. I cannot comment if Long Branch is marked as such.
If there is an angular sling swivel on the takedown screw in front of the magazine, this is a sign, A) the rifle was either produced after September 1944, B) it left British military sometime near then, or C) someone has ‘improved’ the rifle. A considerable number of civilian Parker Hale target shooting swivels change hands on the internet, regardless of appropriateness for the year of No.4(T) production.
Look at the sights. Are both surfaces on the front sight blade, which face the shooter, undercut? Apparently some snipers found the normal slope reflected back on their eyes. I wouldn’t worry if it is not there. It may be a peculiarity of British unit-level conversions. The back sight should be the machined early Mk.I style, without the 90 degree battle sight. It should be completely black with no exposed metal surfaces. One sign the rifle has been used by someone knowledgeable will be if the underside is rounded out. Smart armourers made this modification (without permission) so their sniper comrades could remove the rifle bolt without removing the scope and flipping up the back sight.
The next to last item(s) are the accessories according to the equipment checklists. Every well-dressed No.4(T) has: a No.15 wooden transport chest; a No.8 scope case and leather strap or No.8 MK.2 rubberized canvas sleeve; a canvas protective case that is too small for a rifle with scope; a Scout Regiment ‘pirate-style’ draw tube telescope; a small tin cleaning kit; and a World War I dated American M1907 leather sling. Each item is a study in itself. Generally speaking, collectors look for matching numbers to their rifle and telescope, and for example, a Broad Arrow on the sling. Any No.8 case or sleeve, and surprisingly the can’s strap, are highly sought after, followed by the No.15 chest. The Canadian C No.7 .22 rifle chest is similar, but not tall enough by 2 inches.
The final item from Laidler’s books is the No.32 telescope and mounting bracket or base. If the rifle offered does not have a No.32 scope, be skeptical. Remember, the Century rifles are sold without brackets or scopes. If there is a scope, compare its number to the stamped number on the butt and the rifle number to the one on the bracket. If they match, Bingo! We have a winner. If not, don’t despair. Most No.4(T)s sold for surplus in Canada have mismatched numbers. The dealers stored the rifles unheated and the scopes heated; most salesmen or shippers didn’t know or care to match them up. It is not unreasonable to suspect a similar tale elsewhere.
In broad terms, a 1941, ‘42 or ‘43 rifle should have a MK1 scope; rifles made in ’43 and ‘44 should have a MK2 scope, and rifles made in ‘45 a MK3 or C No.67 scope (also known as a Mk4). Canadian-made REL scopes restart serial numbers with each mark change. Only a few hundred REL scopes of each mark were ever produced, so overall they are exceedingly scarce. An REL scope on a British rifle or a Long Branch rifle with British scope should be approached skeptically. The best British MK3 scopes were kept for the 7.62 conversion program, as earlier Marks were no longer needed. Some good condition MK3 scopes were sold off.
There are a number of replica scope brackets on the market. US companies like SARCO and The Sportsman’s Guide sell fake sniper rifle mounts. It has an obvious two-faceted rear face. The author succumbed to a testosterone race and bought a not-so-cleared explained replica bracket for 50% more than the retailer was asking. On the other extreme are brackets made in the UK for Roger Payne. His products are high quality and esthetically close to the original, but still distinctive to the knowledgeable collector.
The flat side will be flat, not sharply angled. Look for a round radius on the rear “arm” of the bracket and a short vertical rise from the rear finger knob. The originals were cast iron, with limited machining for the scope contact surfaces, the ring halves, and the bearing surfaces at the pads. Postwar, the British rifles stamped the rifle serial number on the rear leg. Long Branch serialized the bracket to the rifle, centered near the top edge.
Canadian knobs have a small depression in their centre. The British knobs are smooth surfaced inside. There are two styles of split washers which are not interchangeable.
Laidler suggests if the pads have tiny Broad Arrow marks, they are replacement parts from authorized sources. However, there are replica No.4(T) parts kits on the market. One internet seller includes drills, taps and screws with a set of pads. Hardware is one thing, talent is another. The key ingredient in the Holland and Holland conversion was two operators and three machines using all the same jigs. They converted rifles on a production line of one rifle after another. Every faker is trying to replicate that unique set of conditions. Without a good knowledge of the factors, it is unlikely to get the pads properly centered and aligned over the bore. A fake rifle and pads are unlikely to be aligned to the natural centre of the telescope’s adjustment.
---------------------------------
Having read all that you just might have something resembling the Century fake snipers that were accurate rifles set aside at the factory for conversion to -T- status but never done. They are not LE sniper rifles. But from the lacking of a few details it seems not likely that your rifle was a century-sale. It could be an older T rifle -read the early part of the above sniper story-- also is the scope pad serial numbered to the receiver?
If it is good. If it is not and the screws are staked you have a parts gun in all likelihood. If the scope mount is not serialled to the gun you have a fake. BUT IT IS ALL IN QUESTION YOU NEED TO POST US SOME GOOD PICTURES OF--
a)receiver left wall--good resolution pic
b)left butt socket wall -good pic
c) wood markings on butt and foreend
d) -S- stamp in the receiver ring-these have been faked in the past.
e) close up of the scope pads and screws
f) close up of the scope mounts,screws and stamps (numbers)
g) closeup of the rear sight
Is My Lee Enfield Sniper Rifle a Fake--by Terry Warner
In the Interest of helping here is a good article based on one than one good book-several in fact.
So here you go---
This article is from;
Terry Warners article--
IS MY LEE ENFIELD SNIPER RIFLE A FAKE!
at
Spotting a fake sniper rifle
Besides looking for both ‘T’ and ‘TR’, one very simple test is to examine the screw heads on the pads. Staking the end of the slot with a pin punch is an uncomplicated way to lock a screw head, and was listed in the armourer’s orders in March 1946. More than one stake per screw head, indicates the pad has been removed or replaced, either for repair or overhaul. A single stake mark suggests a rifle is newly converted, was not used very much, or left British service prior to 1946. The front pad takes the worst beating of the two.
To summarize Laidler, the first guideline is to examine the left side of the receiver. Read the model number. All British and Savage-made sniper rifles were built on No.4 Mk1 actions (“number four mark one”). Only wartime dated Long Branch No.4 Mk1* (“number four mark one star”) receivers were converted to sniper rifles. If a rifle from two British plants was more accurate than average, it was set aside for No.4(T) conversion. Birmingham Small Arms’ plant in Shirley stamped their ‘M47C’ on the butt socket. Royal Ordnance Factory in Maltby stamped ‘ROFM’ ‘RM’ or ‘M’ on the sidewall or on the butt socket. The serial number ranges are listed in Stratton.
There was a continual reduction of sniper rifles in British service after 1945 until the 1960’s. Those unsuited for upgrade programs or surplus were sold off. Remaining rifles were converted to L42 rifles in 7.62 NATO. Therefore, a British rifle has a storybook of markings establishing its history. Canadian issued rifles usually do not have the characteristic British speckling of stamps and punches. The collector must educate himself on the nuances of each stamp and punch. They are not random, but tell a lengthy and detailed story beyond the intent of this article.
Still following Laidler, the second guideline is to look for a large ‘TR’ stamped on the left of the butt socket and a letter ‘T’ on the flat of the left receiver sidewall after the model number. The fonts are distinctive. The ‘TR’ was applied by inspectors at the plant to indicate the rifle grouped better than others. It was segregated and shipped to Holland and Holland. The new arrivals were inspected again, and those that met a higher standard were converted. Some rejected ‘TR’ rifles may be in circulation without other sniper marks. The ‘T’ signified a No.32 telescope had been fitted, and the combination met all inspections. Without a ‘T’ marking, the rifle could not have been converted at Holland and Holland or Long Branch, except for defined batches of rifles converted before the marking procedures were settled.
The third guideline is to look for a ¼ inch ‘S51’ stamped on the bottom of the handgrip of the butt stock. This is unique to Holland and Holland. The standard length butt was a Normal marked with a letter ‘N’ on the top near the butt plate. There will be a check rest with a scalloped front end screwed to the comb. There are some variations in the finished shape and centering of the cheek rest. Some rifles have it more upright while others tend to have the rest rolled to either side. Unbuggered screw heads on slotted screws are an encouraging sign. Look for a stamped telescope number on the front edge of the butt, just before butt socket. If possible (but I strongly advise against amateurs touching any tool to a collectable rifle), unscrew the butt and look on the wood for the rifle serial number just in front of the scope number.
Look at the stock, look for a screw from one side of the wood to the other just in front of the receiver ring. This is the dreaded Ishapore screw. The Indians modified every No.4 rifle they found with this strengthening screw. Nobody else worried about such things. Although, India did use unknown numbers of No.4(T) rifles, but the references give no indication of Indian markings.
Look on the front right side of the receiver just behind the receiver ring. A genuine Holland and Holland conversion will have a 1/8 inch letter ‘S’ close to the wood line. I cannot comment if Long Branch is marked as such.
If there is an angular sling swivel on the takedown screw in front of the magazine, this is a sign, A) the rifle was either produced after September 1944, B) it left British military sometime near then, or C) someone has ‘improved’ the rifle. A considerable number of civilian Parker Hale target shooting swivels change hands on the internet, regardless of appropriateness for the year of No.4(T) production.
Look at the sights. Are both surfaces on the front sight blade, which face the shooter, undercut? Apparently some snipers found the normal slope reflected back on their eyes. I wouldn’t worry if it is not there. It may be a peculiarity of British unit-level conversions. The back sight should be the machined early Mk.I style, without the 90 degree battle sight. It should be completely black with no exposed metal surfaces. One sign the rifle has been used by someone knowledgeable will be if the underside is rounded out. Smart armourers made this modification (without permission) so their sniper comrades could remove the rifle bolt without removing the scope and flipping up the back sight.
The next to last item(s) are the accessories according to the equipment checklists. Every well-dressed No.4(T) has: a No.15 wooden transport chest; a No.8 scope case and leather strap or No.8 MK.2 rubberized canvas sleeve; a canvas protective case that is too small for a rifle with scope; a Scout Regiment ‘pirate-style’ draw tube telescope; a small tin cleaning kit; and a World War I dated American M1907 leather sling. Each item is a study in itself. Generally speaking, collectors look for matching numbers to their rifle and telescope, and for example, a Broad Arrow on the sling. Any No.8 case or sleeve, and surprisingly the can’s strap, are highly sought after, followed by the No.15 chest. The Canadian C No.7 .22 rifle chest is similar, but not tall enough by 2 inches.
The final item from Laidler’s books is the No.32 telescope and mounting bracket or base. If the rifle offered does not have a No.32 scope, be skeptical. Remember, the Century rifles are sold without brackets or scopes. If there is a scope, compare its number to the stamped number on the butt and the rifle number to the one on the bracket. If they match, Bingo! We have a winner. If not, don’t despair. Most No.4(T)s sold for surplus in Canada have mismatched numbers. The dealers stored the rifles unheated and the scopes heated; most salesmen or shippers didn’t know or care to match them up. It is not unreasonable to suspect a similar tale elsewhere.
In broad terms, a 1941, ‘42 or ‘43 rifle should have a MK1 scope; rifles made in ’43 and ‘44 should have a MK2 scope, and rifles made in ‘45 a MK3 or C No.67 scope (also known as a Mk4). Canadian-made REL scopes restart serial numbers with each mark change. Only a few hundred REL scopes of each mark were ever produced, so overall they are exceedingly scarce. An REL scope on a British rifle or a Long Branch rifle with British scope should be approached skeptically. The best British MK3 scopes were kept for the 7.62 conversion program, as earlier Marks were no longer needed. Some good condition MK3 scopes were sold off.
There are a number of replica scope brackets on the market. US companies like SARCO and The Sportsman’s Guide sell fake sniper rifle mounts. It has an obvious two-faceted rear face. The author succumbed to a testosterone race and bought a not-so-cleared explained replica bracket for 50% more than the retailer was asking. On the other extreme are brackets made in the UK for Roger Payne. His products are high quality and esthetically close to the original, but still distinctive to the knowledgeable collector.
The flat side will be flat, not sharply angled. Look for a round radius on the rear “arm” of the bracket and a short vertical rise from the rear finger knob. The originals were cast iron, with limited machining for the scope contact surfaces, the ring halves, and the bearing surfaces at the pads. Postwar, the British rifles stamped the rifle serial number on the rear leg. Long Branch serialized the bracket to the rifle, centered near the top edge.
Canadian knobs have a small depression in their centre. The British knobs are smooth surfaced inside. There are two styles of split washers which are not interchangeable.
Laidler suggests if the pads have tiny Broad Arrow marks, they are replacement parts from authorized sources. However, there are replica No.4(T) parts kits on the market. One internet seller includes drills, taps and screws with a set of pads. Hardware is one thing, talent is another. The key ingredient in the Holland and Holland conversion was two operators and three machines using all the same jigs. They converted rifles on a production line of one rifle after another. Every faker is trying to replicate that unique set of conditions. Without a good knowledge of the factors, it is unlikely to get the pads properly centered and aligned over the bore. A fake rifle and pads are unlikely to be aligned to the natural centre of the telescope’s adjustment.
---------------------------------
Having read all that you just might have something resembling the Century fake snipers that were accurate rifles set aside at the factory for conversion to -T- status but never done.
The Century rifles were not LE sniper rifles. But from what you posted your rifle also lacks some of the reported stamps and details that the Century rifles are reported to have had.
It therefore seems unkilely that your rifle was a century-sale.
It could be an older T rifle -read the early part of the above sniper story where the early units were not stamped T or TR but you need to get someone to tell you the manufacturing date of your rifle for this to be a "true issue"as all later T's had the -T- and -TR- stamps.
Is the scope pad serial numbered to the receiver?
If it is -good.
If it is not serialled at all and the screws are staked you have a parts gun in all likelihood.
If the scope mount is not serialled to the gun you have a rebuilt rifle or possibly a parts gun built up by a private individual.
BUT IT IS ALL IN QUESTION YOU NEED TO POST US SOME GOOD PICTURES OF--
a)receiver left wall--good resolution pic
b)left butt socket wall -good pic
c) wood markings on butt and foreend
d) -S- stamp in the receiver ring-these have been faked in the past.
e) close up of the scope pads and screws
f) close up of the scope mounts,screws and stamps (numbers)
g) closeup of the rear sight
--------------------------------
Then all the seriously informed folks here can make a more informed decision.
You might have a scrubbed rifle--cleaned disassembled and blasted so the markings might have been lost, this is why we want to see the remaining marks and whether or not they are clean and visible or light and barely visible.
Info info info
Regards
Terry in Victoria
While we're speaking of an "A" series T sniper....
Mine's serial number is AV364x.
Can anyone render an opinion as to when in 1943 it was made? The socket says 1943, but the scope is a '44. The buttstock numbers to both the rifle, and the scope....
Also, did the 1943 rifle receive a 1944 scope, when it went through Holland & Holland?
Scope is a Mk II, marked 1944. OS 1650 A.
Serial on scope is: 16481. This number is on the stock wrist..
Just trying to get a time frame on this ...
Thanks...
218bee
