ID a Hand Guard ? TEST

**painter777** · 06-01-2018 05:31 PM

Got in to my Photo bucket account today......... and found they are under new management and attempting to win back our confidence. So for now it appears out pictures are no longer held hostage. No more playing Whack a Mole to knock down pop ups. We'll see how long it lasts, but while I had the time I was in there doing some pre summer cleaning... before I try a new hosting site.

Anyway,

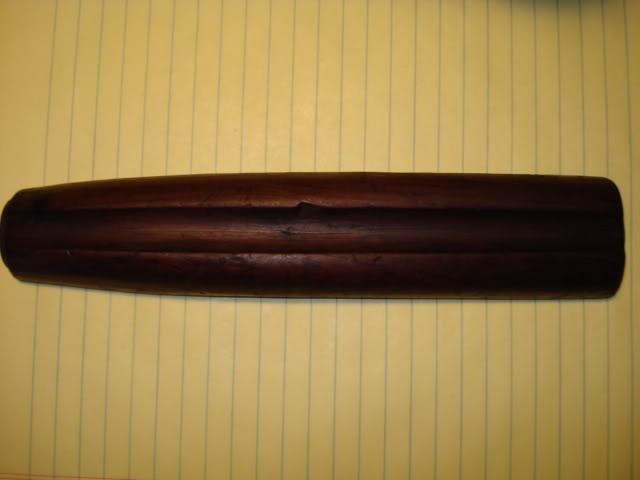

Came across these pictures of a Carbine Hand Guard I pulled from a box. Before trying to ID the maker, I'll ask:
1st question- Does this look like a Type II shallow cut with narrow sighting groove to any of you?

Or Type I Deep cut with wide sighting groove?

Everyone who participates gets a Gold Star....

Good Luck,

Information

Warning: This is a relatively older thread
This discussion is older than 360 days. Some information contained in it may no longer be current.

**Highly Recommended** · 06-01-2018 05:31 PM

A Collector's View - The SMLE Short Magazine Lee Enfield 1903-1989. It is 300 8.5x11 inch pages with 1,000+ photo’s, most in color, and each book is serial-numbered. Covering the SMLE from 1903 to the end of production in India in 1989 it looks at how each model differs and manufacturer differences from a collecting point of view along with the major accessories that could be attached to the rifle. For the record this is not a moneymaker, I hope just to break even, eventually, at $80/book plus shipping. In the USA shipping is $5.00 for media mail. I will accept PayPal, Zelle, MO and good old checks (and cash if you want to stop by for a tour!). CLICK BANNER to send me a PM for International pricing and shipping.

Manufacturer of various vintage rifle scopes for the 1903 such as our M73G4 (reproduction of the Weaver 330C) and Malcolm 8X Gen II (Unertl reproduction). Several of our scopes are used in the CMP Vintage Sniper competition on top of 1903 rifles.

Brian Dick ... BDL Ltd. - Specializing in British and Commonwealth weapons

Specializing in premium ammunition and reloading components.

Your source for the finest in High Power Competition Gear.

Here at T-bones Shipwrighting we specialise in vintage service rifle: re-barrelling, bedding, repairs, modifications and accurizing. We also provide importation services for firearms, parts and weapons, for both private or commercial businesses.

**W5USMC** · 06-01-2018 10:19 PM

OK Charlie, I'll say it is a type II. Looks wide and deep in the front and narrow and shallow in the rear. Is it a LW-B???

**wmmwraghd** · 06-02-2018 09:07 AM

Looks moderately deep. MU?

**painter777** · 06-02-2018 02:35 PM

Here's a top and bottom view.
To me it looks like it's not a Type I or a Type II..... More like a Type 1 1/2.
No markings found on the bottom.
Wonder Why ??

**painter777** · 06-03-2018 03:33 PM

Years back I made a bulk purchase of Hand guards and stocks. This Hand guard came from that purchase. I have no idea who 'Made it'. Size and fit is perfect, but who made it is a mystery.
I don't know if it could have been some type of commercial guard, or possibly made over seas. As there were many stocks with the US or Korean rack paint jobs and Hand guards with the sighting groove being painted. So far all that I have pulled have been USGI other than a couple stocks (Un-marked) made from Kapur wood

Note how there were never any holes drilled for attaching rivets.... just the retaining tab which was nail or tacked on.

Been kinda slow here, so I posted for the curious. Thx to those who probably remembered this from being shown before and not spoiling it.
