Spare Parts Box, Chorehorse Charging Set

**Flying10uk** · 09-30-2023 05:08 PM

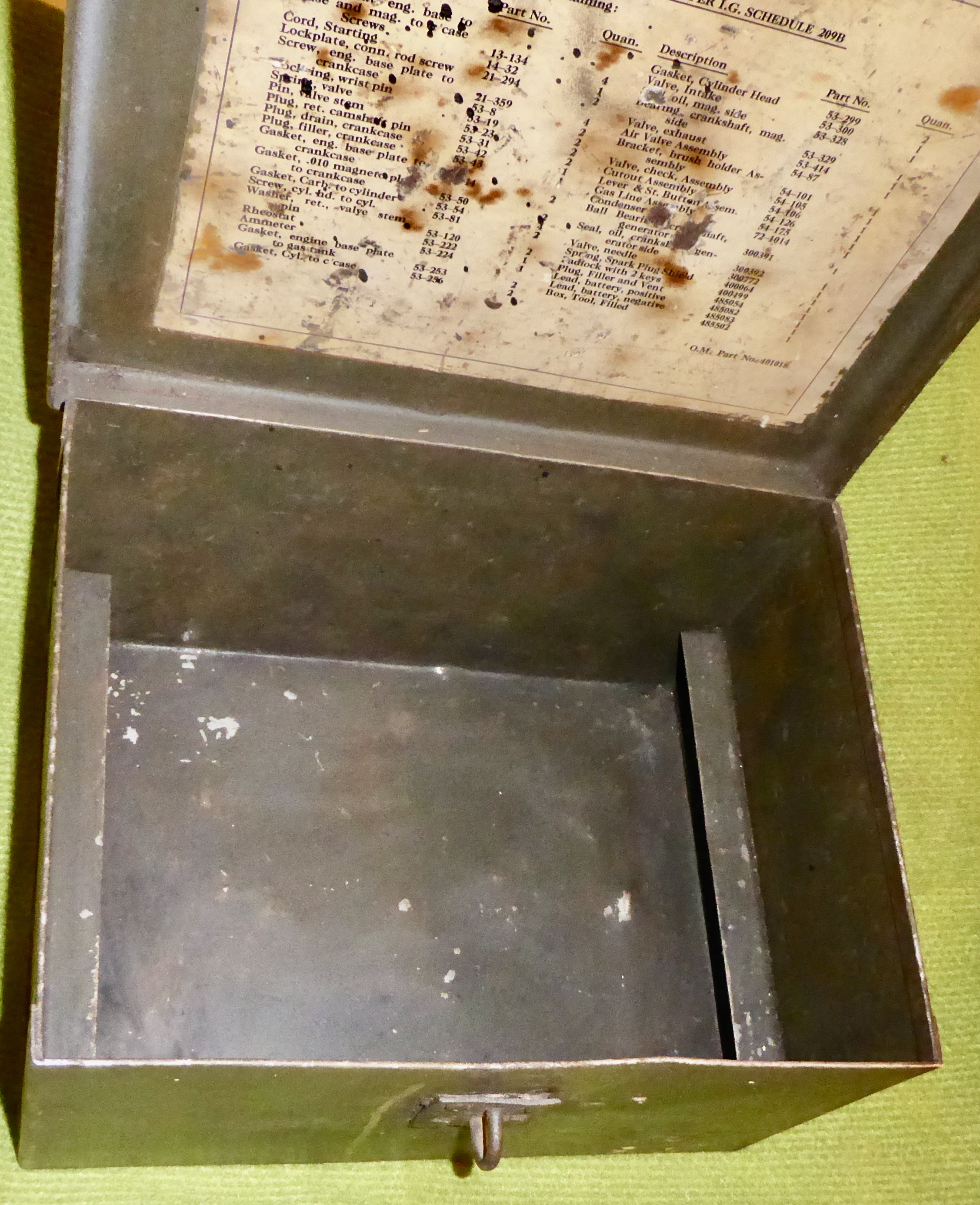

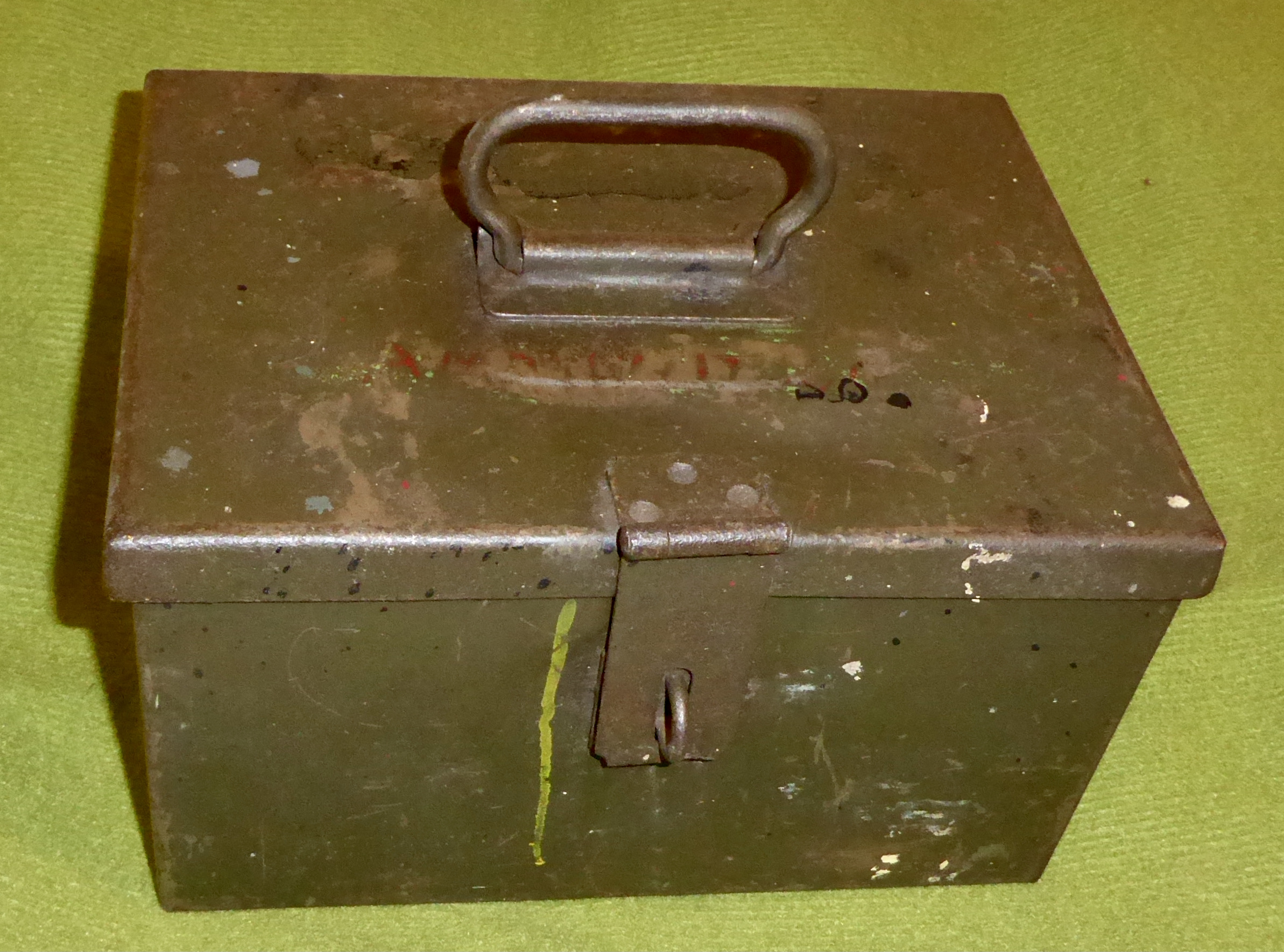

One of the many things that my late father purchased from the local government surplus store post WW2 was this small tool box. It wasn't bought as a collectable, but just as a useful small metal box. It was put to good use as something to store small abrasive wheels and rotary wire brushes in and eventually it passed to me. I continued to use it for the same purpose until 20 years or so ago when I had too much that I wanted to fit in it.

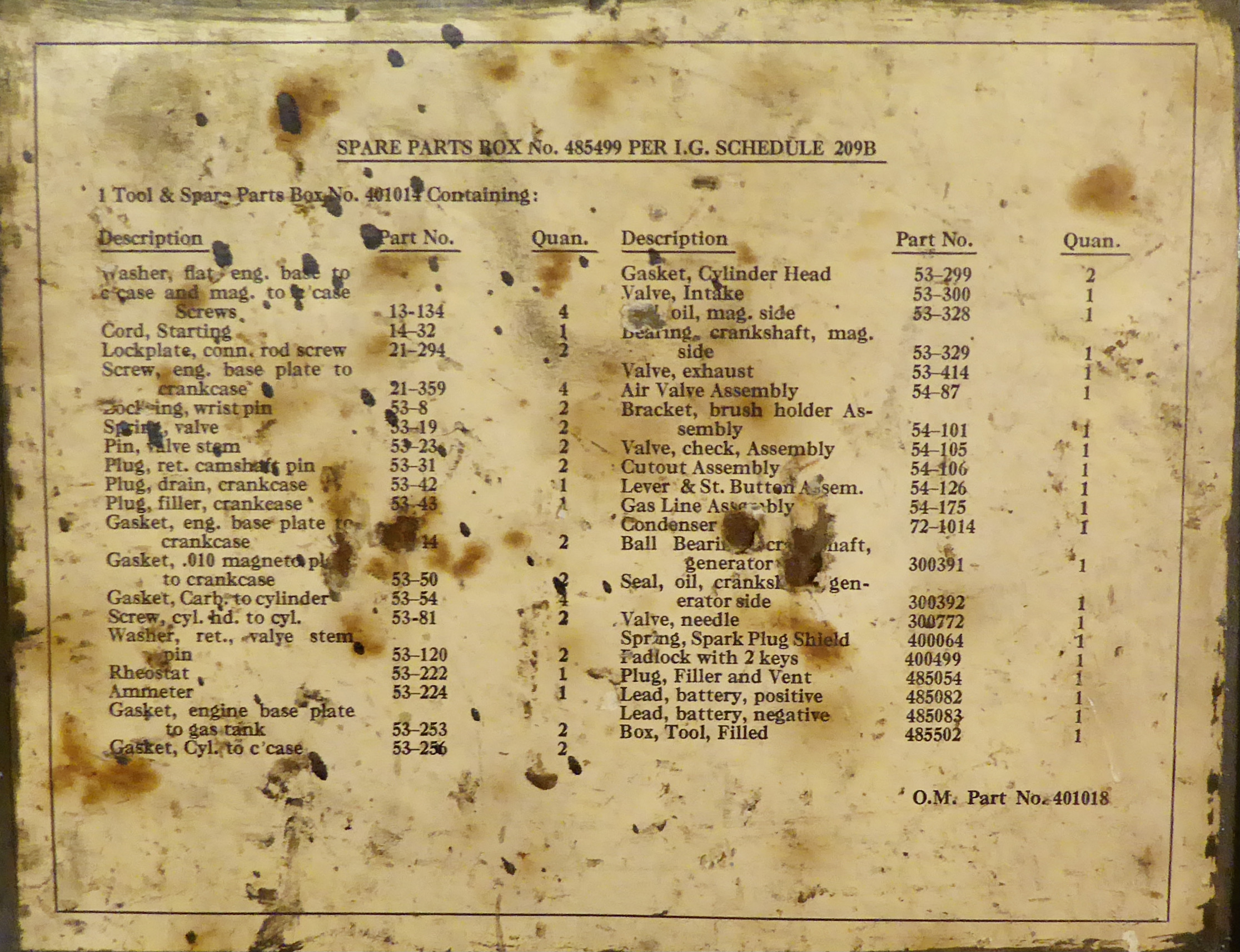

I have always been fascinated by the label inside with the list of contents and tried to imagine what vehicle or equipment it was intended for.

It didn't quite make sense being a spare parts box for a vehicle as one of the contents is a cylinder head gasket and it would have to be a very small vehicle/engine for the gasket to fit in the box. After looking online I believe that I've identified it as the spare parts box for the Chorehorse Charging Set.

https://hmvf.co.uk/topic/27027-chore...rging-set-mk1/

Information

Warning: This is a relatively older thread
This discussion is older than 360 days. Some information contained in it may no longer be current.

**Highly Recommended** · 09-30-2023 05:08 PM

A Collector's View - The SMLE Short Magazine Lee Enfield 1903-1989. It is 300 8.5x11 inch pages with 1,000+ photo’s, most in color, and each book is serial-numbered. Covering the SMLE from 1903 to the end of production in India in 1989 it looks at how each model differs and manufacturer differences from a collecting point of view along with the major accessories that could be attached to the rifle. For the record this is not a moneymaker, I hope just to break even, eventually, at $80/book plus shipping. In the USA shipping is $5.00 for media mail. I will accept PayPal, Zelle, MO and good old checks (and cash if you want to stop by for a tour!). CLICK BANNER to send me a PM for International pricing and shipping.

Manufacturer of various vintage rifle scopes for the 1903 such as our M73G4 (reproduction of the Weaver 330C) and Malcolm 8X Gen II (Unertl reproduction). Several of our scopes are used in the CMP Vintage Sniper competition on top of 1903 rifles.

Brian Dick ... BDL Ltd. - Specializing in British and Commonwealth weapons

Specializing in premium ammunition and reloading components.

Your source for the finest in High Power Competition Gear.

Here at T-bones Shipwrighting we specialise in vintage service rifle: re-barrelling, bedding, repairs, modifications and accurizing. We also provide importation services for firearms, parts and weapons, for both private or commercial businesses.

**Sapper740** · 09-30-2023 10:14 PM

In Canada

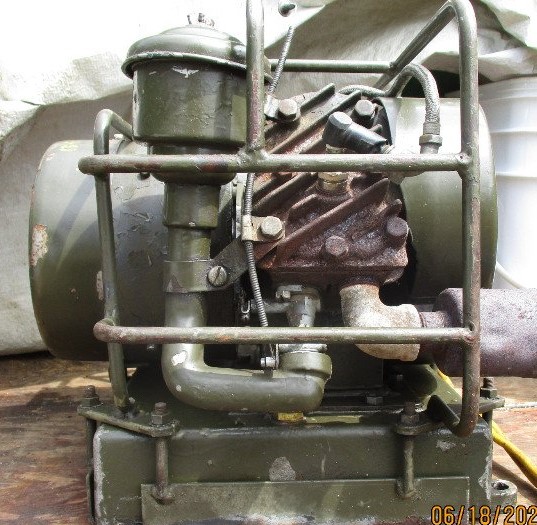

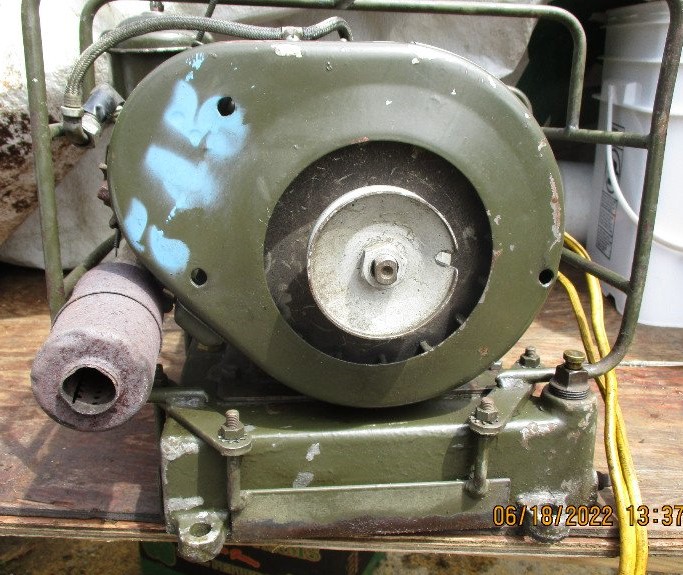

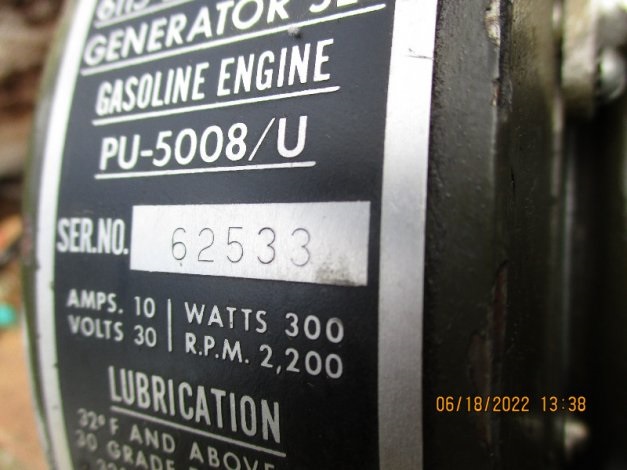

the Chore Horse charging sets were manufactured by OMC - Johnson Outboard Co. at their Peterborough, Ontario plant during WWII and put out 10 amps at 30VDC and were mainly used to charge batteries. No self respecting RCEME troop went into the field without one.

**Flying10uk** · 10-02-2023 05:39 AM

Was the Chore Horse used for anything other than charge batteries, i.e. a conventional generator?

**Sapper740** · 10-06-2023 09:19 AM

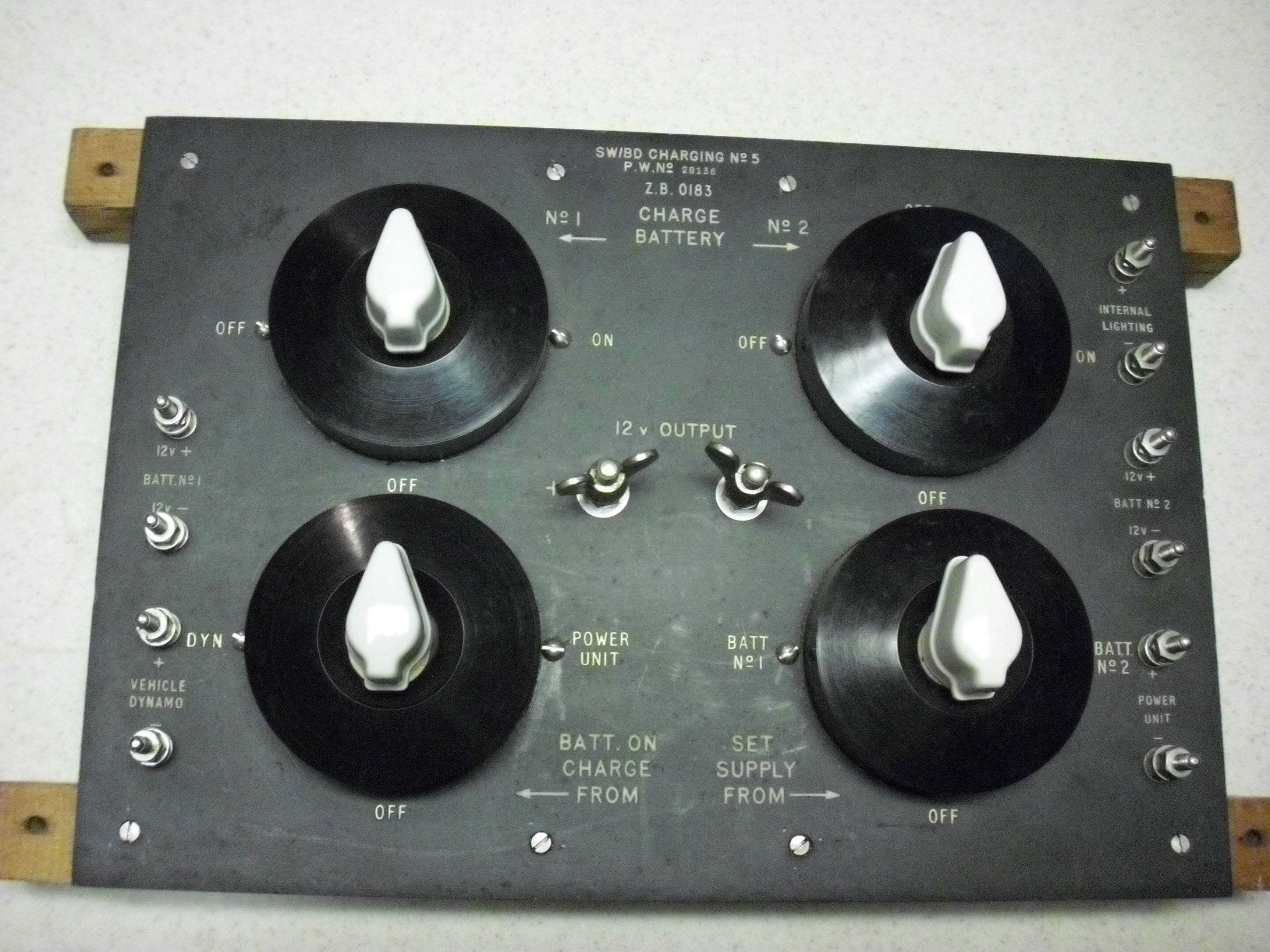

Wireless trucks used the Chore Horse to both run the radios and charge the batteries. The trucks had a switching board that allowed the wireless operator to choose from battery power, the truck's dynamo or the Chore Horse generator. If you look closely at the picture you can see where the leads from the Chore Horse are attached to the switching board at the bottom right and the large knob on the bottom left is where the operator chose the Chore Horse to supply the power. The operator also controlled the interior lights from this board.
