    Gewehr 98 feeding problems

    Hi All,

    I was hoping on some suggestions as to what might be the cause of some feeding issues I'm having with M98 rifle. It is a Danzig Gew 98 dated 1916. All bolt, receiver, stock all matching numbers. It is a great shooter for its age but I'm continually getting a situation where the bolt rides over the cartridge in the magazine and hits it mid-way along the case.

    The result is a dinged cartridge and obviously a miss-feed. That's the best way I can describe it. I had thought perhaps the magazine spring is weak so took the spring out of my K98kicon (that rifle has no feed issues) and swapped them. This made no difference. I swapped out the extractor thinking it was not grabbing correctly on the feed stroke. Again, this made no difference. When I work the bolt, it is definitely 'with purpose' and not slow. The problem is minimized when I work the bolt as if my life depended on it, but it does not entirely go away.

    Does anyone have any thoughts on the cause of this?

    Regards, and thanks for your time.
    Jon

  2. # ADS
    Friends and Sponsors
    Join Date
    October 2006
    Location
    Milsurps.Com
    Posts
    All Threads
    A Collector's View - The SMLE Short Magazine Lee Enfield 1903-1989. It is 300 8.5x11 inch pages with 1,000+ photo’s, most in color, and each book is serial-numbered.  Covering the SMLE from 1903 to the end of production in India in 1989 it looks at how each model differs and manufacturer differences from a collecting point of view along with the major accessories that could be attached to the rifle. For the record this is not a moneymaker, I hope just to break even, eventually, at $80/book plus shipping.  In the USA shipping is $5.00 for media mail.  I will accept PayPal, Zelle, MO and good old checks (and cash if you want to stop by for a tour!).  CLICK BANNER to send me a PM for International pricing and shipping. Manufacturer of various vintage rifle scopes for the 1903 such as our M73G4 (reproduction of the Weaver 330C) and Malcolm 8X Gen II (Unertl reproduction). Several of our scopes are used in the CMP Vintage Sniper competition on top of 1903 rifles. Brian Dick ... BDL Ltd. - Specializing in British and Commonwealth weapons Chuck in Denver ... Buy-Sell-Trade .. Guns, Cars Motorcycles Your source for the finest in High Power Competition Gear. Here at T-bones Shipwrighting we specialise in vintage service rifle: re-barrelling, bedding, repairs, modifications and accurizing. We also provide importation services for firearms, parts and weapons, for both private or commercial businesses.


  3. #2
    Legacy Member Daan Kemp's Avatar
    Join Date
    Jan 2016
    Last On
    Today @ 01:11 PM
    Location
    Centurion RSA
    Age
    71
    Posts
    1,225
    Real Name
    Daan Kemp
    Local Date
    11-30-2022
    Local Time
    07:40 PM
    Magazine feed lips?

  4. Avoid Ads - Become a Contributing Member - Click HERE
  5. #3
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Today @ 10:56 AM
    Location
    Victoria BC
    Posts
    27,914
    Real Name
    Jim
    Local Date
    11-30-2022
    Local Time
    09:40 AM
    There have been threads here in the past that have developed to show it's usually the mag follower or the spring. Very hard to say without having it in front of you...
    Regards, Jim

  6. #4
    Legacy Member Land and Groove's Avatar
    Join Date
    Sep 2021
    Last On
    11-16-2022 @ 07:26 PM
    Location
    Australia
    Posts
    6
    Real Name
    Jon
    Local Date
    12-01-2022
    Local Time
    04:40 AM
    Thread Starter
    Thanks Gents,

    Yes, I had a similar though that perhaps I should examine the magazine follower and replace it to see if that helps.

    Regards, Jon

  7. #5
    Legacy Member Land and Groove's Avatar
    Join Date
    Sep 2021
    Last On
    11-16-2022 @ 07:26 PM
    Location
    Australia
    Posts
    6
    Real Name
    Jon
    Local Date
    12-01-2022
    Local Time
    04:40 AM
    Thread Starter
    Well, I did some more thorough examination and racked my brains whilst staring the issue down! I replaced the mag follower with one from my K98kicon. Still made no difference to the feeding problems. I even swapped the bolts over - again no difference.

    I did some more testing and evaluation with some dummy cartridges, seeing if I could isolate the issue. What I eventually realized is that the misfeed only happens when the top cartridge (in the mag) is on the left staggered position, not the right. I decided to put my three M98's side by side and sure enough there the issue was. The left edge of the receiver is worn out, in the area that obviously assists the cartridge in the return-to-battery feed stroke. The area of wear is quite subtle, but on examination it was quite obvious that I have found the culprit.

    Well, I suppose that's the good news. The bad news would be that there's not much I can do about it, as this worn area is part of the receiver forging and not a part that can be easily replaced.

    I'll try to insert some photos to show what I'm talking about.

    Cheers
    Jon

  8. #6
    Legacy Member Land and Groove's Avatar
    Join Date
    Sep 2021
    Last On
    11-16-2022 @ 07:26 PM
    Location
    Australia
    Posts
    6
    Real Name
    Jon
    Local Date
    12-01-2022
    Local Time
    04:40 AM
    Thread Starter
    Here goes........

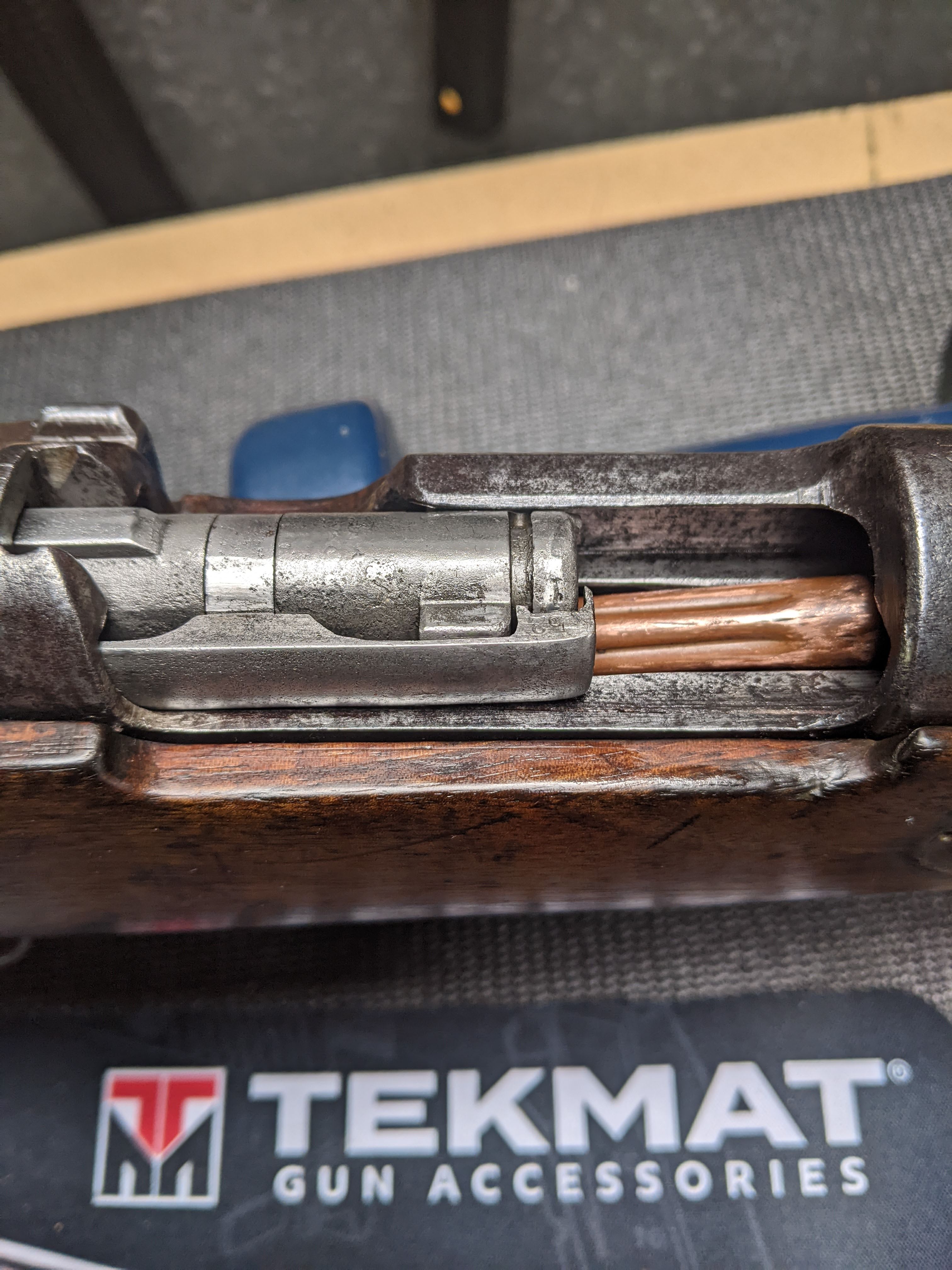

    The first photo shows the miss-feed. The bolt has lost control of the cartridge because the feed angle has become too great.

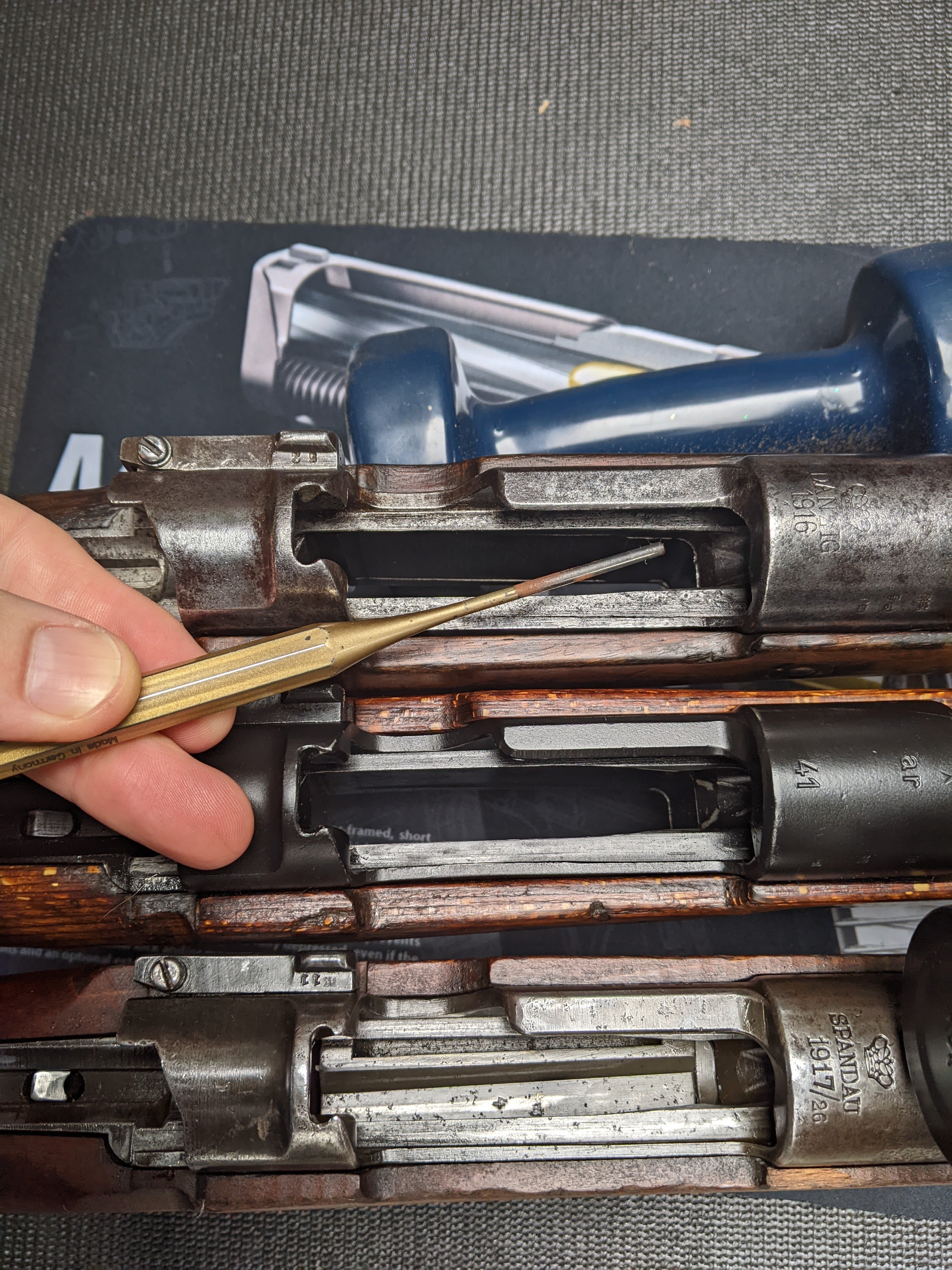

    The next photo shows my three M98's lined up, and a pin punch indicating the area I'm talking about on the Gewehr 98 receiver, which is on top.

    So those little shelves which sit on either side of the receiver (near the feed ramp) serve a very important purpose it turns out!

    So I just learned something new about these old rifles. Next time I'm at the range I'll have to come up with a system to manipulate the bolt in a way that doesn't cause feeding issues. That will be the next challenge.
    Attached Thumbnails Click image for larger version

Name:	Miss feed example.jpg‎
Views:	31
Size:	1.53 MB
ID:	128913   Click image for larger version

Name:	Three in a row.jpg‎
Views:	32
Size:	2.40 MB
ID:	128914
    Last edited by Land and Groove; 11-16-2022 at 12:01 AM.

  9. Thank You to Land and Groove For This Useful Post:


  10. #7
    Legacy Member Calif-Steve's Avatar
    Join Date
    Mar 2009
    Last On
    11-28-2022 @ 05:30 PM
    Posts
    2,495
    Local Date
    11-30-2022
    Local Time
    12:40 PM
    Try to find a new magazine spring. A US Springfield spring may well help, too. Original mag spring from 1916? May well be worn out. Good luck.
