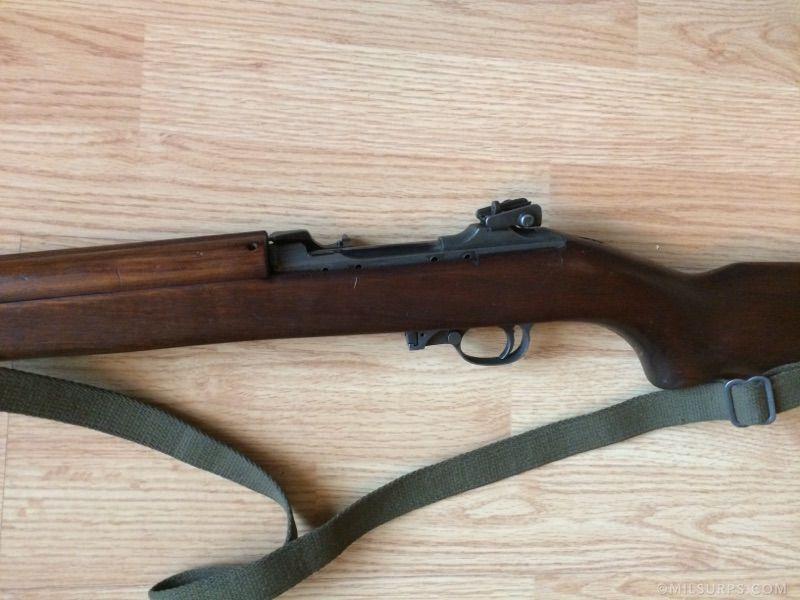

      I'm thinking this Winchester 5,820,6XX is in it's original configuration, but I am not an expert.

      Two rivet hand guard, W stamp in sling well, ordnance wheel on right side of stock, M-H on hand guard under left side,.
      Flaming bomb on right side of barrel, W stamp about 4" back from the frt sight (actually looks more like a V or half a W.
      No date on barrel, M on mag reliece stamped W, stamp on hammer W, round bolt with W stamp on right lug, trigger housing stamped W,
      Punch mark on receiver ahead of rear sight, H in a shield on right side of rear sight, late Winchester butt plate, W on recoil lug

      receiver drilled and tapped for side mount scope and stock carved out to clear scope mount.
    3. Click Thumbnail to Enlarge.
      M-1 Carbine 5,820,XXX - Photo 3515 M-1 Carbine 5,820,XXX - Photo 3516 M-1 Carbine 5,820,XXX - Photo 3517 M-1 Carbine 5,820,XXX - Photo 3518 M-1 Carbine 5,820,XXX - Photo 3520 M-1 Carbine 5,820,XXX - Photo 3521 M-1 Carbine 5,820,XXX - Photo 3522 M-1 Carbine 5,820,XXX - Photo 3523 M-1 Carbine 5,820,XXX - Photo 3524 M-1 Carbine 5,820,XXX - Photo 3527 M-1 Carbine 5,820,XXX - Photo 3528 M-1 Carbine 5,820,XXX - Photo 3529 M-1 Carbine 5,820,XXX - Photo 3531 M-1 Carbine 5,820,XXX - Photo 3532 M-1 Carbine 5,820,XXX - Photo 3533 M-1 Carbine 5,820,XXX - Photo 3534
    4. Gallery Statistics
      Member: Jim__W
      Created: 05-07-2017 04:47 PM
      Last Modified: 05-12-2017 11:07 PM
      Views: 721
      Images: 16
      Comments: 1
    5. Comments
      Author Comment Date
      Jim__W O.K. I added some photos but they are not as good as I had hoped. 05-07-2017
