No.32 Scope I.D. confirmation.
-
-
11-12-2010 08:24 PM
# ADS
Friends and Sponsors
-
The adjustments themselves indicate it's still a Mk.2, no? A Mk. 2/1 would be expected to have the slipping rings found on a No.32 Mk.3. It's more of a No.32 Mk.1/2 if the elevation and windage adjustments are 1 minute increments rather than the Mk.I 50yd (E) and 2 minute (W).
Where's the little book?....
ETA: Eh, not immediately handy, and I've been up 24 hrs now, but I THINK the S/N would be for a No.32 Mk.I, but that's just a SWAG.
I'll check back in, barring deer butchering duties (hopefully) in about 18 or 20hrs. See what the REAL folk say!
Last edited by jmoore; 11-12-2010 at 09:07 PM.
-
The Following 2 Members Say Thank You to jmoore For This Useful Post:
-
-
The answer is very simple. It was manufactured as a Mk1, very probably at thge change over point to Mk2's so being in stuck, HBM have simply milled out the original Mk1 markings and over engraved Mk2 markings. Probably modified the existing Mk1 drums that hey had in stock too and sent nit out as a Mk2. Waste not, want not as they say.
I have seen many HBM's like this, all from the same serial number batch. In short, your telescope is a Mk2.
If it were a Mk2/1, it would be the Mk2 as you have with the slipping scale drums from the Mk3 in the background
Another reasonably accurate method of telling whether such a conversion was done at the factory of in a workshop is in the method.
Milling out and over engrave - Factory
Barring out - REME workshop
But I could be wrong. Next question..................
-
The Following 6 Members Say Thank You to Peter Laidler For This Useful Post:
-
Advisory Panel
Interesting Scope
My example is only 9 away but is a factory Mk 2 tube.
-
The Following 5 Members Say Thank You to Lance For This Useful Post:
-
Legacy Member
-
-
Legacy Member
And they were still using the MK1 tubes later than Lance's numbered scope.
Tin worm unfortunately took a bite or two at this scope.
-
The Following 6 Members Say Thank You to Valleysniper For This Useful Post:
-
There Ickman, you can't get more original than Valley snipers photo of a well worn and motheaten but very original upgraded telescope. Remember. Milled out and over engraved = factory. Barred out and re-marked = REME workshop
I have seen an HBM scope where the 5 in the serial number has been engraved upside down (put in the pantograph wrong way up). Number barred out and re-engraved underneath
-
The Following 3 Members Say Thank You to Peter Laidler For This Useful Post:
-
Legacy Member
No 32 MK11 scopes built from MK1 tubes.

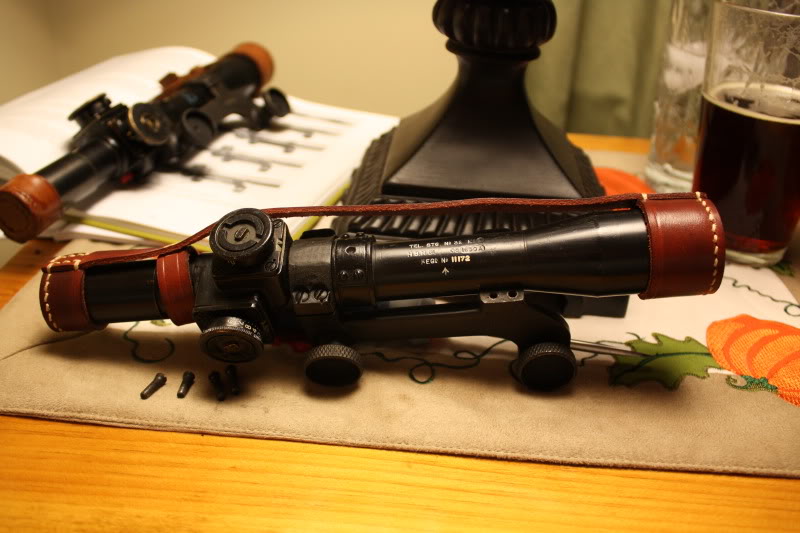

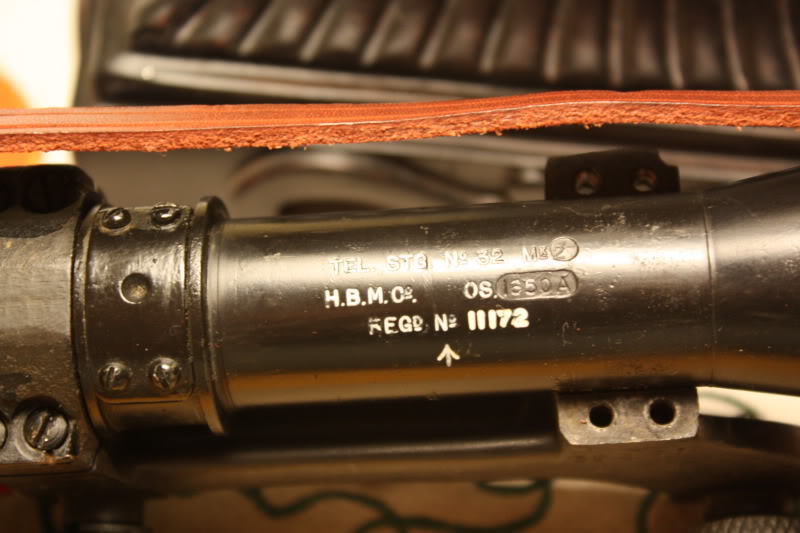

And here are 2 pictures of an earlier serialed numbered one in better condition from a friend of mine's collection.
-
