No4 Rifle Bayonets

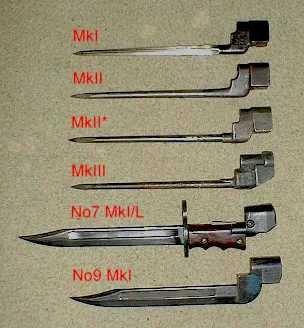

From the MkI cruciform to the No9, this spans the entire production of bayonets designed for use with the No4 Rifle.

Image courtesy of Richard Loweth

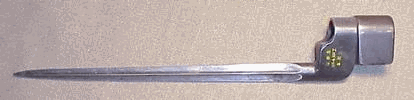

No4 MkI and MkI* Rifle Bayonet

Most commonly referred to as the "Spike Bayonet" (or tent peg), was also made by numerous manufacturers and in several different Marks.

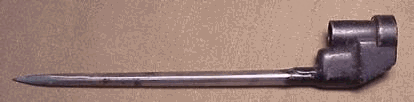

No4 MkI Cruciform

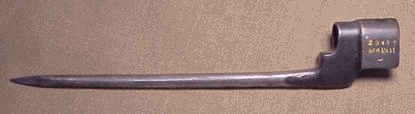

No4 MkII

No4 MkII*

No4 MkIII

No4 Mk2 Rifle Bayonet

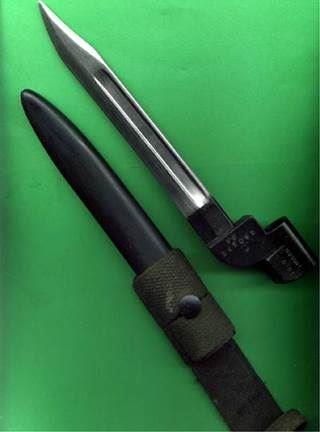

No9 MkI

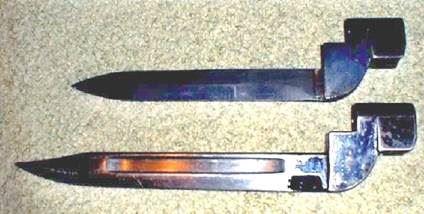

South African variation of the No9 Mk1 Bayonet (Left), Actual No9 Bayonet (Right)

Images courtesy of Lewis Maynard and Richard Loweth

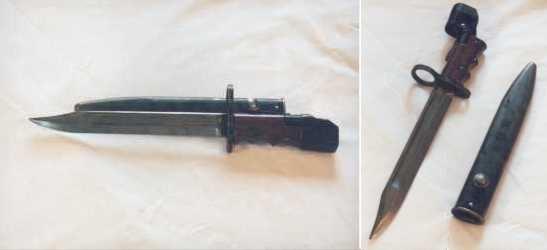

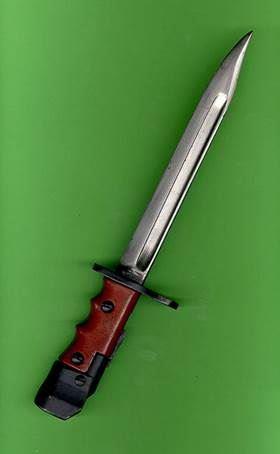

Two examples of the No7 Bayonet.

Designed to fit the No4 MkI and the Sten submachine gun. It featured a swivel type pommel to accommodate both weapons. It was quickly retired to the storeroom shelves for all but parade use. That is to say it was not popular, or very functional.

Image courtesy of Amy Poling

Image courtesy of Lewis Maynard
