Trigger Question

[gunner]

Hello all,
i am working on my next project, restoring and accurizing an No4 MKI*. I have removed the oil out of the wood and make a finish with BLO and stock wax. Yesterday i bead blasted the metal parts and blackend them. Now i want to do a little " Trigger-tuning" . I dont want to make it lighter but want to remove the scratching of the trigger. The way i want to do it is to deburr and polish the trigger and the sear. Has anybody out there any advice or an better way ? The next is bedding the system and adding the correct underbarrel pressure. So i hope it will be successful.
BTW On the mag is the squared `S`for Savage and two `B`s`. On the heel of the buttstock is also the `S`and a `E`. Any idea ?

Thank you in advance

Regards

Gunner

Information

Warning: This is a relatively older thread This discussion is older than 360 days. Some information contained in it may no longer be current.

[Alan de Enfield]

trigger pull-offs. Part 1
Posted By: Peter Laidler
Date: Sat 3 Jan 2009 3:58 am
THE TRIGGER PULL-OFF
I hope that by now you’ve all got on your workbench and almost fully assembled No1 or No4 or 5 rifle. Assembled and almost complete except for the trigger pull offs. Now, you’ll see the importance of starting the job with a perfectly assembled bolt. The FIRST thing I want to emphasise is that if the cocking piece on your bolt is loose on the striker….., in any way, or wobbles up and down or left and right, then read no further because whatever happens, you’ll never get a consistent pull off. But what you CAN do is strip it down, degrease it and if my memory serves me correctly, then clean the ¼” BSF threads ……ah, it makes me breath a sigh of relief to hear those old imperial thread sizes again…. In the cocking piece and striker and do one of two things.
The EMER states that if they are loose, then you can stamp a small letter ‘S’ on the striker thread to tighten it up in the cocking piece. I’d prefer it if you would flux it and run a coating of soft solder around the threads. That never fails and I don’t call that a bodge either. Having got the striker tight in the cocking piece, we’re ready to go. The second test is to draw the assembled bolt back and forth in the body and make sure that the nose of the cocking piece fully clears the short/underside locking lug of the bolt. If it does, then we’re ready to go.
But first, here’s a few points I’d like to make clear. The top of the sear that contacts the cocking piece is the NOSE and this must be undamaged, beautifully smooth and round. The flat that the trigger ribs bear on is the trigger bent. This must be absolutely flat and polished in an up and down manner. NOT across! I know this might sound a bit long winded but believe me, when you’ve done it a few thousand times, it becomes second nature, believe me …….., especially when you have beady eyed examiners like David Lines, Mr Amto and Mr Saw out-inspecting your work prior to range testing. Oh yes, where were we? Yes ….., the trigger has two raised humps on it. These are the ribs. The BOTTOM one, closest to the axis pin or finger part is the FIRST rib or bent. All this rib does is act on the trigger bent of the sear, drawing the sear smooooothly down the face of the cocking piece until the topmost rib contacts the trigger bent of the sear. This TOP trigger rib or bent is called the second or the PULL-OFF rib.
Then, just as the second or pull-off rib of the trigger contacts the trigger bent of the sear, several things happen. Firstly the rotatory angle of attack between the trigger and the sear changes slightly increasing the leverage required by your finger to squeeze (or rotate) the trigger any further. Now the trigger pressure increases from the FIRST pull of between 3 and 4 pounds pressure to the second pull off pressure of between 5 and 6.5 pounds pressure. And at the same time, the first pull has lowered the nose of the sear to within a gnats knacker of the very bottom edge of the face of the cocking piece. Now, you just need to gently squeeeeeeeze the trigger that last smidgin, exhale, cross-hair level, pointer upright, add that extra pound and a half of pressure and off it goes.
Now DO NOT MOVE, observe the target, follow the flight of the bullet through the haze. The observer will be doing the same through his binoculars……… Good hit, now release the trigger and wait. But wait ….., just how do we get to the point of perfection with the trigger pull off……………. That’s coming next
Are you sitting comfortably-, then we’ll begin. (apologies to all those post war 50’s era kids who remember this phrase from the BBC ‘listen with mother’ programmes!)
Re: trigger pull-offs. Part 2
Posted By: Peter Laidler
Date: Sun 4 Jan 2009 5:12 am
In Response To: Re: trigger pull-offs. Part 1 (Peter Laidler)
Still sitting comfortably kids?
TRIGGER PULL-OFFS, PART 2
What we’re going to do is to set up a rifle as we would for an Armourers trade test or as the instructor teaching it to the class. By now, you’ll all have a perfectly set-up bolt that slides into the body and is clear of the sear. Next, we’re going to select a No1, a No4 Mk1 or a bog standard No5 because how the pull-off affects the No4 Mk1/2, 1/3 and 2 will become clear later. First, I want you to run a steel rule or straightedge along the top edge of the trigger-less trigger guard. It must be flat and not warped. Now, place it into its recess in the fore-end and insert the rear trigger guard screw through the body, trigger guard and screw it up. The trigger guard should lay down flat. If it doesn’t, it tells me that the draws at the rear of the fore-end are too tight (unlikely with your original fore-end) OR that the wood in the trigger guard recess is too proud. Identify what the problem is and scrape it so that the trigger guard fits flat and square. Ok, so, if it is slightly raised at the front trigger guard screw (NO, NO, it’s NOT the king screw, it’s the SCREW, Front, trigger guard……….), by, say a 1/16th or 1/10th of an inch or so, what the heck but remember, the fore-end is secured by the front trigger guard screw and not the tension of a distorted trigger guard….., got that? After ensuring that the collar is a PERFECT fit and is nipped between the body, the trigger guard and that the fore-end is tight, fit the trigger guard and trigger. You also need to ensure that there is no undue slack between the trigger guard, the trigger axis pin and the trigger. The trigger axis pins do wear and form a shoulder along the shaft so watch out for this. If you do need a spare, then they’re readily available from the usual parts suppliers or, if you want to cheat, then just use a spare PIN, cap, fore-end or shank for any of the 4BA screws such as rear trigger guard or foresight protector screw or even a 4BA clearance drill at .144” or 9-SWG for you oldies
Now test the action of the trigger as there is one thing you ought to be aware of. If the body is worn, then the bolt might be loose in an up and down way and this CAN affect the second pull-off. If this is the case in your rifle, adjust the pull-off when it is in its natural position and not under any other form of control, such as pressing down onto the top rear of the bolt. The trigger will give one of the following reactions.
1. A crisp clean first pull of the trigger until it meets with a slight resistance, then a second squeeze, and almost without noticing it, the sear is drawn down another millionth of an inch and off she goes. Sheer poetry in motion, perfection and a first class trade test pass
2. You can have a long uninterrupted straight pull down and fire off the action. This is a first pull only (or FPO on the In-Inspection sheet)
3. Or you can have the same again but heavier. This a second pull only (…yep, 2PO on the in-inspectors sheet)
4. Or you can have a good clean first pull, then the resistance, then another long heavier pull then it’ll go off, well, whenever it feels like it. But YOU won’t know except that it’ll be ‘sometime………’ This is a ‘drag 2nd pull’
2 - is caused by only the FIRST rib or bottom rounded rib of the trigger contacting the trigger flat of the sear
3 - is caused by only the TOP or PULL-OFF rib of the trigger contacting the sear
4 - the drag second pull is caused by the first rib being too low and it not drawing the sear down sufficiently before the top pull-off rib engages the sear
You have to identify which of these is affecting YOUR rifle. If the pull off is as identified as 1, then go no further. It’s just practice and feel as to whether there is absolutely no drag on the second pull. When I was the snipers Armourer, I used to squeeze the trigger with another finger from the other hand between the back of the trigger and the guard. Just the slightest feel of resistance and then a click as it fired was good enough. If you do have the perfect pull-off, as in 1, then you must do the following to confirm it.
After taking up the first and are now onto the second pull, release the trigger fully. The sear MUST resume its original raised position. In other words, the trigger and sear must reassert themselves
If you have feature 2, it indicates that the rounded LOWER rib is too high and drawing the sear down off the cocking piece before the top bent comes into operation. So, you must carefully stone the bottom rib squarely, while retaining the rounded profile, a few .001” at a time. Use a micrometer from the rear….., you’ll soon start to take it down bit by bit. This is the best option, so go carefully because you’ll quickly find that you have shortened the first pull and have JUST started to get the second pull, which is JUST what you want and need. Now it’s a case of fine adjustment so that the second pull comes into operation as the sear is right at the bottom of the cocking piece.
Option 3 is going to cost you because it indicates that a butcher has been at your rifle and has probably stoned away the lower trigger bent so that only the top, second rib is operating on the sear. You’ll actually see this by the shape of the trigger. I have to say that although we had this fault set up on out trade test and training school examples, I never ever saw it in service because such a butchered rifle/trigger couldn’t get past the system and no amount of warpage in the fore-end would cater for it. I suppose you could replicate it by bending the trigger guard, but you’d have to go some…………………………….
Now to option 4. The most common, the drag 2nd pull. This is caused by an excessive TOP rib. Now, the first rib draws the sear down until the second rib meets it. Then the second rib takes over…., the trigger pressure increases but now, because the top rib is excessive, the sear is still too far from the lowest point of the sear bent of the cocking piece. So now, the sear is drawn further down the face of the cocking piece by the second rib before it fires off. This is the DRAG we refer to. And it’s something we definitely don’t want. Like option 2, this is relatively simple to cure, by carefully stoning down the TOP rib, a couple of thou’s at a time until you get to the all important perfect pull off.
If you have a Mk1/2, a 1/3 or Mk2 rifle, then you can immediately SEE what’s going on because you can perform this task with the fore-end removed. But with the No1, No4 Mk1 and 1/1 and No5 you’ve just got to keep removing the trigger and trigger guard to carry out the minute adjustments. I use a micrometer when I’m doing or teaching the youngsters to do it and take off 1 or two thou at a time, measured from the flat at the rear of the trigger. This way you can maintain the radius and keep the bent square-on to the axis of the trigger. It’ll take a bit of practice but once you’ve mastered it, it’ll come naturally.
Each Armourers shop had a big box of triggers, which, like bolt heads, might not be right for one rifle, might be almost or even perfect for another.
As you can understand now, there has been some behind the scenes discussion among the more experienced forumers about whether it is permissible to bend the trigger guard to achieve the same aim of a perfect first and second pull. Well, whatever your views, you can only achieve it constantly in this way, that is by stoning the upper or lower trigger ribs. While you CAN bend or distort the trigger guard, just how much ‘bend’ do you put into it. And just how much ‘bend’ is acceptable? This is what the EMER, the Armourers bible says on the subject. ‘……….trigger guard is not distorted and seats evenly in the stock fore-end. Trigger guards will not be set in order adjust the pull-off’. Well, that’s pretty unambiguous………………….
But as I always say, my experience in this field is limited and at the risk of upsetting some, I could be wrong
Just thinking out aloud, I wonder if it's worth buying the cheapest old dog of a No1, 4 or 5 that its possible to get, just to play about with it. There must be some old junkers or bubbas (see, I'm learning these wild colonial expressions too...) that are fit for training use only.

[gunner]

Thank you Alan, you done your homework much better than i .

Best regards

Gunner

[Edward Horton]

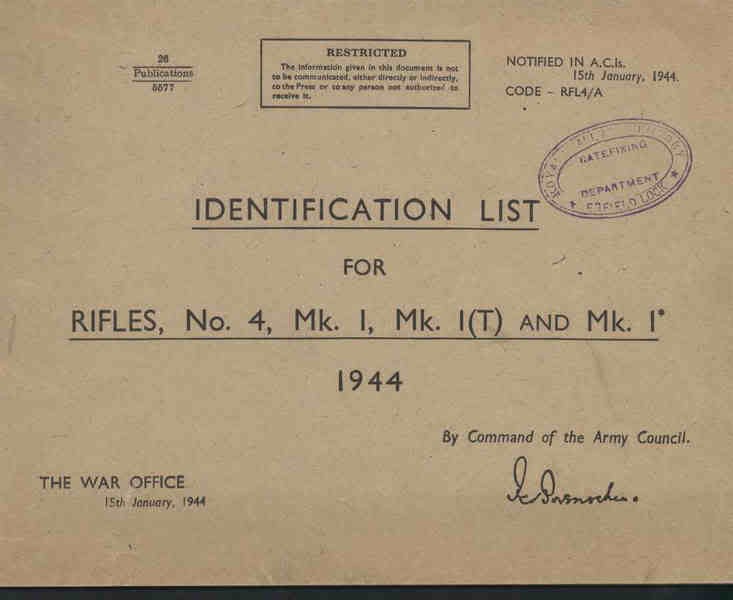

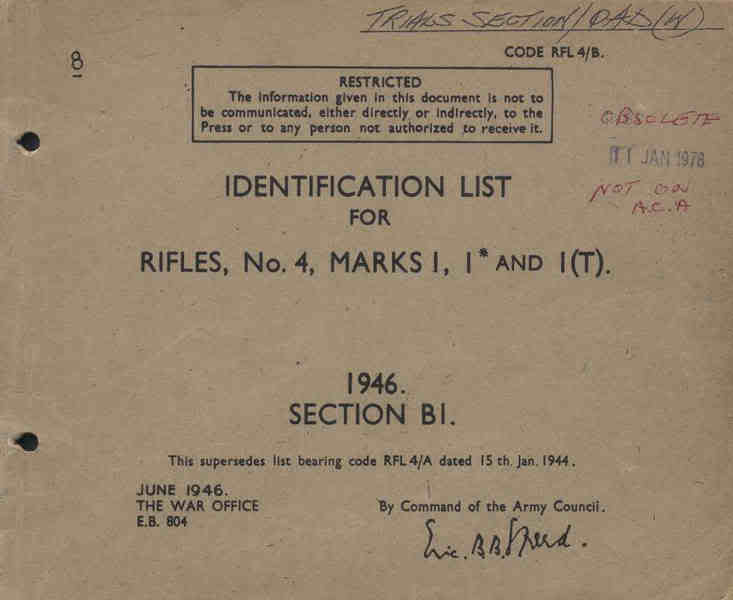

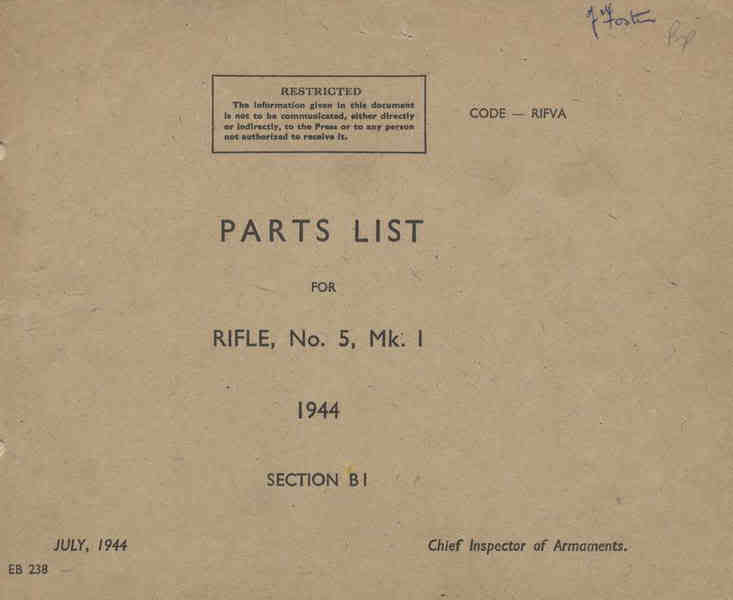

With all due respect to Mr. Laidler below is some information from my British spies that worked in the old MOD Pattern Room Library. Also its not that I paid my spies more than Mr.Laidler, its just that his American spies couldn’t find any Enfield information over here and may have been “over paid”.

Besides how many sneaky Americans bastards do you know that have a British friend whose wife worked in the MOD Pattern Room Library before it was sold off by the British Government.



















In closing, stone and smooth the sear and bent and remember this sneaky trick the Canadians use to fine tune their triggers, they slightly bend the trigger guard which changes the lobe angles on the trigger guard without stoning and changing the lobe geometry.
(Sorry Mr. Laidler but the untrained armourers of the world sometimes cheat a little)
(Especially if they have chronologically gifted eyesight and can't see the trigger lobes that well)

[louthepou]

Now that, my friends, is why we find the words "Knowledge Library" in the name of this section of the forum!

[Edward Horton]

Louthepou

I need to get off my tired retired butt and convert all my other foreign non-American silly metric firearms manuals and donate them to Badger and the few other Canadians that know how to read.

For those of you who do not understand my warped sense of humor I worked at a U.S. Military overhaul depot for 34 years and had the pleasure of working alongside Canadian and Australian military personnel.

These “foreigners” were very well trained and educated and their military training was far more extensive and longer than U.S. military training in any field. They also studied beer drinking 101 and were very good at it
(I think they were good at it, I just can't remember much of it.) (I kept trying to rub something off my back and it turned out to be the floor)

[louthepou]

Louthepou

I need to get off my tired retired butt and convert all my other foreign non-American silly metric firearms manuals and donate them to Badger and the few other Canadians that know how to read.

That, dear Ed, would be most appreciated!

(Now don't assume that because I can read English, as a second language, that I also understand what I read - but that's another story!)

[gunner]

Hi Ed, thank you for your post. My english is not as good as it could be, but after 15 or 20 of the 101beer`s, i think we will understand us without anyproblem, hicks...... I hope you are somewhat lenient with a poor english speaking man out of Mauser-Land .

Regards

Gunner

[Edward Horton]

Gunner

I have manuals that would go well with Heineken Beer and a little easer for you to read.

[gunner]

Thank you Ed, with the netherlands language it is a little easier because 1000 of them comes with their mobile homes to make holidays in bavaria.
Dank u voor uw inspanningen, ( Thank you for your efforts )
BTW i prefer more the Andechser Dunkel Bier thats a fine dark beer they brew only a few minutes away from me. You should taste it.

Best Regards

Gunner
