    Omark Model 44 Sniper Rifle

    For lack of a better fitting subforum I thought period-wise it would correspond the best with the PH rifles ..


    Having picked up yesterday a by then to me unknown single shot bolt action rifle on occasion I had wondered if there is more to learn on these rifles. The particular rifle has scope bases, as well as the lack of a open rear sight and absolutely no holes for a front sight indicate it was always and only used with a scope, which unfortunately seems to be gone.


    I read these were extensively trialed by the Australianicon Army, but were never introduced for being single shot only. Does anyone know with which scope (and scope mount) they were tested?

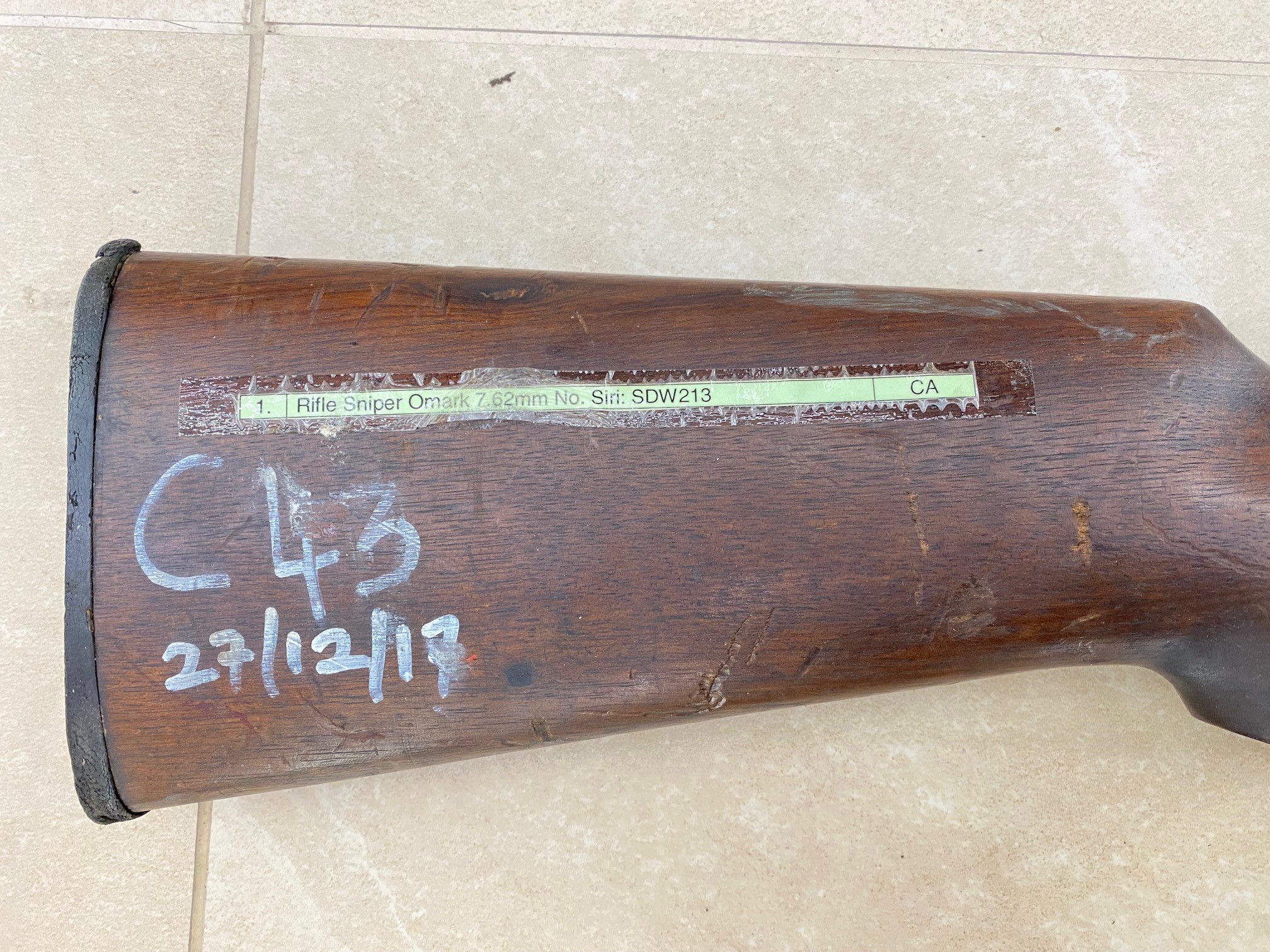

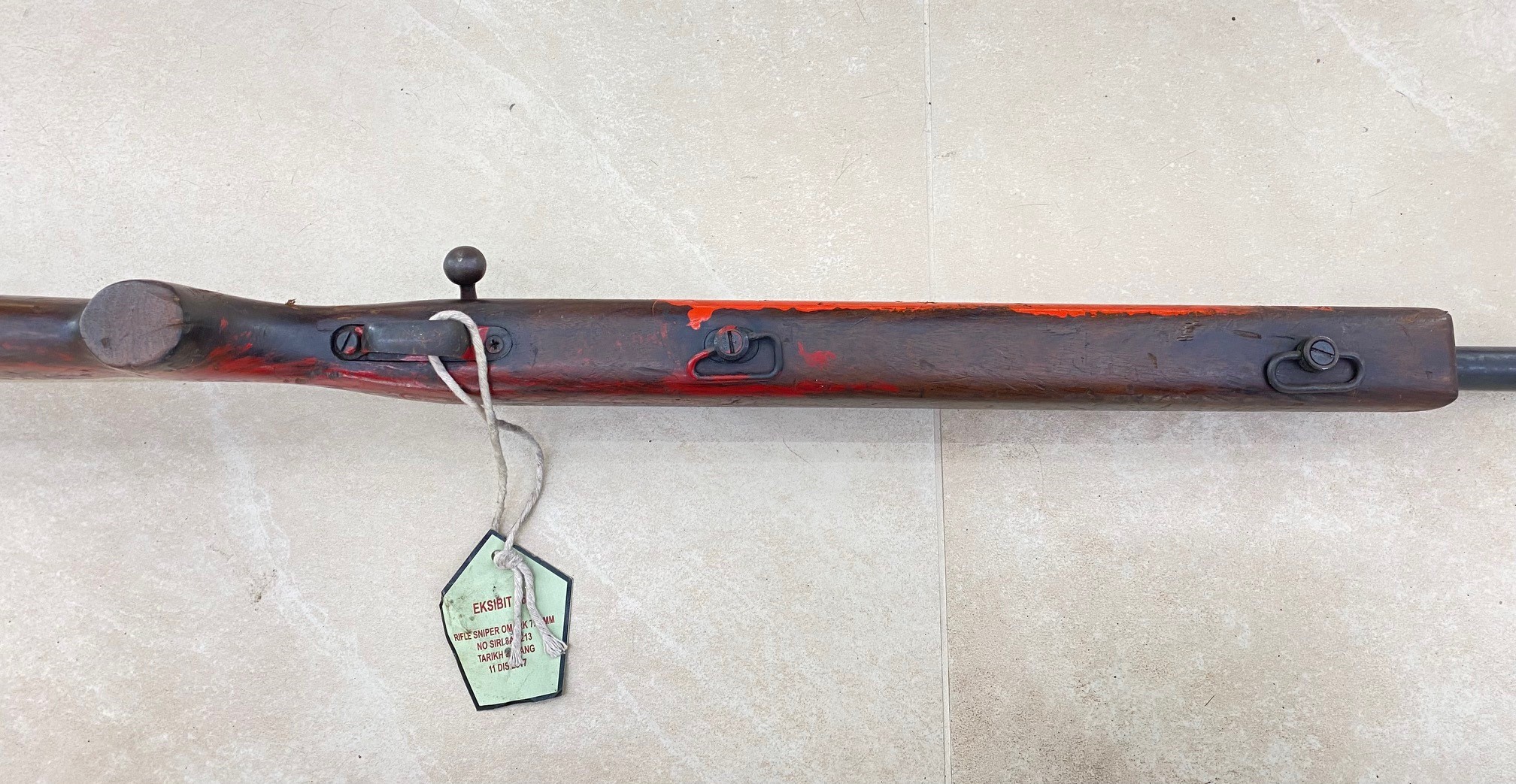

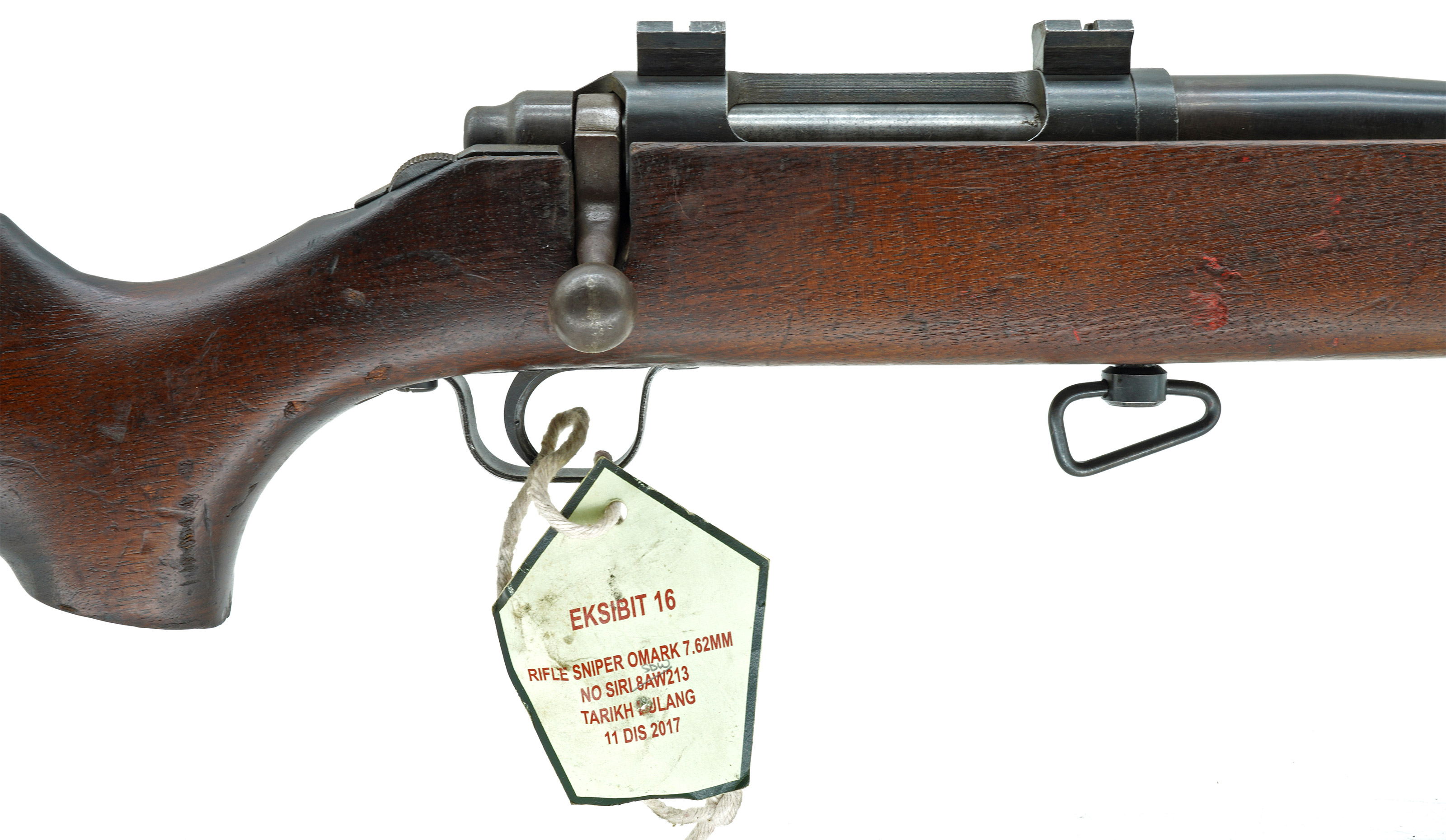

    The particular rifle originates from Malaysia. Note it has some Malaysian inscribed tags attached to it too. The one added to the trigger guard (according to Google Translator) reads as "Exhibit 1" over "Sniper Rifle Omark 7.62mm" over "No SDW213") over "Repeat Date (?)" over "11th December 2017". The sticker attached to the stock is similar and translated as "Sniper Rifle Omark 7.62mm serial number SDW213".


    Does anyone know if Malaysia officially used these as sniper rifles? Or any other information possibly available on it? Can someone tell me, based on the serial, approx. when it was made?

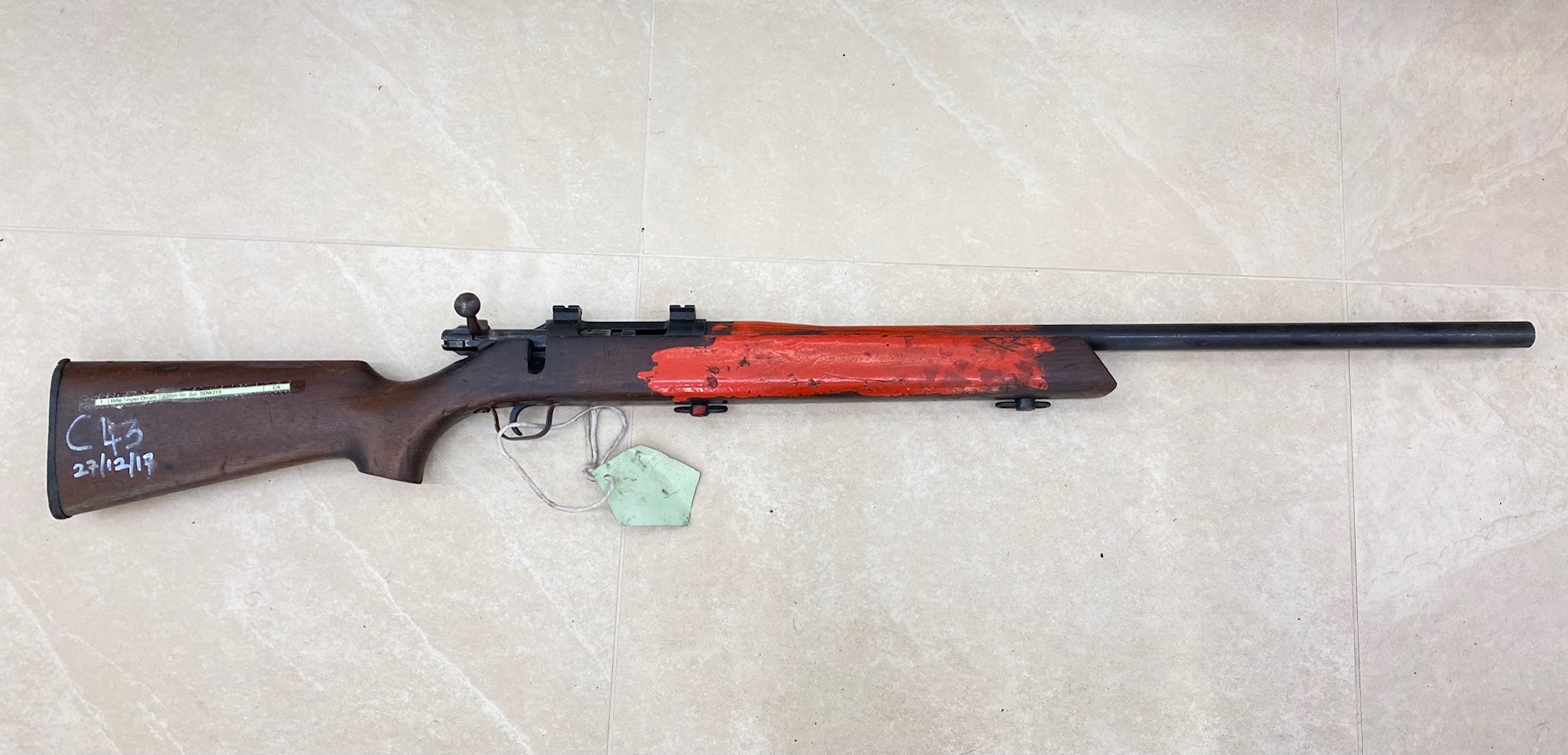

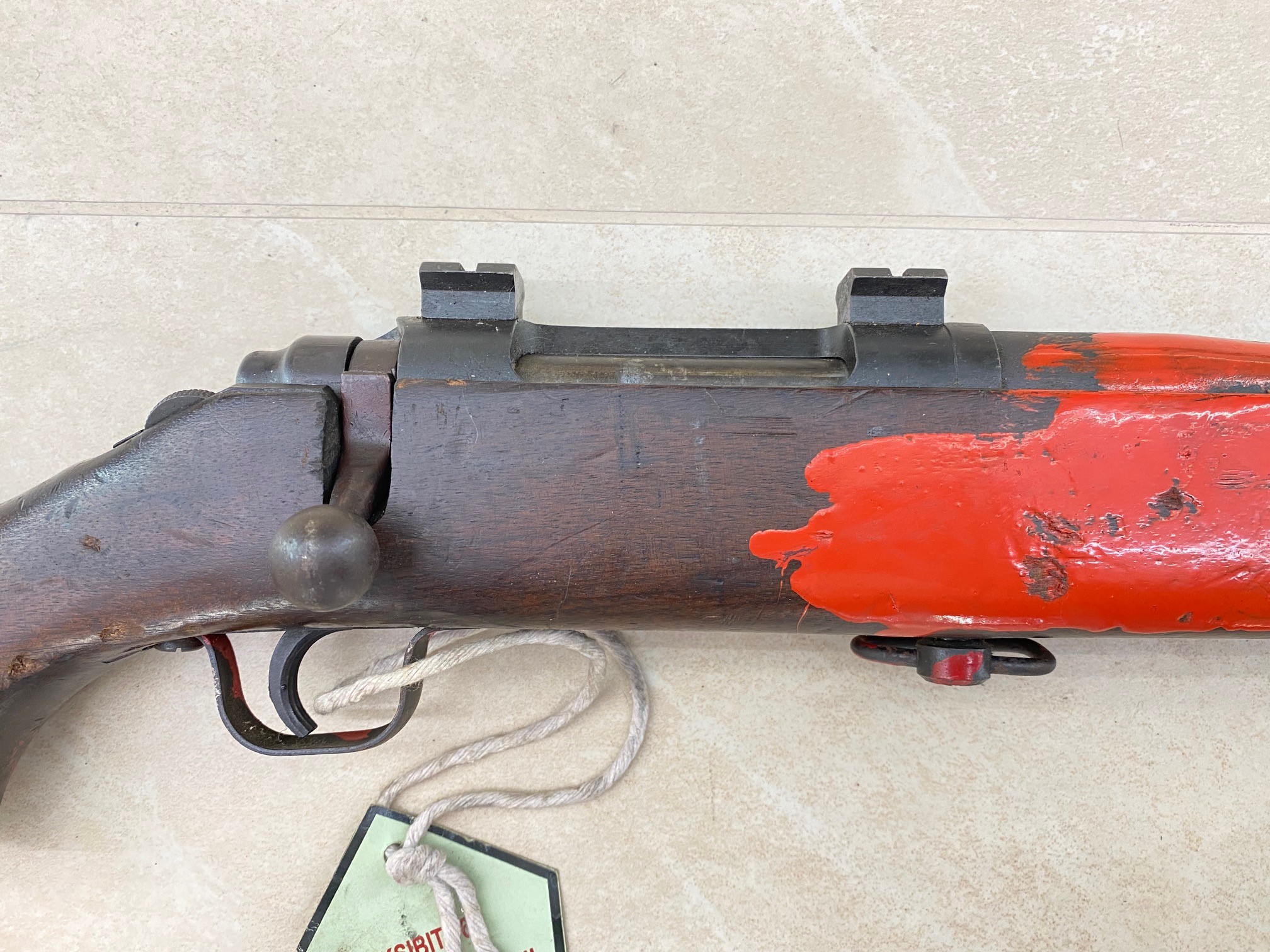

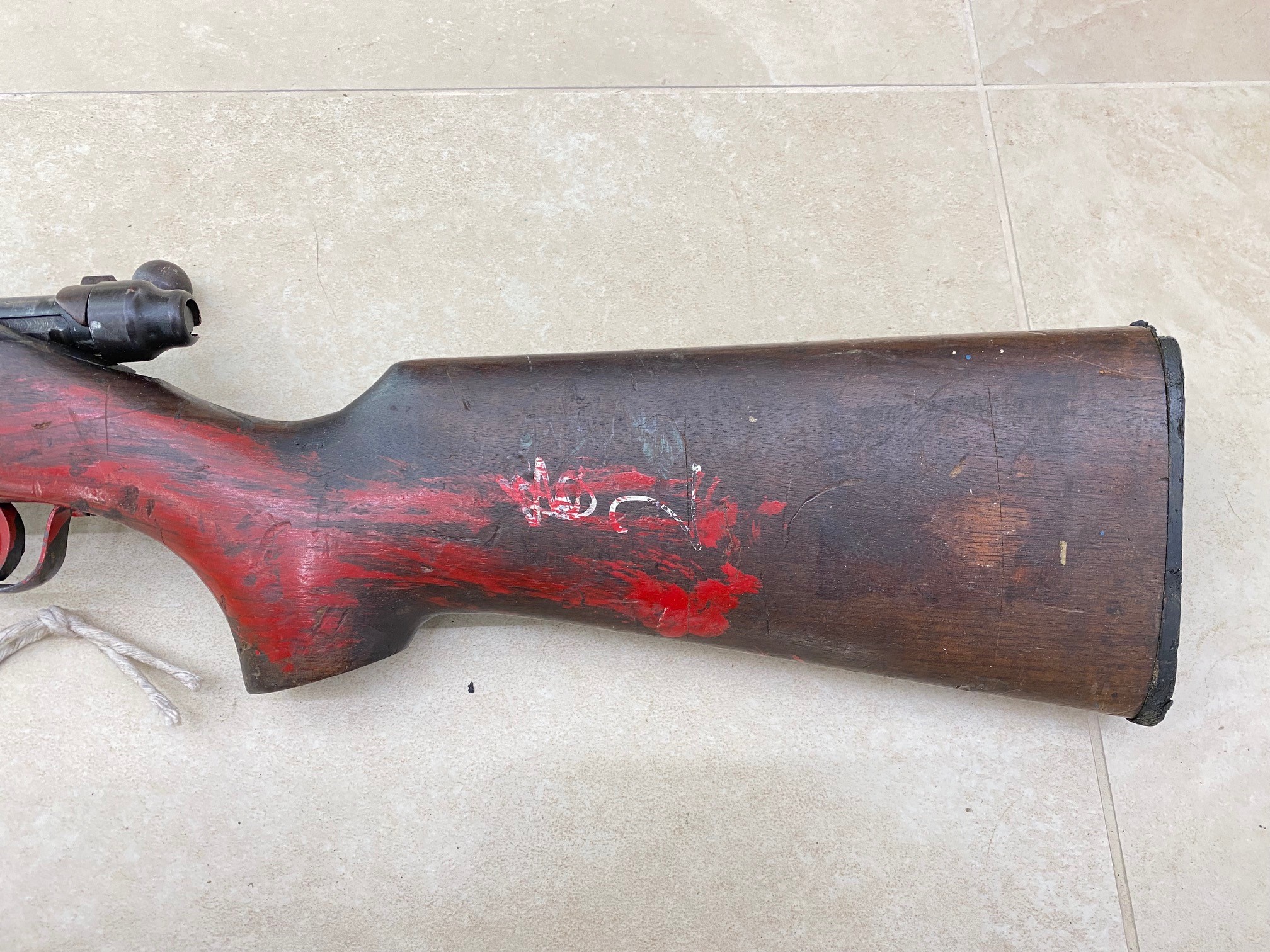

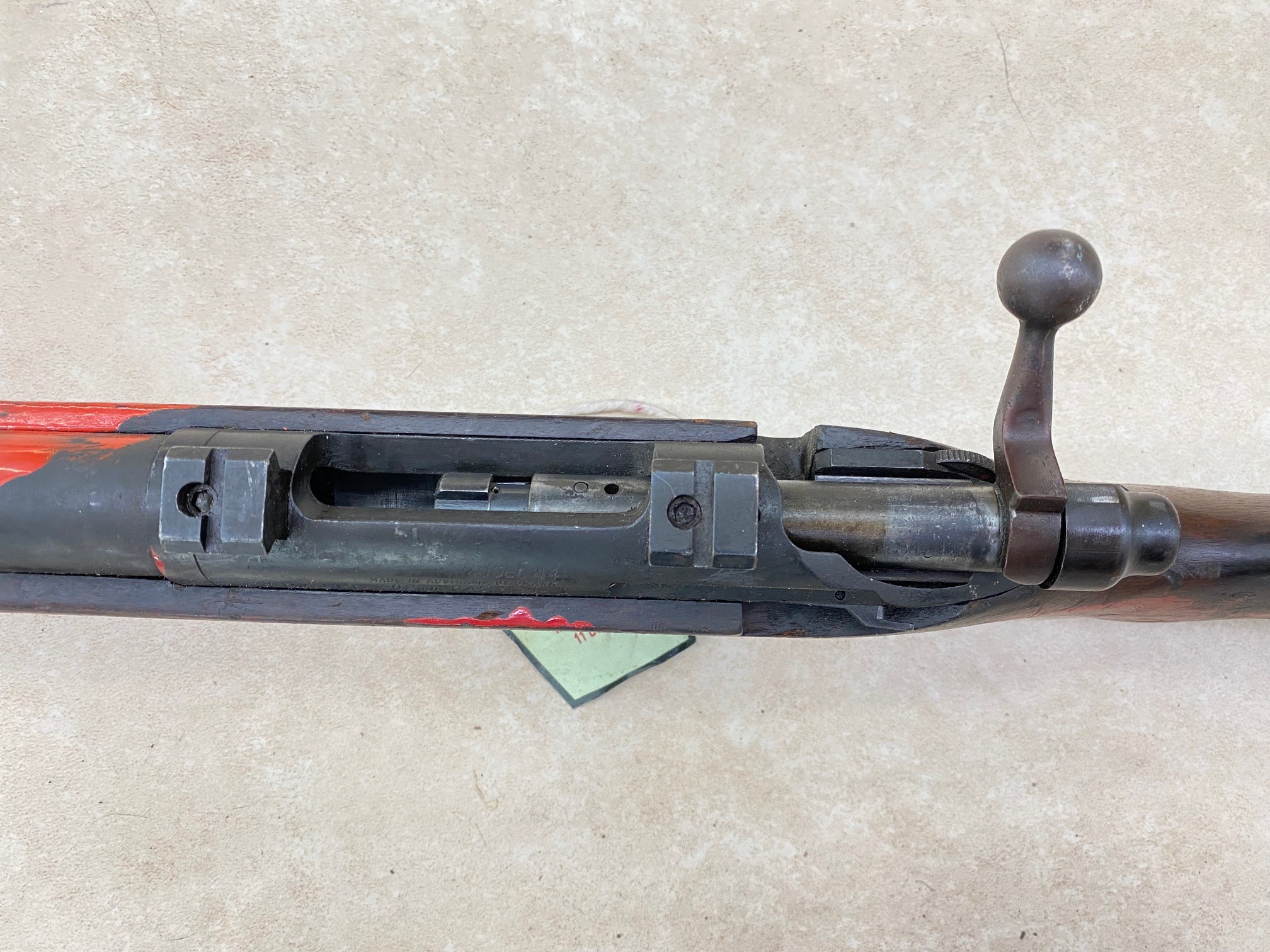

    PS: the red paint was used to mark rifles to be sold/unserviceable/withdrawn from service - at least I've been told that way. Yes, I know, still need to remove it.
    Information
    Warning: This is a relatively older thread
    This discussion is older than 360 days. Some information contained in it may no longer be current.
    Attached Thumbnails Click image for larger version

Name:	Model44_02.jpg‎
Views:	565
Size:	852.7 KB
ID:	126526   Click image for larger version

Name:	Model44_03.jpg‎
Views:	488
Size:	912.3 KB
ID:	126527   Click image for larger version

Name:	Model44_04.jpg‎
Views:	468
Size:	863.9 KB
ID:	126528   Click image for larger version

Name:	Model44_05.jpg‎
Views:	465
Size:	750.1 KB
ID:	126529   Click image for larger version

Name:	Model44_06.jpg‎
Views:	449
Size:	401.6 KB
ID:	126530   Click image for larger version

Name:	Model44_07.jpg‎
Views:	202
Size:	801.4 KB
ID:	126531   Click image for larger version

Name:	Model44_08.jpg‎
Views:	189
Size:	879.6 KB
ID:	126532

    Click image for larger version

Name:	Model44_09.jpg‎
Views:	180
Size:	622.2 KB
ID:	126533   Click image for larger version

Name:	Model44_01.jpg‎
Views:	220
Size:	384.5 KB
ID:	126525
    Last edited by Promo; 05-24-2022 at 05:44 AM.

  2. Thank You to Promo For This Useful Post:


  3. # ADS
    Friends and Sponsors
    Join Date
    October 2006
    Location
    Milsurps.Com
    Posts
    All Threads
    A Collector's View - The SMLE Short Magazine Lee Enfield 1903-1989. It is 300 8.5x11 inch pages with 1,000+ photo’s, most in color, and each book is serial-numbered.  Covering the SMLE from 1903 to the end of production in India in 1989 it looks at how each model differs and manufacturer differences from a collecting point of view along with the major accessories that could be attached to the rifle. For the record this is not a moneymaker, I hope just to break even, eventually, at $80/book plus shipping.  In the USA shipping is $5.00 for media mail.  I will accept PayPal, Zelle, MO and good old checks (and cash if you want to stop by for a tour!).  CLICK BANNER to send me a PM for International pricing and shipping. Manufacturer of various vintage rifle scopes for the 1903 such as our M73G4 (reproduction of the Weaver 330C) and Malcolm 8X Gen II (Unertl reproduction). Several of our scopes are used in the CMP Vintage Sniper competition on top of 1903 rifles. Brian Dick ... BDL Ltd. - Specializing in British and Commonwealth weapons Specializing in premium ammunition and reloading components. Your source for the finest in High Power Competition Gear. Here at T-bones Shipwrighting we specialise in vintage service rifle: re-barrelling, bedding, repairs, modifications and accurizing. We also provide importation services for firearms, parts and weapons, for both private or commercial businesses.


  4. #2
    Contributing Member CINDERS's Avatar
    Join Date
    Nov 2009
    Last On
    Yesterday @ 08:42 AM
    Location
    South West Western Australia
    Posts
    7,730
    Real Name
    CINDERS
    Local Date
    03-19-2024
    Local Time
    02:10 PM
    Just check that it has the larger pin installed in the floating bolt head this was a mandatory thing to be done if you wanted to shoot the rifles in competitions or on rifle ranges in Australiaicon.
    The reason being a competition shooter years ago allot of years I may add the small bolthead pin failed for what ever reason allowing the bolt body to exit the action and hitting the shooter on the Rt side of his face with resultant non fatal devastating injuries.
    I've owned and competed with an Omark in 7.62mm (Rubber gun we call that calibre) mine had a Black mountain barrel, they are still accurate but find it hard to compete with the likes of Barnard actions
    tbonesmithicon in Sydney Aus may know the dimensions of the larger pin.

  5. Avoid Ads - Become a Contributing Member - Click HERE
  6. #3
    Legacy Member WGB-762's Avatar
    Join Date
    Mar 2017
    Last On
    Yesterday @ 11:19 PM
    Location
    Newcastle, NSW, Australia
    Posts
    15
    Real Name
    William B.
    Local Date
    03-19-2024
    Local Time
    05:10 PM

    Bolt Pin

    Re: Bolt Head Pin in M44's.
    Just checked the five (!) I have on the wall, and the pin od's are 5.5 and 7 mm.
    Latest I have is an early '80's 'D' model, bought new, SDX2nn, and it came standard with the large pin, and interestingly did not have a 'safety' fitted, by that time it was 'bolts out'.

    (I have a pic of said pin, can't quite see how to add attachment).
    Collector of Sportco/Omark, LE No.1 & No.4, P-H 1200TX; Browning Hi-Power/GP-35

  7. #4
    Legacy Member Omark's Avatar
    Join Date
    Aug 2016
    Last On
    03-16-2024 @ 11:21 PM
    Location
    New zealand
    Posts
    31
    Real Name
    Aaron
    Local Date
    03-19-2024
    Local Time
    07:10 PM
    Quote Originally Posted by Promo View Post
    For lack of a better fitting subforum I thought period-wise it would correspond the best with the PH rifles ..


    Having picked up yesterday a by then to me unknown single shot bolt action rifle on occasion I had wondered if there is more to learn on these rifles. The particular rifle has scope bases, as well as the lack of a open rear sight and absolutely no holes for a front sight indicate it was always and only used with a scope, which unfortunately seems to be gone.


    I read these were extensively trialed by the Australianicon Army, but were never introduced for being single shot only. Does anyone know with which scope (and scope mount) they were tested?


    The particular rifle originates from Malaysia. Note it has some Malaysian inscribed tags attached to it too. The one added to the trigger guard (according to Google Translator) reads as "Exhibit 1" over "Sniper Rifle Omark 7.62mm" over "No SDW213") over "Repeat Date (?)" over "11th December 2017". The sticker attached to the stock is similar and translated as "Sniper Rifle Omark 7.62mm serial number SDW213".


    Does anyone know if Malaysia officially used these as sniper rifles? Or any other information possibly available on it? Can someone tell me, based on the serial, approx. when it was made?



    PS: the red paint was used to mark rifles to be sold/unserviceable/withdrawn from service - at least I've been told that way. Yes, I know, still need to remove it.
    I’ve never seen any concrete evidence that 44s were trialed or used apart from use by army and other services rifle team members. I’m sure some of the marksman amongst them would have tried fitting scopes etc but nothing was ever official to the best of my knowledge.

  8. #5
    Contributing Member CINDERS's Avatar
    Join Date
    Nov 2009
    Last On
    Yesterday @ 08:42 AM
    Location
    South West Western Australia
    Posts
    7,730
    Real Name
    CINDERS
    Local Date
    03-19-2024
    Local Time
    02:10 PM
    I shot with mine in the late '70's they never had a safety catch installed it was as you say bolts out before you left the mound, nowdays we have to have the check scorer clear the action with the bolt out then put the breech flag in before leaving the mound the flag having to stay in at all times.

    An interesting story from my early days of shooting at the Harvey Rifle range which believe it or not had the High school on one side of us and on the right hand side we had the town cemetery and at times because there were bush tracks behind the stop butts had to stop firing due to trail bike riders roaring around behind the butts!!
    Anyway the mounds needed mowing and we had a nice chap who was 95% deaf that shot there came in to mow them Rob Holthouse a local chap our club was small only about 10-15 active shooters and our range was 300 yds - 700 yds any further and we would have been on the highway.
    Anyway Rob was happily mowing one of the mounds when unknown to him a loose round had been left there hidden in the long grass well the mowers blade hit fair on the primer setting the round off which blew a sizable chunk out the side of the mower and scared the living heck out of Rob, who never mowed the mounds again.
    I think we were paying 18 cents a round then as the army supplied our ammunition to us in those days, not now just a projectile costs around a $1 now!

    Information regarding post #4 - Omark Model 44 - Wikipedia para - 5

    Quote ~ The Omark Model 44 was tested as a sniper rifle by the Australianicon Defence Force but not adopted, as it is single shot only and the design could not easily be changed to a repeater
    Last edited by CINDERS; 05-25-2022 at 03:42 AM.

  9. #6
    Contributing Member Promo's Avatar
    Join Date
    Oct 2009
    Last On
    @
    Location
    Europe
    Posts
    1,842
    Local Date
    03-19-2024
    Local Time
    07:10 AM
    Thread Starter
    Quote Originally Posted by Omark View Post
    I’ve never seen any concrete evidence that 44s were trialed or used apart from use by army and other services rifle team members. I’m sure some of the marksman amongst them would have tried fitting scopes etc but nothing was ever official to the best of my knowledge.
    Do you know if the Australianicon Army trialed these rifles with scopes? If yes, do you know which one?

  10. #7
    Contributing Member CINDERS's Avatar
    Join Date
    Nov 2009
    Last On
    Yesterday @ 08:42 AM
    Location
    South West Western Australia
    Posts
    7,730
    Real Name
    CINDERS
    Local Date
    03-19-2024
    Local Time
    02:10 PM
    Not sure if Peter Laidlericon would be able to answer that one or have knowledge of the facts, as he was over in Aus for a time.

  11. #8
    Contributing Member Promo's Avatar
    Join Date
    Oct 2009
    Last On
    @
    Location
    Europe
    Posts
    1,842
    Local Date
    03-19-2024
    Local Time
    07:10 AM
    Thread Starter

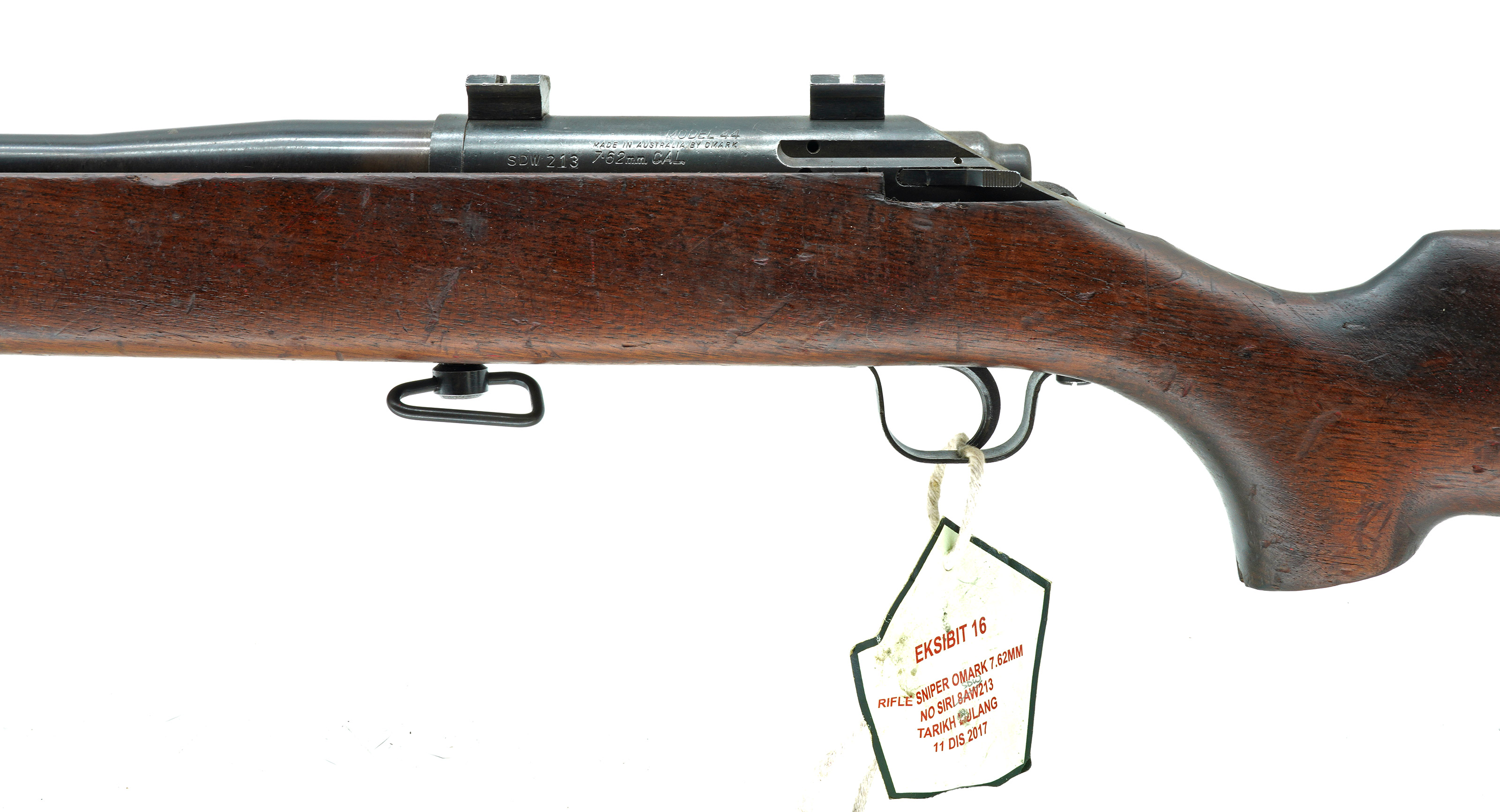

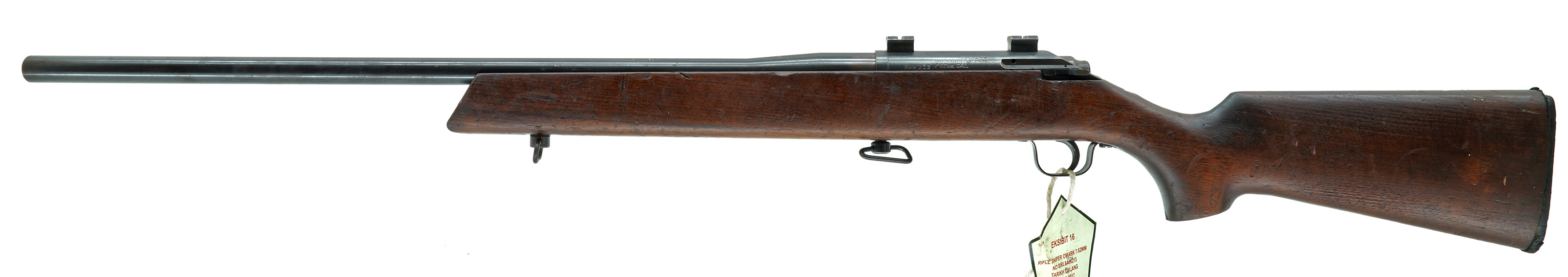

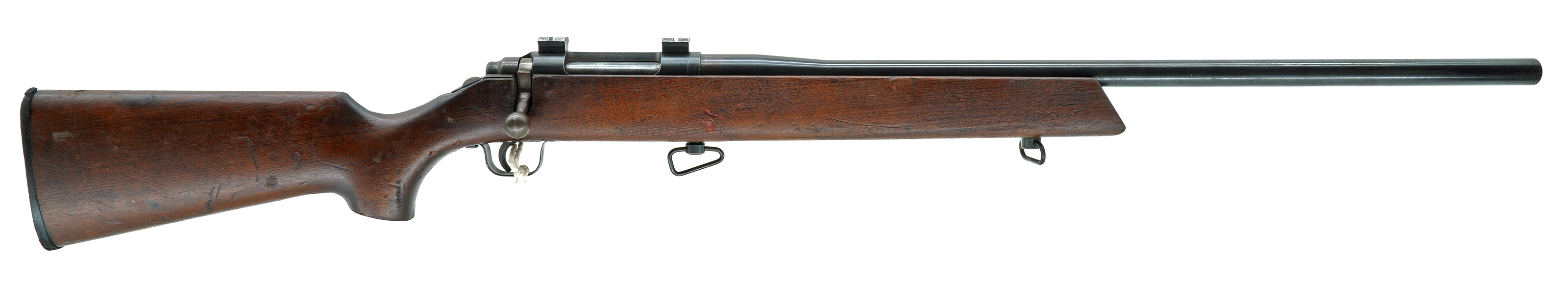

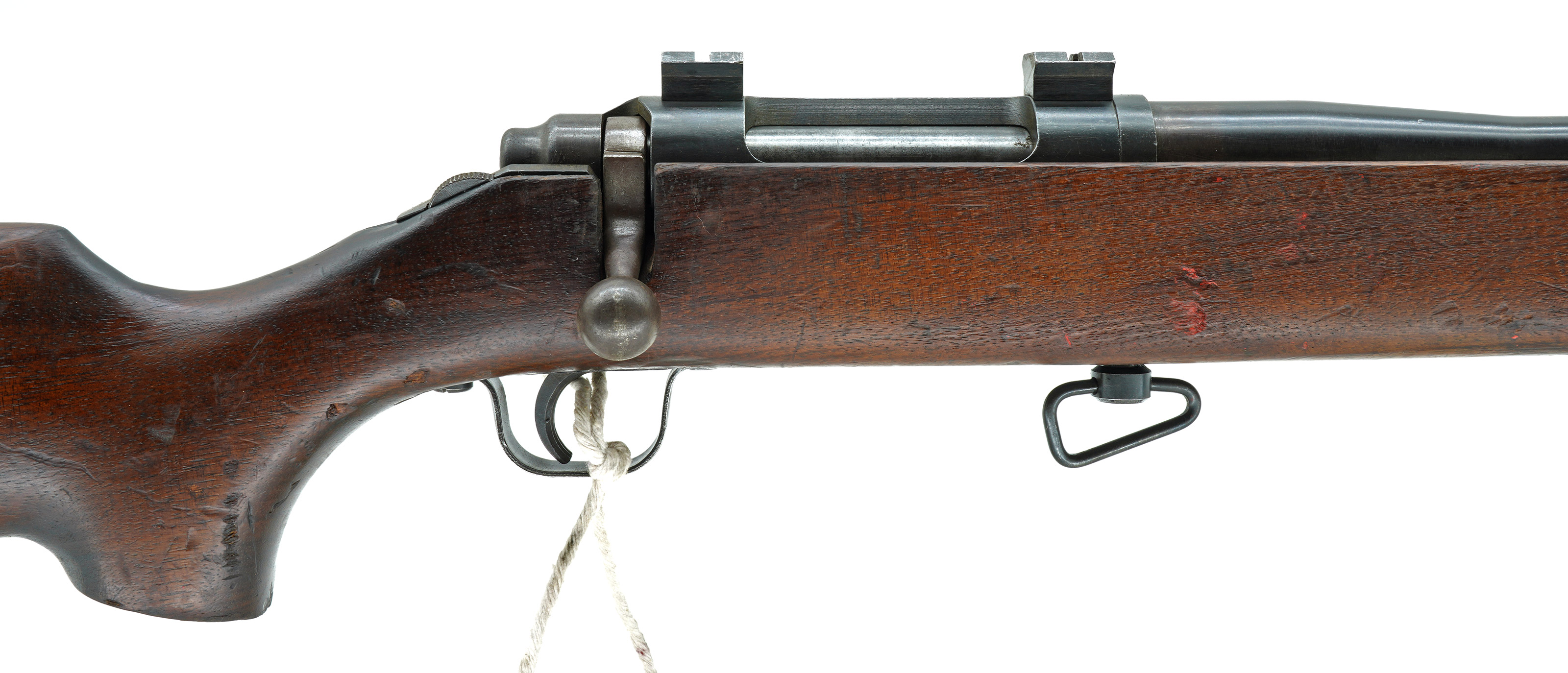

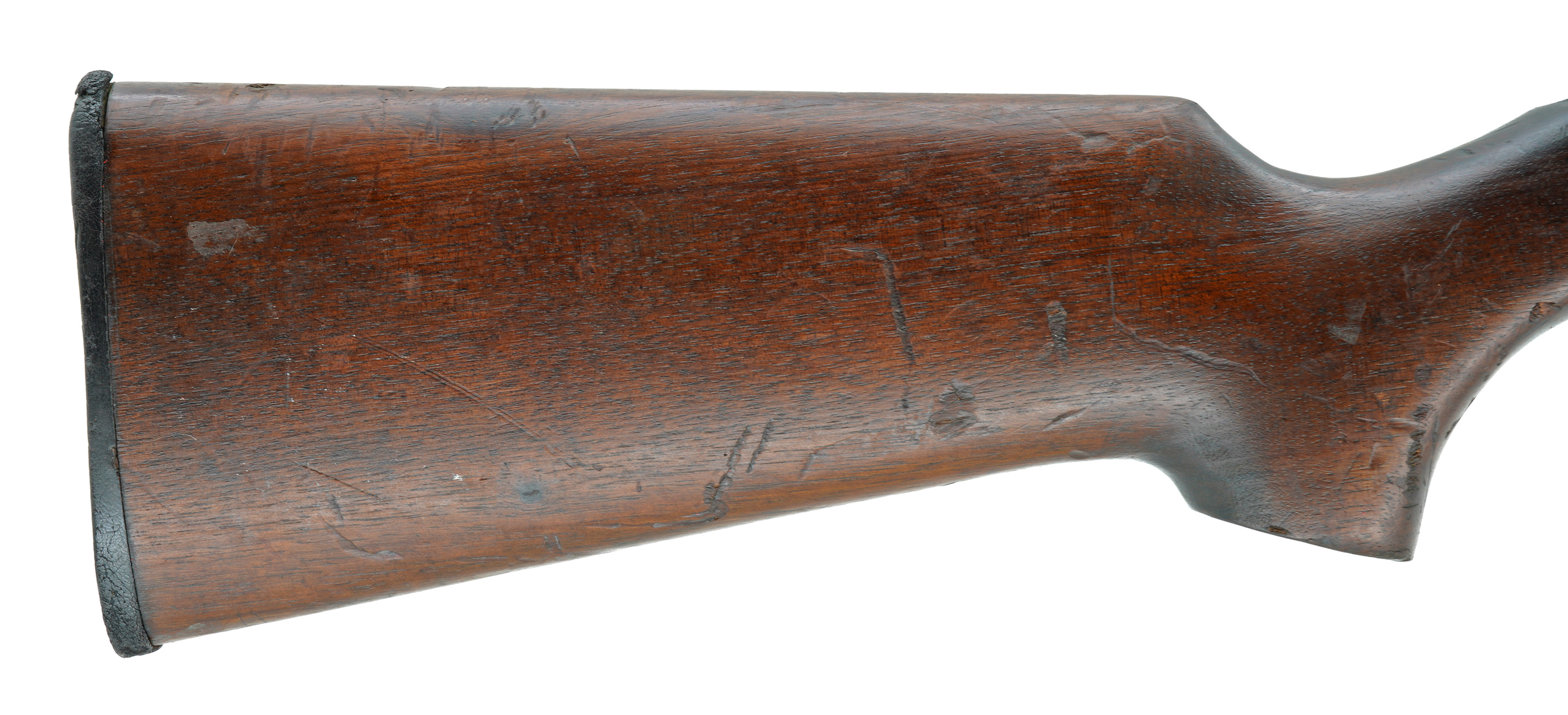

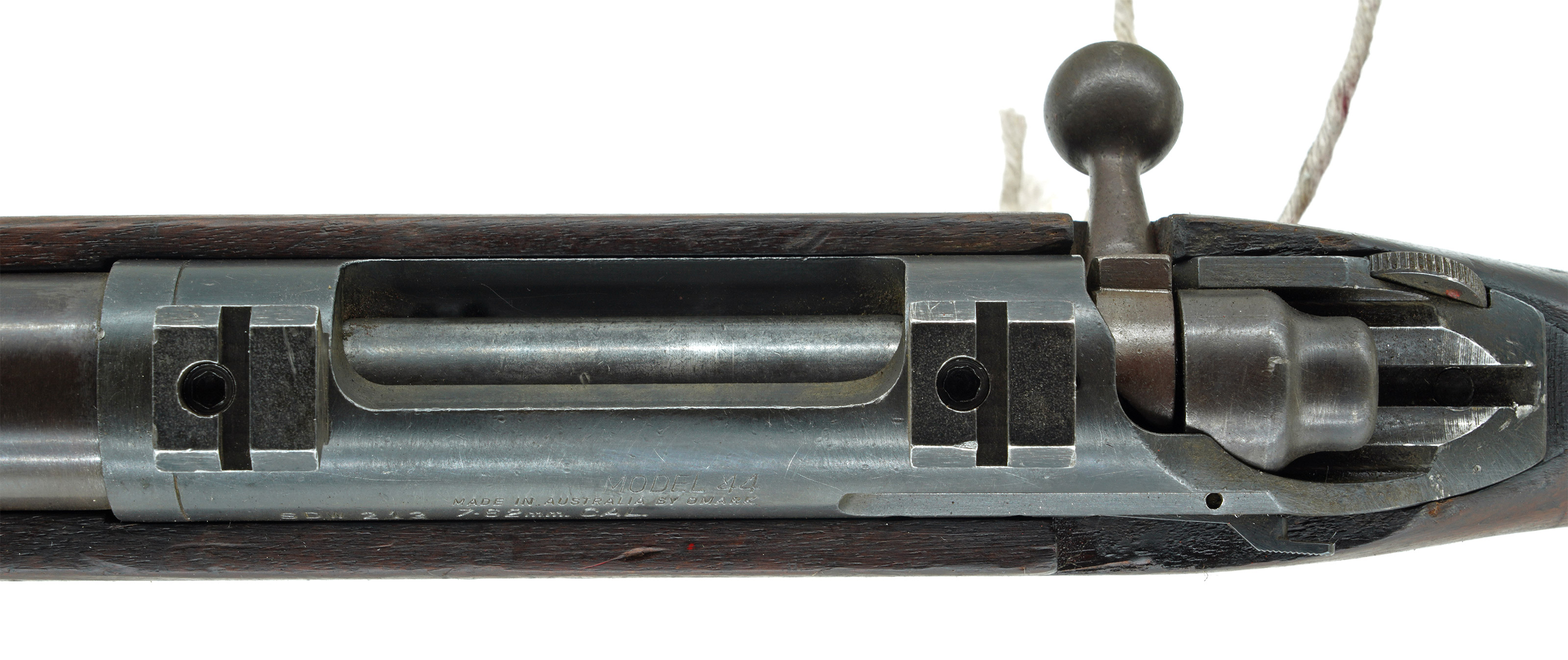

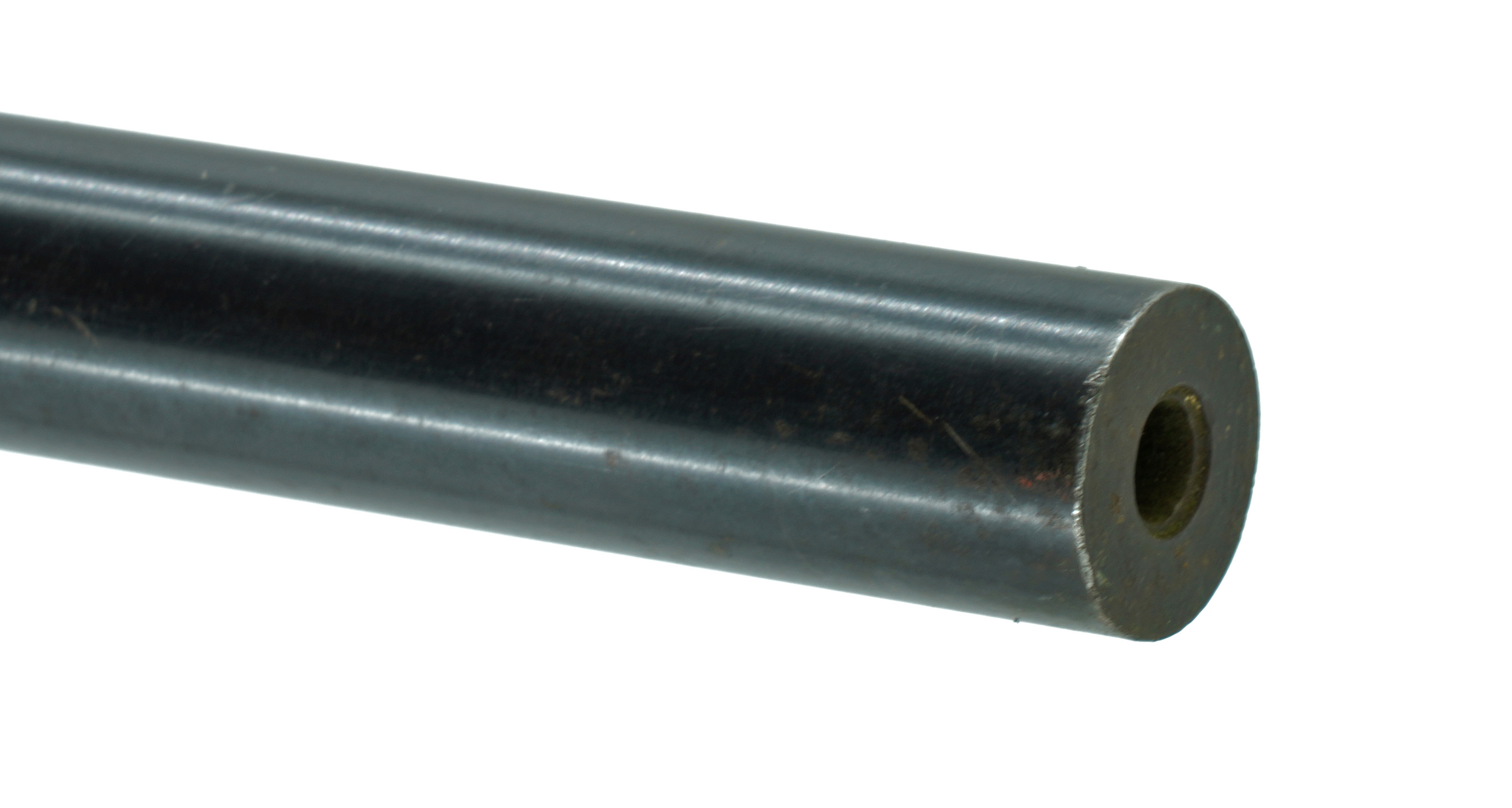

    I stripped that red paint from the stock and took better pictures. Find them attached. And yes, of course I preserved the sticker that was attached to the stock.

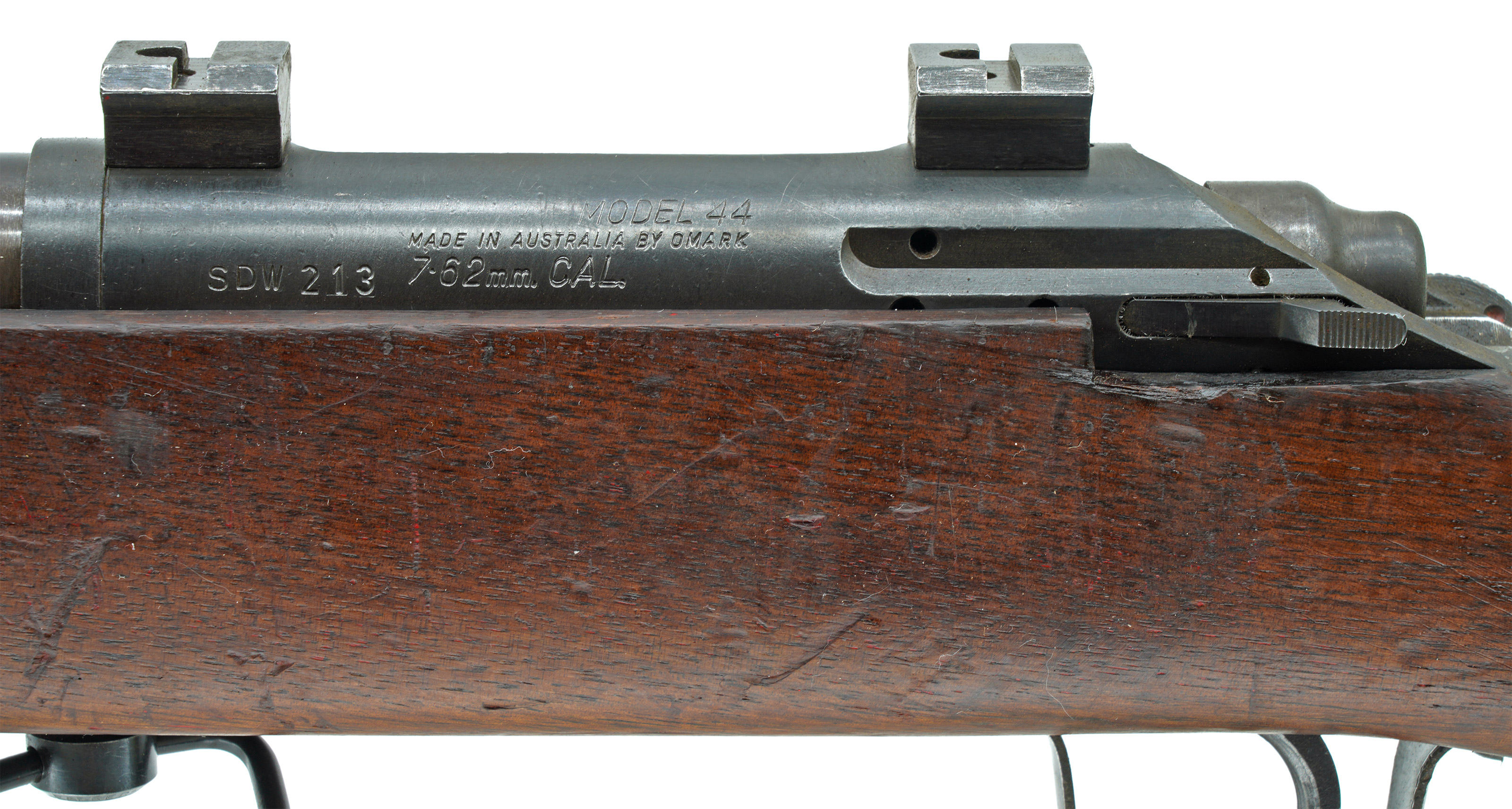

    The bolt matches the serial of the rifle (with full letter prefix on the underside of the handle), the stock on the inside is also serialized to match the action (without letters). Note there is no provision for a front sight on the barrel. Also the holes on the receiver for the rear sight are covered by wood - it never had open sights on it. Edit: forgot to mention, the middle swivel is Parker Hale stamped with a part number on it additionally.











    Attached Thumbnails Click image for larger version

Name:	Omark44_09.jpg‎
Views:	1200
Size:	1.39 MB
ID:	126569   Click image for larger version

Name:	Omark44_08.jpg‎
Views:	1203
Size:	782.3 KB
ID:	126568   Click image for larger version

Name:	Omark44_07.jpg‎
Views:	1104
Size:	197.9 KB
ID:	126567   Click image for larger version

Name:	Omark44_06.jpg‎
Views:	1083
Size:	736.8 KB
ID:	126566   Click image for larger version

Name:	Omark44_05.jpg‎
Views:	1155
Size:	900.3 KB
ID:	126565   Click image for larger version

Name:	Omark44_04.jpg‎
Views:	1094
Size:	345.1 KB
ID:	126564   Click image for larger version

Name:	Omark44_03.jpg‎
Views:	1146
Size:	787.6 KB
ID:	126563

    Click image for larger version

Name:	Omark44_02.jpg‎
Views:	1118
Size:	1,004.1 KB
ID:	126562   Click image for larger version

Name:	Omark44_01.jpg‎
Views:	1127
Size:	207.4 KB
ID:	126561

  12. The Following 2 Members Say Thank You to Promo For This Useful Post:


  13. #9
    Contributing Member desperatedan's Avatar
    Join Date
    Apr 2011
    Last On
    Yesterday @ 06:27 PM
    Location
    Scotland
    Posts
    322
    Real Name
    Kev D.
    Local Date
    03-19-2024
    Local Time
    06:10 AM
    Georg

    If you've not seen it already here's a link to the AWM citation in that Wiki article quoted above (it's original link is dead). There are a couple of pictures which might be of interest. The rear PH target sight looks like it fixes above that rear scope mount and uses the top screw hole in the receiver. Interesting to see how a foresight is mounted too.

    I wouldn't be surprised if it turns out they used a ZF69 scope for that trial. Same as the PH M82.

    Omark (Sportco) M44 Target Rifle | Australian War Memorial -

  14. #10
    Contributing Member Promo's Avatar
    Join Date
    Oct 2009
    Last On
    @
    Location
    Europe
    Posts
    1,842
    Local Date
    03-19-2024
    Local Time
    07:10 AM
    Thread Starter
    After some trying I finally figured that (at least in my Browser) I need to click the image and drag it to the left to see the second picture. Interesting, this would then mean the same rear sight would work on my rifle, despite my rifle does not have the stock cut lower to clear the two holes in front of the bolt release, as done to the AWM rifle. Mine does not have a compartment to the pistol grip. Based on these pictures I cannot make out how the front sight was mounted to this rifle.


    Speaking today on a phone with a friend of mine and knowing (based on a GB thread) the serial of my rifle dates it to 1986 I said to him maybe the original scope on it was actually a Kahles ZF69 (but then thought the bases might be a bit too high for this). Now you make me want to try and find out if Parker-Hale rings would actually fit these bases. Only where to get them ..
