Swift Training Rifle

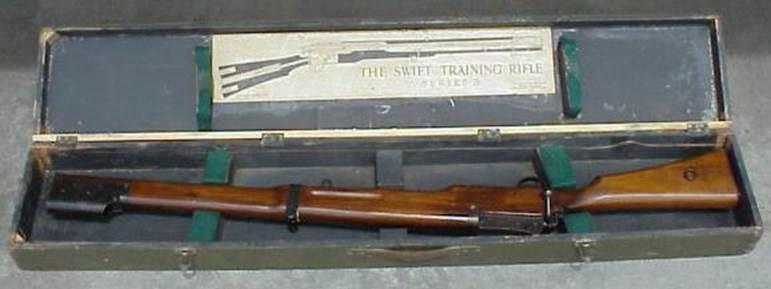

The Swift Trainer in transit case.

The Swift Training Rifle was a unique design that incorporated a spring loaded butt plate that had to be firmly held into the shoulder before the rifle would "fire". Firing actually only consisted of launching a pin which would mark a paper target. The rifle was designed as an aid in teaching holding, aiming and firing without the requirement of an actual rifle range. This enabled training staff to conduct instruction right in the classroom, before moving to a range for actual live firing.

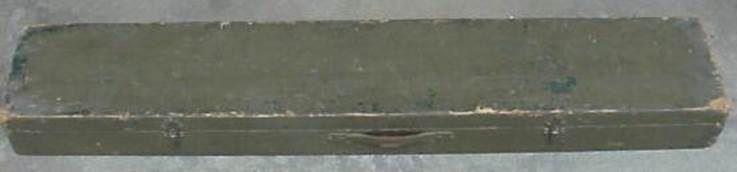

The Transit Case.

Label inside of Transit Case.

Close-up of the label with the Swift company address.

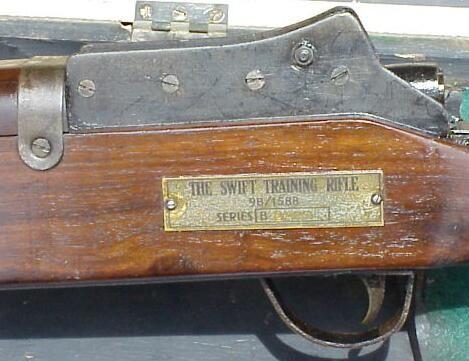

Receiver with metal plate. Note how the receiver has the look of the P-14 rifle.

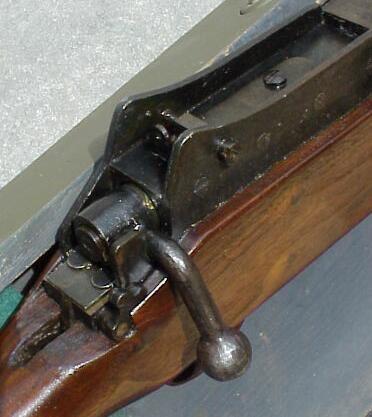

The Bolt.

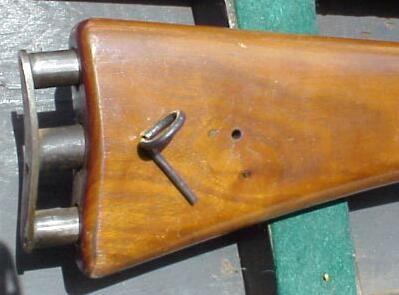

Butt of trainer showing the safety pin inserted and the spring loaded butt plate.

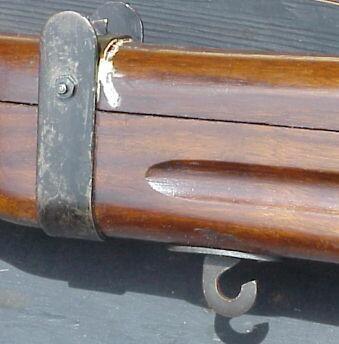

This image details the hook on the bottom of the rifle, which was used to mount it to a tripod.

The front blade sight.

Images courtesy of Chris Cone
