COMPASS, PRISMATIC, Mk3 Restoration?

[Gurn]

Will do.

Information

Warning: This is a relatively older thread This discussion is older than 360 days. Some information contained in it may no longer be current.

[Gurn]

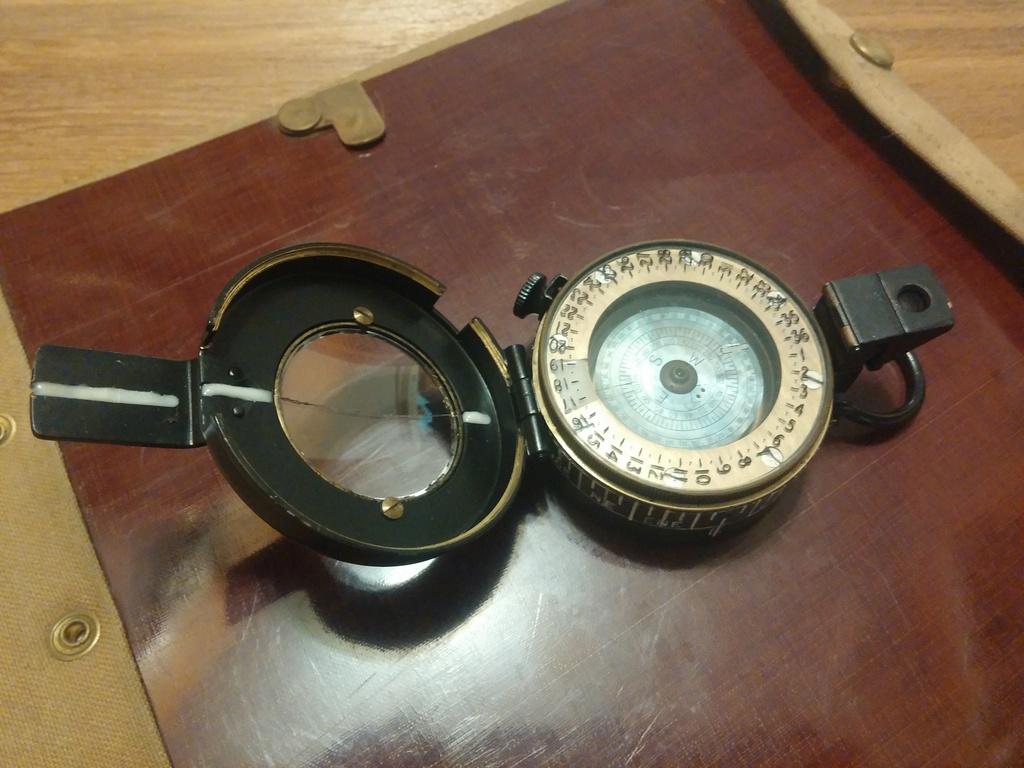

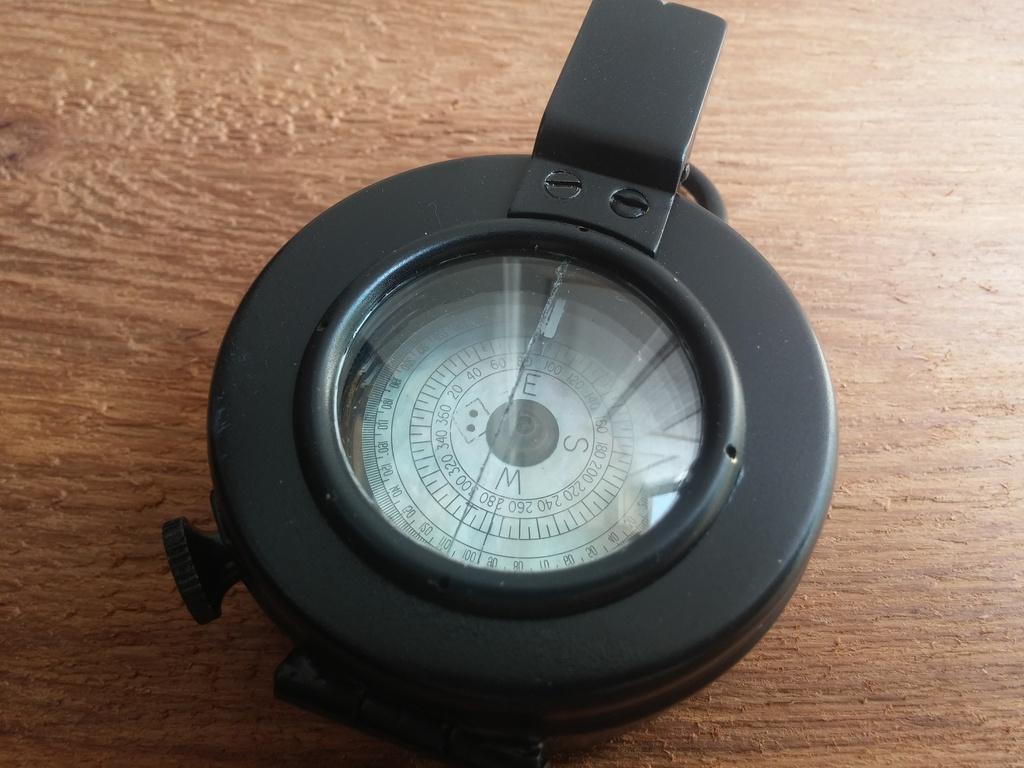

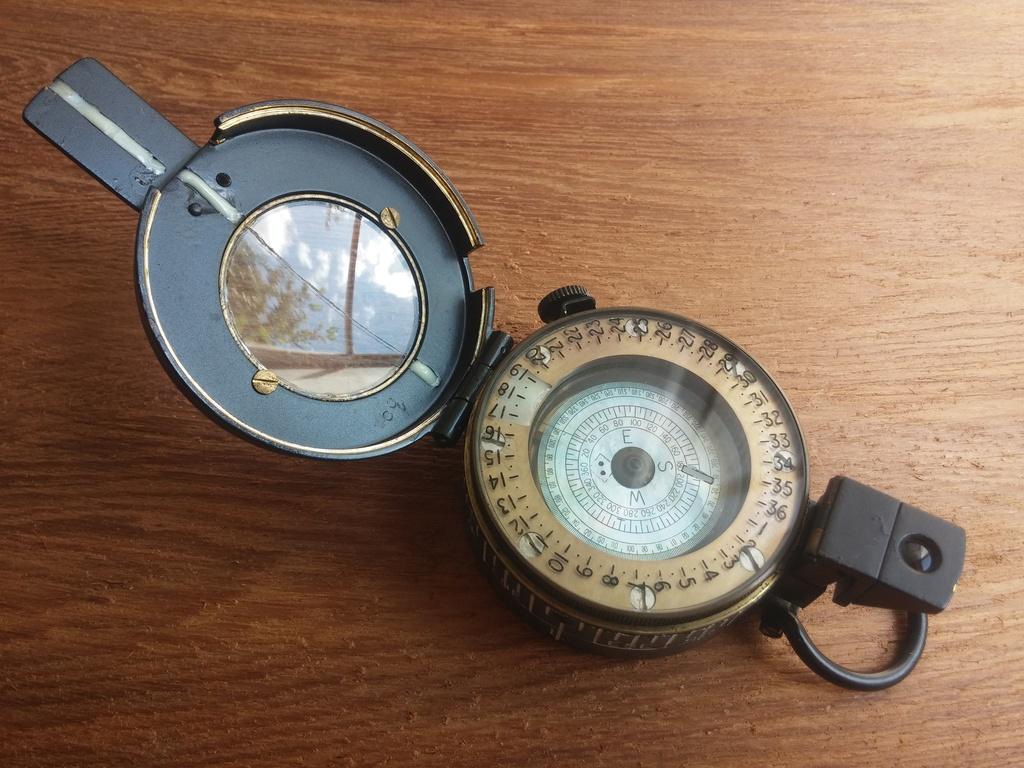

More work today. Cover window glass was broken so found the right size pocket watch crystal and scribed a line and filled with black paint. Not perfect but I only have two crystals that are the right size so its going to do. Glued that in place then started on the white fill. That is tricky. I found the only way to decently do it is to use water base gloss and dab it on in a small area at a time. Then quickly wipe with my finger. Tried doing it with damp cloth and with dry cloth but most of the paint in the groves came out too. When its dry I hope to be able to clean it up a little better. Next I made up a little glow paste. Used some clear adhesive and mixed in the glow powder. I could have just used white paint but this looks a little more original to me .

More to come.

[Gurn]

The job is done. So far no leaks from the seals. The best part, no radiation readings. The wife wont worry about it being in the house now.
