    British Pattern 1914 with No. 32 Mk.I scope

    I now finally have a very long term project back in my hands. It all started years ago, with having seen a drawing of this setup here on the forum, but without dimensions.

    Possibly a year later I finally got hold of the original drawings - Simon had copied them in the Pattern Room a very long time ago. I promised him that if I ever have one of those made, he‘ll get one too.

    Already drawing it in modern CAD was hell of work, but when it came to considering the production method the original drawing had suggested a casting. Since this would be way too much work for only a handful to be ever made, I decided to have it machined. Due to the complexity and awful amount of curves, angles, holes, threadings, etc. this was another nightmare (for the machinist, not me) to get through.



    After having the handful mounts made from the machinist, Roger Payneicon was included in the „deal“ - I was being given a No. 32 Mk.I scope which Roger and Simon paid for, and on the other hand either of them will get a complete set of bracket with thumb screws (which by the way are of a larger threading size than the one from the normal No. 4 T, was quite a surprise when I tried to fit the normal No. 4 T bracket washer springs!). So we three would be the only one who would have one of them!

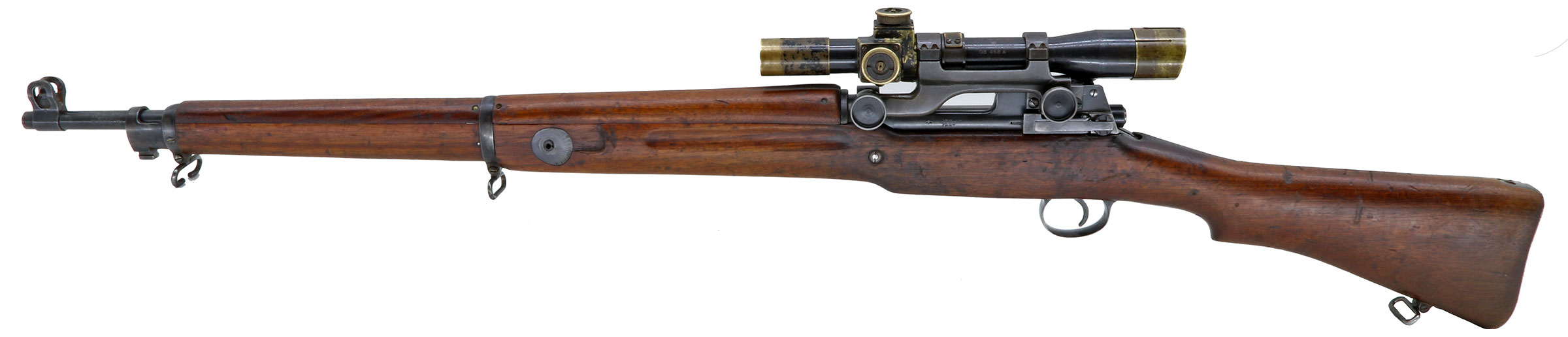

    I then was very fortunate to also run into a very nice all matching numbers Winchester P.14 rifle which did show traces of having been carried around, but still very nice with original markings all over present. I then spent many hours in my garage manually filing the bracket in a shape that it does not look milled any more but to give it a rather casted look. Prior to the filing the bracket was treated with a needle hammer to make the surface rougher. And I used pictures of original No. 4 T trials sniper brackets and tried to get as close as possible to the finish on those. The bracket was afterwards blued several times with cold blue, I think it did turn out very nice for that.

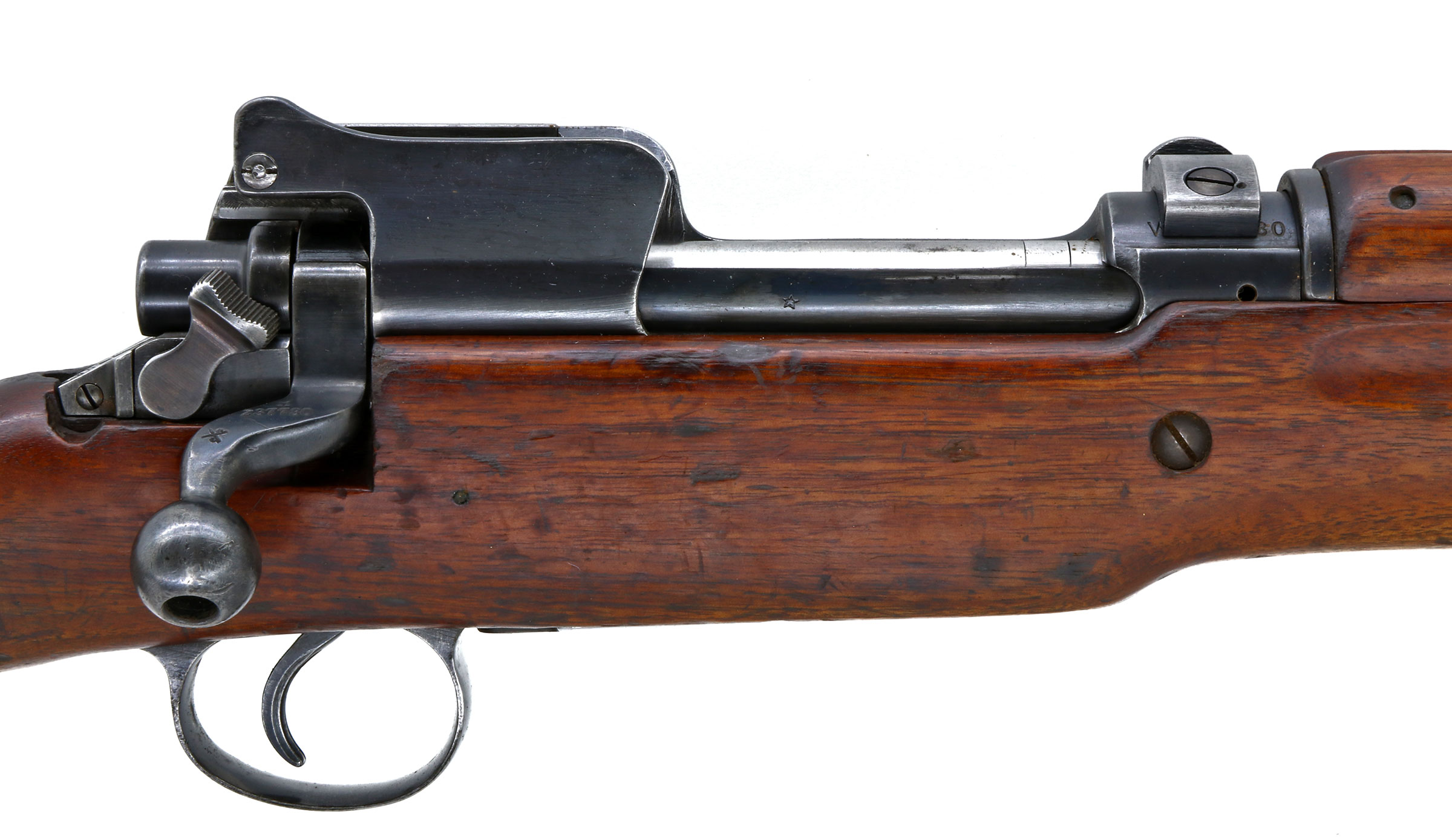

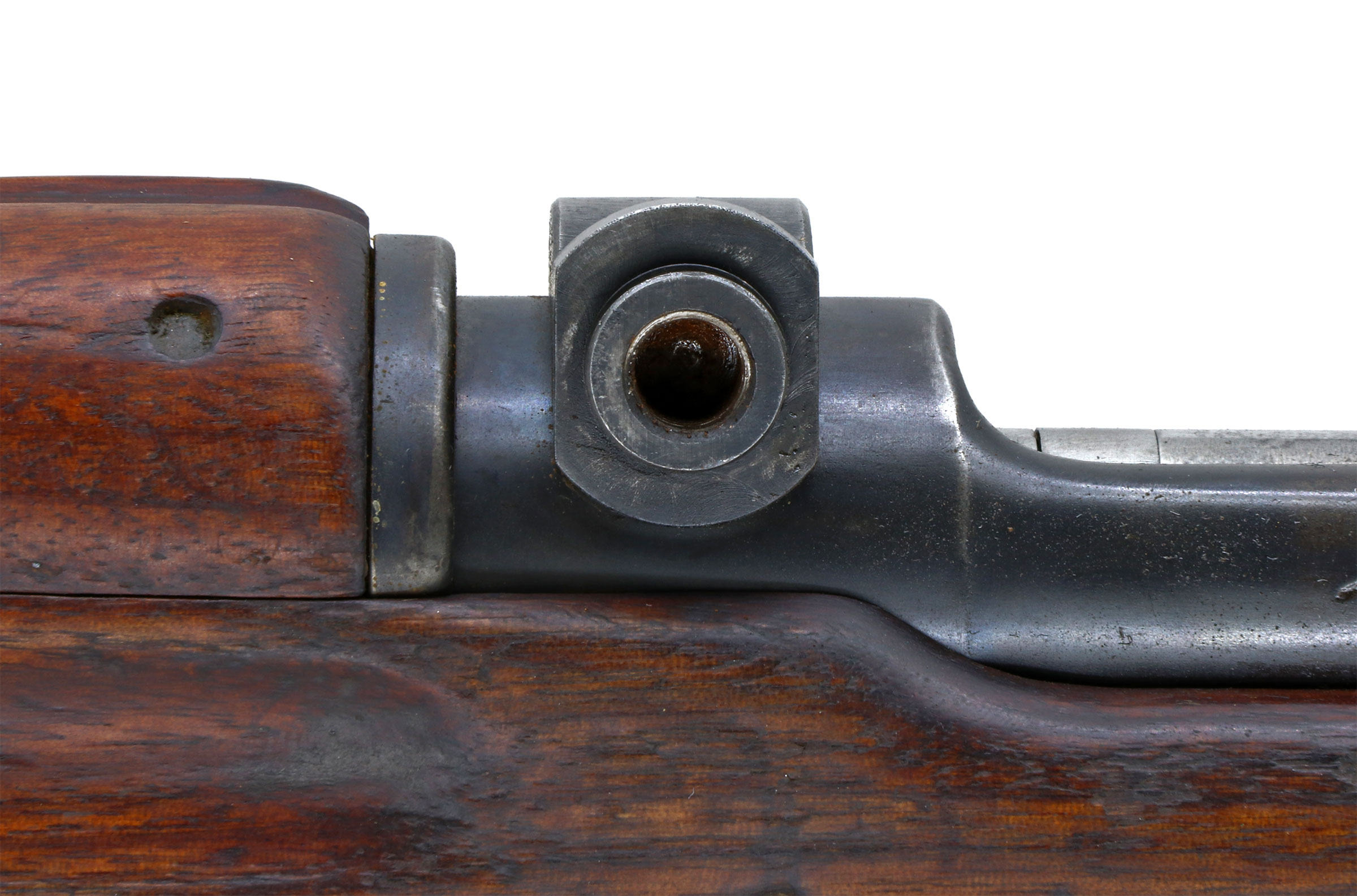

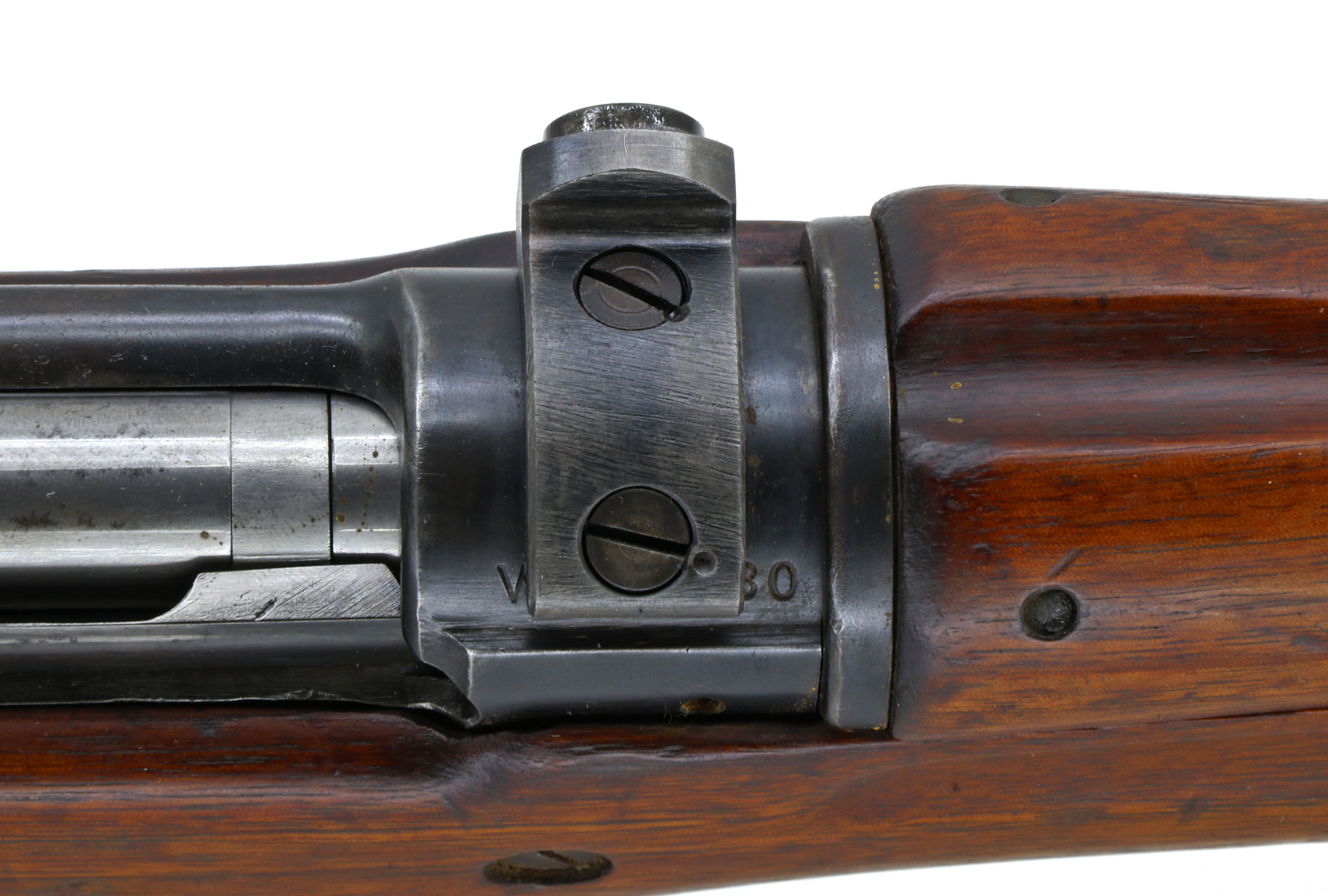

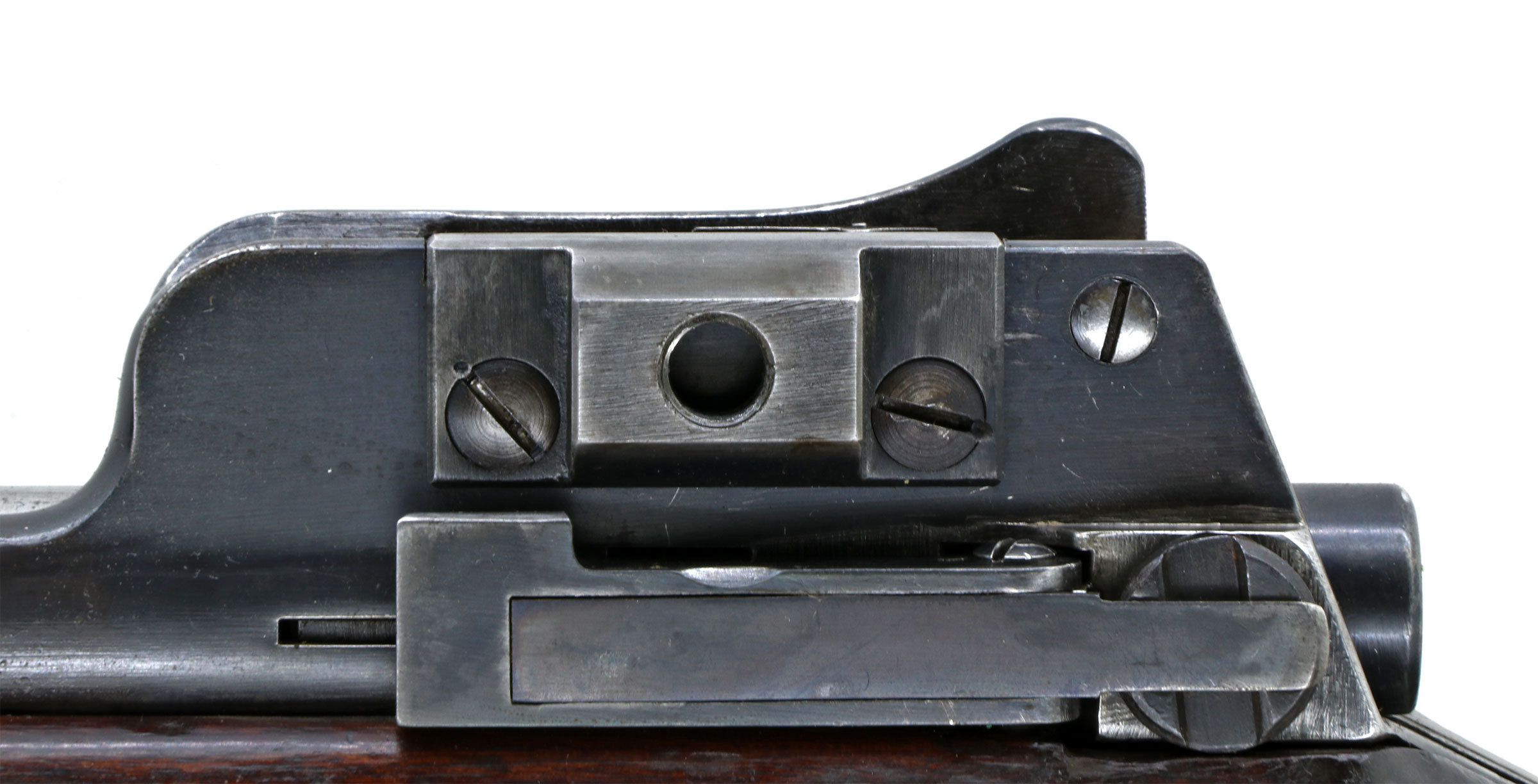

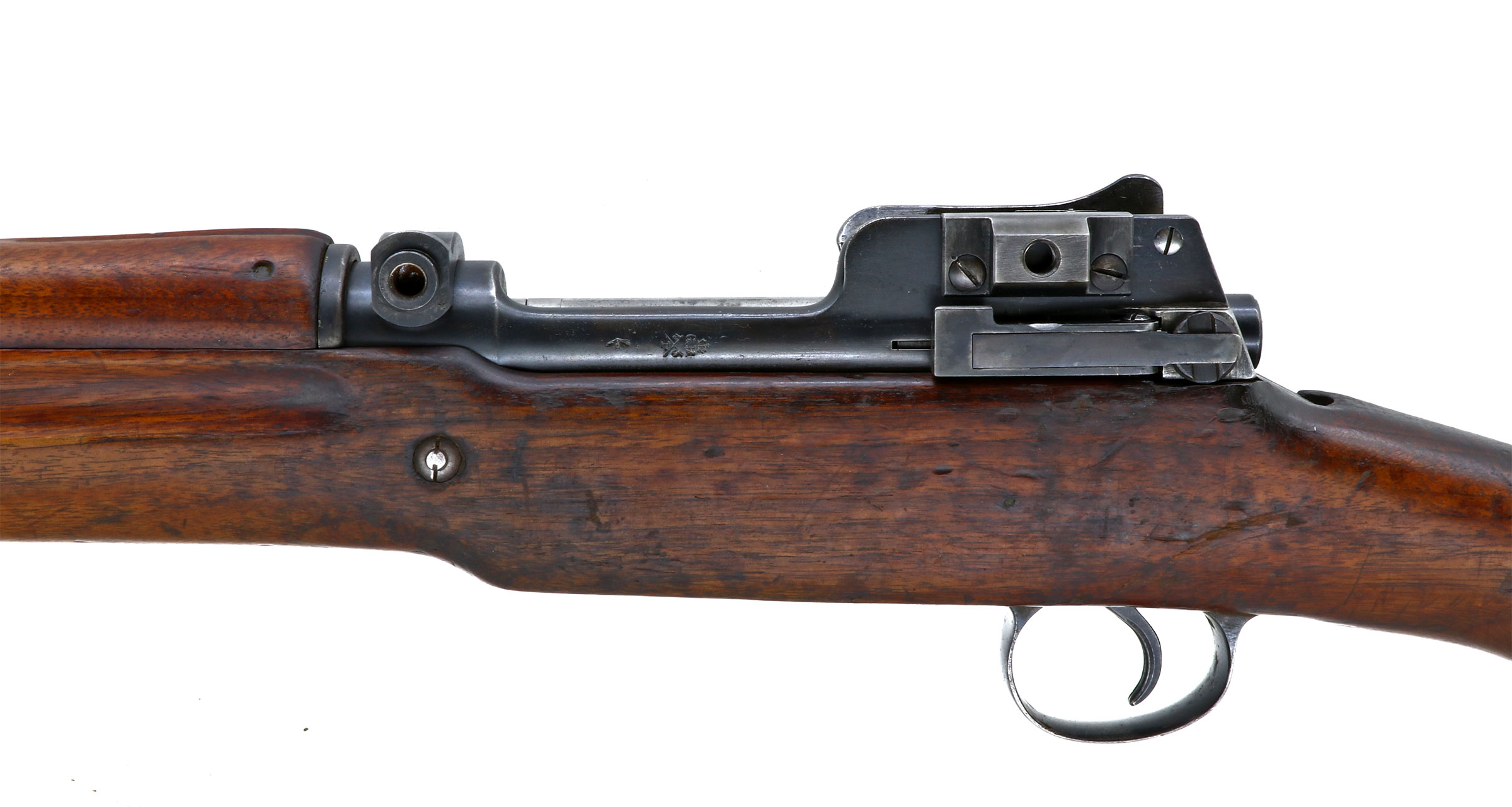

    Then everything was handed over to a friend of mine, together with the correct thread cutters and screws. He did a marvellous job in mounting it to the rifle. The only harder part was the removal of the left „ear“, to clear the scope tube. Not removing it, but also to radius it correctly to make a uniform look. Then it was inletted for the rear base in the correct position. The front base was mainly a result of the bracket, but it appears the dimensions from the drawing were very accurate. The rear sight also had to be modified in removal of the emergency sight, as shown in the drawing and also noted in the drawing for mounting it.

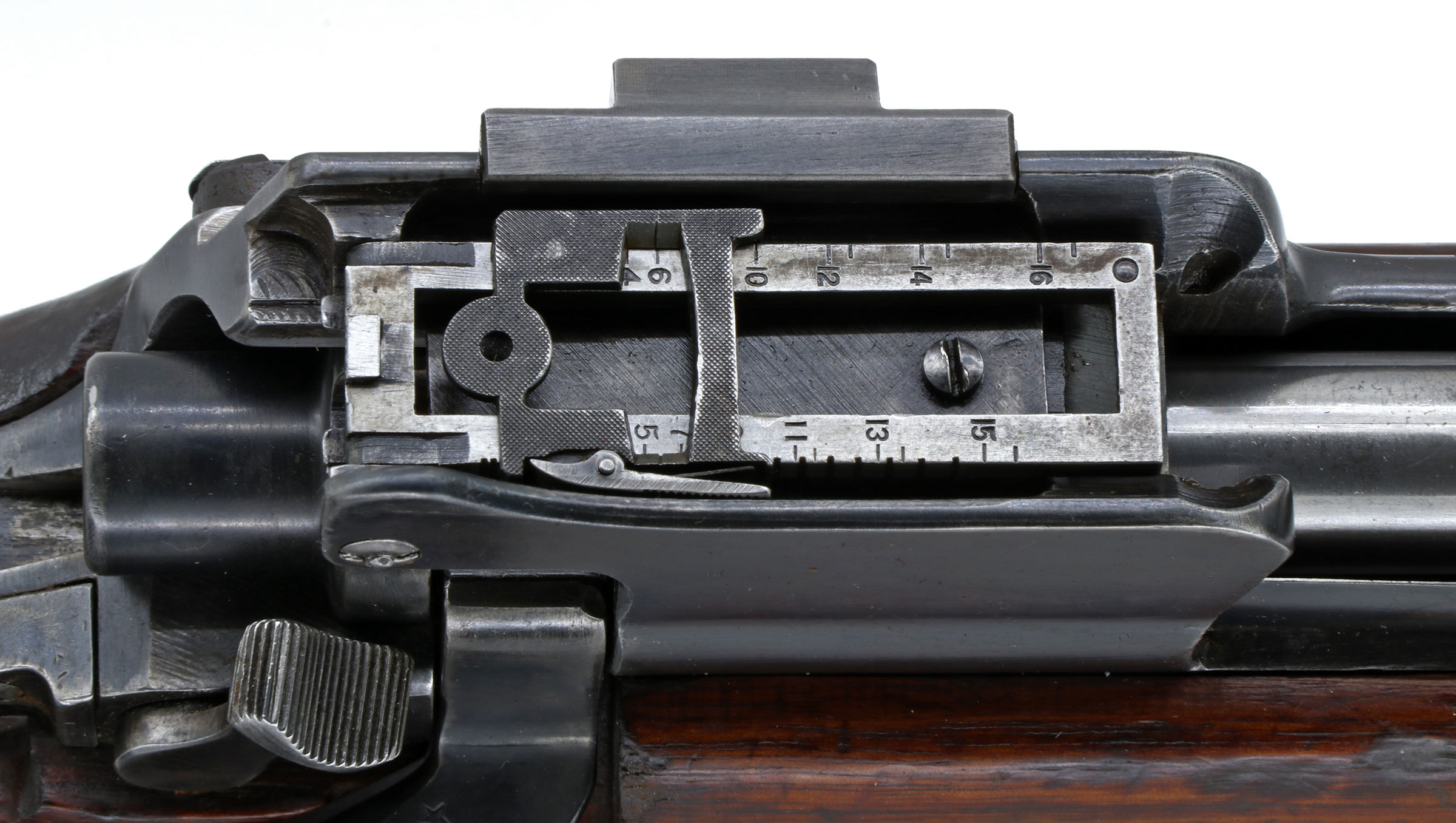

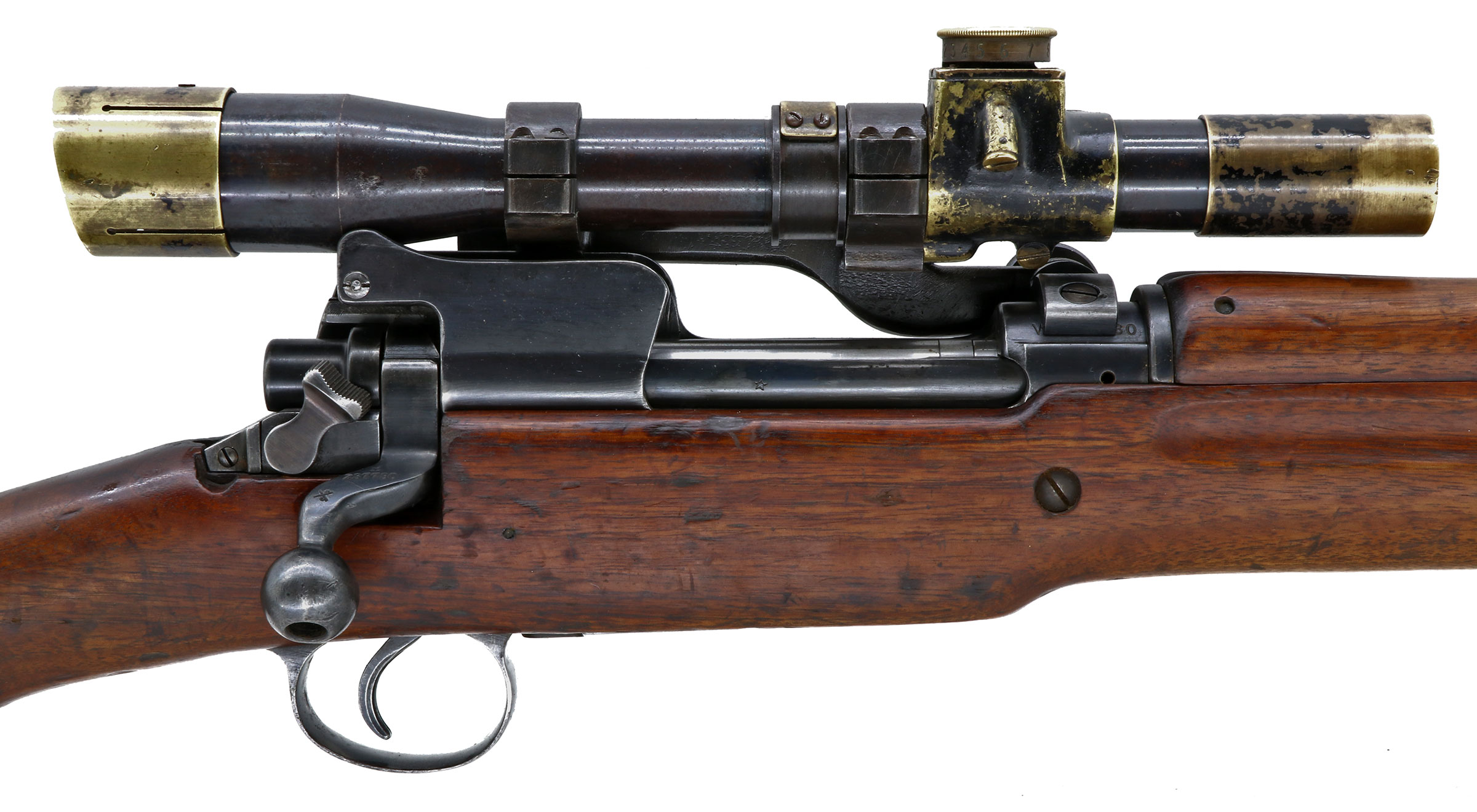

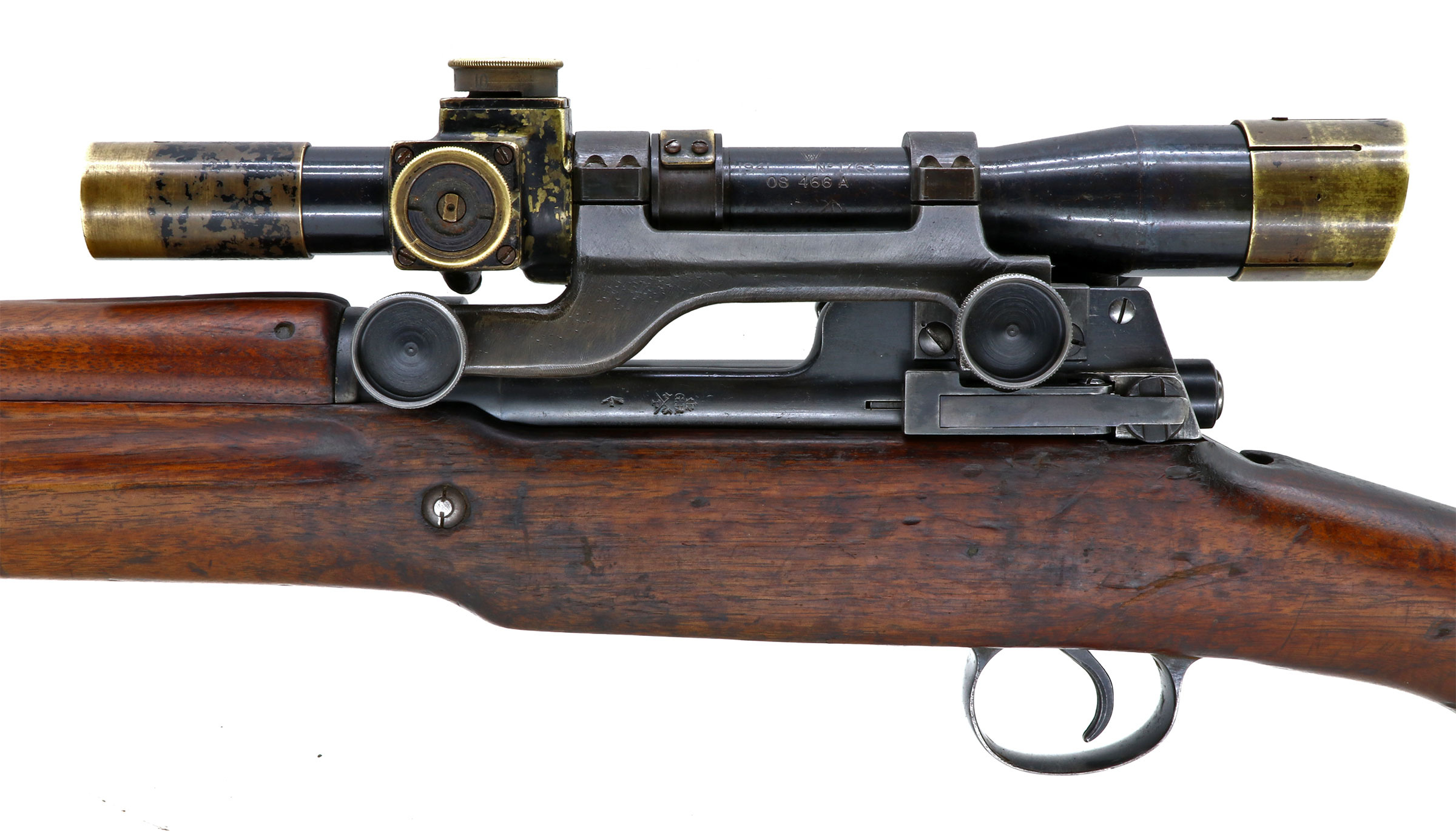

    Note that it is an extremely close fitting on the right ear, half a millimeter material had been removed on this side to clear the scope. The scope is very low mounted, a cheek pad might be helpful but it still works without it. The front sight blade is visible when looking through the scope, but it doesn‘t bother you. The rear sight was left normal and not switched to an F-Sight since it is matching numbers to the rifle. I had considered to convert it to an F-Sight, but since it had taken so much work to get to this point I might give it some more years until I would look into this again!

    Well, I‘ve now written a lot of text. If you have read through to this point, I would like to thank you for doing this! I am looking forward to any comments of this Tribute Rifle being built and hope you won‘t dislike me for making something which most possibly so far only had existed on drawings.

    Moderator edit: Member requested a cross-posting link from 1914/1917 to Lee Enfield Forums for greater exposure, as resulting links appear in both forums.
    Attached Thumbnails Click image for larger version

Name:	D0BB2378-04FD-4AE9-9588-CED28E6DA982.jpeg‎
Views:	371
Size:	401.1 KB
ID:	91837   Click image for larger version

Name:	36333C76-F536-401C-9CA4-4F25C207ACAD.jpeg‎
Views:	351
Size:	362.1 KB
ID:	91836   Click image for larger version

Name:	4677857A-2164-41E0-A8A6-EFAEAE86E6D3.jpeg‎
Views:	339
Size:	460.0 KB
ID:	91835   Click image for larger version

Name:	3219420F-2533-4CBC-A12F-2EA8CFC6FE10.jpeg‎
Views:	339
Size:	401.0 KB
ID:	91832   Click image for larger version

Name:	14391DE9-1B63-4EDA-AB59-613B83711082.jpeg‎
Views:	334
Size:	280.4 KB
ID:	91833   Click image for larger version

Name:	050597A7-D8BB-4409-ADFD-F58D04A77AE2.jpeg‎
Views:	201
Size:	284.3 KB
ID:	91834   Click image for larger version

Name:	EFFE96E5-B24D-4CEB-B640-8003A6D02B2D.jpeg‎
Views:	200
Size:	104.7 KB
ID:	91831

    Click image for larger version

Name:	5E819DAA-168E-4DC1-B1EC-548B4DBE1497.jpeg‎
Views:	198
Size:	293.5 KB
ID:	91838   Click image for larger version

Name:	5302F185-530D-4A96-9926-AAD70453B59E.jpeg‎
Views:	185
Size:	443.2 KB
ID:	91839   Click image for larger version

Name:	CA0B9EF3-E307-46AF-A219-62C41C4ED467.jpeg‎
Views:	194
Size:	454.1 KB
ID:	91840
    Last edited by Badger; 03-25-2018 at 08:00 AM.


  2. # ADS
    Friends and Sponsors
    Join Date
    October 2006
    Location
    Milsurps.Com
    Posts
    All Threads
    Banner AD Space Available - Click HERE to Inquire We specialise in military utensils and artefacts such as helmets, daggers, medals and badges, etc.  The on-line store is intended for personal browsing and searching of collecting objects. All items are provided historical value only and can be used for home collection or other purposes except of fascism, Nazism or other extremism manifestation or its propaganda. LIMITED TIME OFFER FROM THE AMERICAN GUNSMITHING INSTITUTE: Get Immediate Online Access To AGI's NEW Armorer's Course for Glock Pistols, Covering Every Generation of Glocks, Including the Latest Model 42/43 and Double Stack Pistols for ONLY $7.00! Brian Dick ... BDL Ltd. - Specializing in British and Commonwealth weapons Chuck in Denver ... Buy-Sell-Trade .. Guns, Cars Motorcycles We pride ourselves on being the new lowest price listing service, and the simplest to use. If you need to buy or sell collectible firearms or any firearm in your legal possession, then this is the place for you. If you’re a big collector clearing house, or other seller that could benefit from a Premium seller account, then we can also support you here at Gunonline.com. Your source for the finest in High Power Competition Gear. Here at T-bones Shipwrighting we specialise in vintage service rifle: re-barrelling, bedding, repairs, modifications and accurizing. We also provide importation services for firearms, parts and weapons, for both private or commercial businesses.


  3. #2
    Contributing Member Promo's Avatar
    Join Date
    Oct 2009
    Last On
    Today @ 07:38 AM
    Location
    Europe
    Posts
    1,323
    Local Date
    08-24-2019
    Local Time
    10:29 PM
    Thread Starter
    Attached the last five pictures. I had planned to also do a side-by-side picture with a No. 4 T rifle, but have not managed to do one yet.
    Attached Thumbnails Click image for larger version

Name:	7E35A41A-334E-4307-8867-82F54E09729A.jpeg‎
Views:	205
Size:	171.8 KB
ID:	91843   Click image for larger version

Name:	36666CD5-CB00-40C2-B079-353EFC69CF4D.jpeg‎
Views:	186
Size:	176.3 KB
ID:	91842   Click image for larger version

Name:	076FE4CD-2729-4E00-A3AA-3FC8C5006BD7.jpeg‎
Views:	176
Size:	389.4 KB
ID:	91841   Click image for larger version

Name:	DB369C2B-F76A-4FB1-A7F8-FC99EA3806C5.jpeg‎
Views:	179
Size:	191.1 KB
ID:	91844   Click image for larger version

Name:	CC351751-80B6-46CD-922B-2619CF3E88AA.jpeg‎
Views:	180
Size:	329.4 KB
ID:	91845

  4. The Following 14 Members Say Thank You to Promo For This Useful Post:


  5. Avoid Ads - Become a Contributing Member - Click HERE
  6. #3
    Really Senior Member henry r's Avatar
    Join Date
    May 2015
    Last On
    Yesterday @ 08:22 AM
    Location
    northern tablelands nsw Australia
    Posts
    631
    Local Date
    08-25-2019
    Local Time
    07:29 AM
    Real Name
    henry.
    I'm genuinely lost for words to describe how awesome that is.

  7. #4
    Really Senior Member rgg_7's Avatar
    Join Date
    May 2007
    Last On
    Today @ 09:12 AM
    Posts
    435
    Local Date
    08-24-2019
    Local Time
    04:29 PM
    Very impressive work. Was the original a prototype? Did any of these make it into service? Ron (Canadaicon)
    Last edited by rgg_7; 03-25-2018 at 09:23 AM.

  8. #5
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Today @ 03:01 PM
    Location
    Victoria BC
    Posts
    22,054
    Local Date
    08-24-2019
    Local Time
    01:29 PM
    Nice looking rig, I'd like to try one out sometime...I'd need a cheek piece though.
    Regards, Jim

  9. #6
    Really Senior Member GeeRam's Avatar
    Join Date
    Apr 2017
    Last On
    08-14-2019 @ 02:36 PM
    Location
    London, UK
    Posts
    225
    Local Date
    08-24-2019
    Local Time
    09:29 PM
    Wow.......

    Fabulous

  10. #7
    Contributing Member Promo's Avatar
    Join Date
    Oct 2009
    Last On
    Today @ 07:38 AM
    Location
    Europe
    Posts
    1,323
    Local Date
    08-24-2019
    Local Time
    10:29 PM
    Thread Starter
    Quote Originally Posted by rgg_7 View Post
    Very impressive work. Was the original a prototype? Did any of these make it into service? Ron (Canadaicon)
    The original drawing is dated "25-5-40", so 25th May 1940. Around the time the very first No. 4 T rifles were set up. So in my opinion they might had not decided yet which rifle to use as basis for the official WWII sniper rifle, but dropped the P.14 with No. 32 scope later in favor of the No. 4 T (whatever the reason might had been).

    Jim, the cheekpad might be helpful, but it isn't that uncomfortable without it. In fact I believe the optical axis is even lower than on the No. 3 T with the PPCo scope.

  11. The Following 2 Members Say Thank You to Promo For This Useful Post:


  12. #8
    Contributing Member mrclark303's Avatar
    Join Date
    Jul 2012
    Last On
    Today @ 02:03 PM
    Location
    The wild west of England
    Posts
    2,353
    Local Date
    08-24-2019
    Local Time
    09:29 PM
    Real Name
    Mr Clark
    Hugely impressive and historically important build, really well done...
    .303, helping Englishmen express their feelings since 1889

  13. #9
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Today @ 03:01 PM
    Location
    Victoria BC
    Posts
    22,054
    Local Date
    08-24-2019
    Local Time
    01:29 PM
    Quote Originally Posted by Promo View Post
    the cheekpad might be helpful, but it isn't that uncomfortable without it.
    I would LOVE to have a look...even a go for a few rounds to see...
    Regards, Jim

  14. #10
    Really Senior Member harry mac's Avatar
    Join Date
    Mar 2009
    Last On
    08-17-2019 @ 11:36 AM
    Location
    Norfolk, UK
    Posts
    426
    Local Date
    08-24-2019
    Local Time
    09:29 PM
    Much as I hate to use an Americanism; Awesome!
    You've done a great job there.
