    rust and most of the pitting gone. All that's left are some deep nicks. There was only one little spot around the dent, no bigger than 1/8" across, that indicated where the dent was. I'll swage one more time after polishing the bore this week with a flex-hone, and triple checking the final size.

  2. # ADS
    Friends and Sponsors
    Join Date
    October 2006
    Location
    Milsurps.Com
    Posts
    All Threads
    A Collector's View - The SMLE Short Magazine Lee Enfield 1903-1989. It is 300 8.5x11 inch pages with 1,000+ photo’s, most in color, and each book is serial-numbered.  Covering the SMLE from 1903 to the end of production in India in 1989 it looks at how each model differs and manufacturer differences from a collecting point of view along with the major accessories that could be attached to the rifle. For the record this is not a moneymaker, I hope just to break even, eventually, at $80/book plus shipping.  In the USA shipping is $5.00 for media mail.  I will accept PayPal, Zelle, MO and good old checks (and cash if you want to stop by for a tour!).  CLICK BANNER to send me a PM for International pricing and shipping. Manufacturer of various vintage rifle scopes for the 1903 such as our M73G4 (reproduction of the Weaver 330C) and Malcolm 8X Gen II (Unertl reproduction). Several of our scopes are used in the CMP Vintage Sniper competition on top of 1903 rifles. Brian Dick ... BDL Ltd. - Specializing in British and Commonwealth weapons Chuck in Denver ... Buy-Sell-Trade .. Guns, Cars Motorcycles Your source for the finest in High Power Competition Gear. Here at T-bones Shipwrighting we specialise in vintage service rifle: re-barrelling, bedding, repairs, modifications and accurizing. We also provide importation services for firearms, parts and weapons, for both private or commercial businesses.


  3. #32
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Today @ 02:42 AM
    Location
    Victoria BC
    Posts
    27,926
    Real Name
    Jim
    Local Date
    12-07-2022
    Local Time
    01:02 AM
    Quote Originally Posted by ssgross View Post
    I think he clamped it too tight in a metal barrel vise, busted the extension (which had the correct serial on it) and bent the barrel getting it on or off
    Sounds like maybe...
    Regards, Jim

  4. Avoid Ads - Become a Contributing Member - Click HERE
  5. #33
    Contributing Member ssgross's Avatar
    Join Date
    Jan 2020
    Last On
    12-05-2022 @ 09:16 PM
    Location
    Virginia Swamp
    Posts
    1,250
    Real Name
    Sam
    Local Date
    12-07-2022
    Local Time
    04:02 AM
    Thread Starter
    next bit todo is to fit this new receiver extension to the barrel. The magazine opening stops hand tight at 10 o'clock. at 32 threads per inch, that means we have off ~0.018 to go into the shoulder magazine opening at 5 o'clock before torquing down to 6 o'clock. The old broken extension still screws on, hand tight at 5 o'clock, and the receiver locked up tight on it with a few notches of the sleeve to go. So I put it on and did some measuring from the shoulder where the adjustment sleeve sits inside the extension to the chamber face. It's 0.823. With the new extension hand tight, it's 0.625 or so. So I should carefully hand fit with files, removing material from the front of the extension.

    This wasn't too hard, but time consuming. I then tightened down the extension, put an adjustment sleeve, and whata-ya-know...a perfect tight fit right! Dummy round chambers and ejects just fine! Just when I'm about to pat myself on the back for my beautiful hand fitting metal-to-metal file work, there is daylight between the receiver and the extension, and a bit more than a sliver. I have 3 other adjustment sleeves to try to close it up. If that don't work, then I'm out a few cases of beers worth for the ruined repr-extension, and I'll sendit off to get done.
    Last edited by ssgross; 09-05-2022 at 01:15 AM.

  6. #34
    Contributing Member ssgross's Avatar
    Join Date
    Jan 2020
    Last On
    12-05-2022 @ 09:16 PM
    Location
    Virginia Swamp
    Posts
    1,250
    Real Name
    Sam
    Local Date
    12-07-2022
    Local Time
    04:02 AM
    Thread Starter
    Happy Thanksgiving!
    I finally got some shop time on this. I used the existing front bead to align my bayonet adapter, and file in the rear most notch to lock in the alignment.
    I then marked and bought cut back the barrel...mostly square, and hand filed until it was pretty dead on.

    Now we have a problem. The bore is not concentric with the outside of the barrel. The top of the barrel has an extra whopping 18 thousandths of thickness! very noticeable with the naked eye. Is this normal for these? I'm not so sure I want to continue. The notch for the front screw is about 18 thousandths deep, and it's location is where the barrel wall is thinnest. the thickness where the last screw goes is 51 thous.
    Last edited by ssgross; 11-24-2022 at 11:10 PM.

  7. #35
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Today @ 02:42 AM
    Location
    Victoria BC
    Posts
    27,926
    Real Name
    Jim
    Local Date
    12-07-2022
    Local Time
    01:02 AM
    Quote Originally Posted by ssgross View Post
    The bore is not concentric with the outside of the barrel.
    That is absolutely normal for those guns when cut down. Lots of others too...I cut down a 700 Remington heavy barrel in .223 and it surprised the other guy present that the bore was in center... I've seen .22 rifles like that too.
    Regards, Jim

  8. #36
    Contributing Member ssgross's Avatar
    Join Date
    Jan 2020
    Last On
    12-05-2022 @ 09:16 PM
    Location
    Virginia Swamp
    Posts
    1,250
    Real Name
    Sam
    Local Date
    12-07-2022
    Local Time
    04:02 AM
    Thread Starter
    I suppose I'll continue then. My lower bound of barrel wall thickness at that front screw will be ~0.033 then. Likely a bit more. the repro bayonet adapter isn't as snug up front as it is in the rear.

  9. #37
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Today @ 02:42 AM
    Location
    Victoria BC
    Posts
    27,926
    Real Name
    Jim
    Local Date
    12-07-2022
    Local Time
    01:02 AM
    All of that sounds normal because of barrel taper and the way they formed the barrel stock. It was always a crapshoot when cutting a barrel to riot, would it be thicker on one side?
    Regards, Jim

  10. #38
    Contributing Member ssgross's Avatar
    Join Date
    Jan 2020
    Last On
    12-05-2022 @ 09:16 PM
    Location
    Virginia Swamp
    Posts
    1,250
    Real Name
    Sam
    Local Date
    12-07-2022
    Local Time
    04:02 AM
    Thread Starter

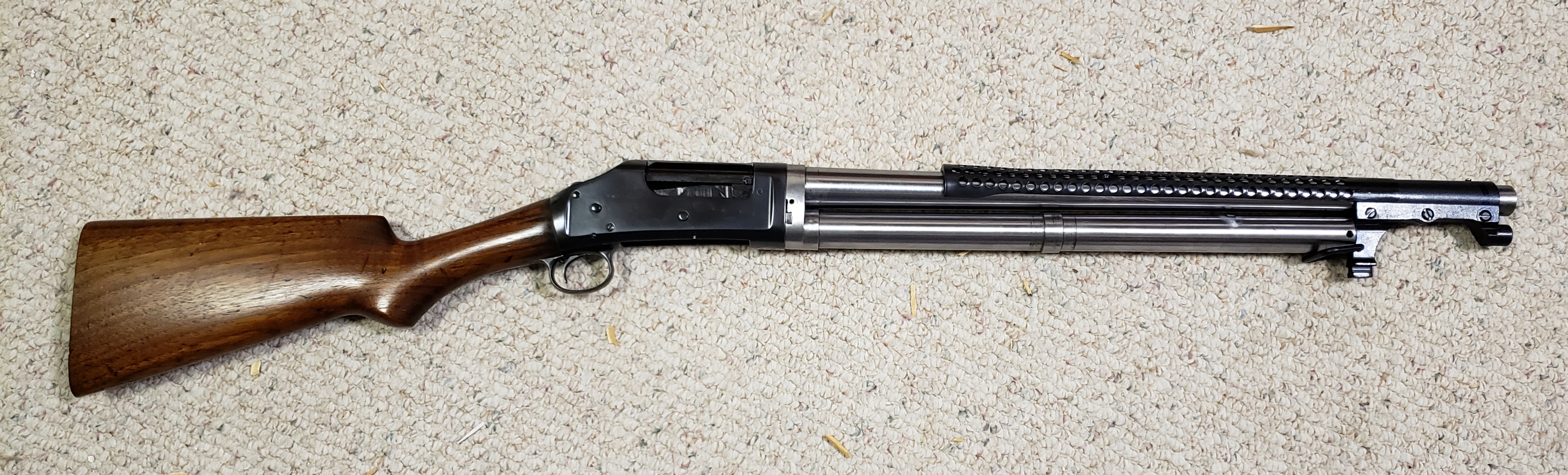

    well it's looking good. After fitting the first screw on the bayonet adapter, I realized I needed some sacrificial ones - they are #10 x32. Fitting them snug against the harder barrel steel wears the threads. If anyone reads this, get a box of stainless screws as you will get more trials out of them, and save the original screws for the final assembly.

    Time to blue everything else, and I haven't worked on any of the wood yet. Need to make a final pass at squaring the crown up too.

  11. #39
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Today @ 02:42 AM
    Location
    Victoria BC
    Posts
    27,926
    Real Name
    Jim
    Local Date
    12-07-2022
    Local Time
    01:02 AM
    I'll bet if you'd used a couple hose clamps to hog it tight and then run in taps you'd have had better result with the screws.
    Regards, Jim

  12. #40
    Contributing Member ssgross's Avatar
    Join Date
    Jan 2020
    Last On
    12-05-2022 @ 09:16 PM
    Location
    Virginia Swamp
    Posts
    1,250
    Real Name
    Sam
    Local Date
    12-07-2022
    Local Time
    04:02 AM
    Thread Starter
    Quote Originally Posted by browningautorifleicon View Post
    run in taps
    I tried that, but there are not enough complete threads before the surface of the barrel to get the tap going, and I was worried I'd screw up the thread in the softer cast metal of the bayonet adapter. So, I ended up marking the barrel with layout fluid and clamping the adapter in rubber jaws until it was tight. Before I cut it back, I aligned the adapter with the existing bead on the barrel, and scratched the center of the holes with an awl, along with a mark on the barrel just in front of the adapter to get back the alignment after I cut the barrel back. I started filing the grooves with a triangular file to get started, then opened up with rat tails. I kept testing with a punch about the size of the minor screw diameter (the back end of a numbered drill bit). Once it went through, I tried to start a tap but couldn't get it to go in straight, either side. So I kept marking the groove and running a screw in until it started to seize, filing the worn spot. This worked, but wears the screw out. I should be able to get a tap in now to clean it so the final screw's threads don't crush. I don't want to take the grooves any deeper than necessary. Using the thinnest part of the muzzle, I think my lower grove leaves at least 0.026, maybe more but no less. I hope that is enough.
