Thread: LE No5 Mk1 stock questions

Click here to increase the font size Click here to reduce the font size
  1. #1
    Contributing Member rm31859's Avatar
    Join Date
    Oct 2022
    Last On
    11-12-2022 @ 08:49 PM
    Location
    CONOVER, NC USA
    Posts
    8
    Real Name
    Robert Moore
    Local Date
    02-08-2023
    Local Time
    06:12 AM

    LE No5 Mk1 stock questions

    Hello All, I have just acquired a correct No5 Mk1 jungle carbine and I have some questions about the butt stock. The stock appears to be the correct stock with the correct contours and correct end cap with a well worn rubber pad but there is also a bottom sling attachment that appears to be factory. Has anyone encountered a No5 with a bottom sling attachment on the butt stock? Also, on the bolt handle side of the butt stock is what appears to be a flag of sorts. It is a Red, Gold and Green square. Can anyone Identify this? Thanks for any and all help.

  2. # ADS
    Friends and Sponsors
    Join Date
    October 2006
    Location
    Milsurps.Com
    Posts
    All Threads
    A Collector's View - The SMLE Short Magazine Lee Enfield 1903-1989. It is 300 8.5x11 inch pages with 1,000+ photo’s, most in color, and each book is serial-numbered.  Covering the SMLE from 1903 to the end of production in India in 1989 it looks at how each model differs and manufacturer differences from a collecting point of view along with the major accessories that could be attached to the rifle. For the record this is not a moneymaker, I hope just to break even, eventually, at $80/book plus shipping.  In the USA shipping is $5.00 for media mail.  I will accept PayPal, Zelle, MO and good old checks (and cash if you want to stop by for a tour!).  CLICK BANNER to send me a PM for International pricing and shipping. Manufacturer of various vintage rifle scopes for the 1903 such as our M73G4 (reproduction of the Weaver 330C) and Malcolm 8X Gen II (Unertl reproduction). Several of our scopes are used in the CMP Vintage Sniper competition on top of 1903 rifles. Brian Dick ... BDL Ltd. - Specializing in British and Commonwealth weapons Chuck in Denver ... Buy-Sell-Trade .. Guns, Cars Motorcycles Your source for the finest in High Power Competition Gear. Here at T-bones Shipwrighting we specialise in vintage service rifle: re-barrelling, bedding, repairs, modifications and accurizing. We also provide importation services for firearms, parts and weapons, for both private or commercial businesses.


  3. #2
    Legacy Member Alan de Enfield's Avatar
    Join Date
    Nov 2007
    Last On
    Today @ 04:51 AM
    Location
    Y Felinheli, Gogledd Cymru
    Posts
    2,371
    Real Name
    Alan De Enfield
    Local Date
    02-08-2023
    Local Time
    11:12 AM
    Quote Originally Posted by rm31859 View Post
    Hello All, I have just acquired a correct No5 Mk1 jungle carbine and I have some questions about the butt stock. The stock appears to be the correct stock with the correct contours and correct end cap with a well worn rubber pad but there is also a bottom sling attachment that appears to be factory. Has anyone encountered a No5 with a bottom sling attachment on the butt stock? Also, on the bolt handle side of the butt stock is what appears to be a flag of sorts. It is a Red, Gold and Green square. Can anyone Identify this? Thanks for any and all help.

    Pictures would assist in diagnosis.

    Many of the African countries use a combination of those colours in different order and orientation.

    You will note that Ethiopia has these colours - did it come from the RTI 'Goat-Turd' cache by any chance ?

    A few examples :
    Attached Thumbnails Click image for larger version

Name:	R.jpg‎
Views:	146
Size:	68.9 KB
ID:	128711
    Last edited by Alan de Enfield; 11-01-2022 at 11:35 AM.
    Mine are not the best, but they are not too bad. I can think of lots of Enfields I'd rather have but instead of constantly striving for more, sometimes it's good to be satisfied with what one has...

  4. Avoid Ads - Become a Contributing Member - Click HERE
  5. #3
    Contributing Member rm31859's Avatar
    Join Date
    Oct 2022
    Last On
    11-12-2022 @ 08:49 PM
    Location
    CONOVER, NC USA
    Posts
    8
    Real Name
    Robert Moore
    Local Date
    02-08-2023
    Local Time
    06:12 AM
    Thread Starter
    The barrel is marked I.O. Inc, Melbourne Fl. When I went to their website, it referred me to RTI for sales so it may very well be part of that but I'm not sure. My rifle came from Classic Firearms in Monroe NC.

  6. #4
    Contributing Member rm31859's Avatar
    Join Date
    Oct 2022
    Last On
    11-12-2022 @ 08:49 PM
    Location
    CONOVER, NC USA
    Posts
    8
    Real Name
    Robert Moore
    Local Date
    02-08-2023
    Local Time
    06:12 AM
    Thread Starter
    I have added a photo to my photo gallery but I don't know how to attach it to this thread.

  7. #5
    Legacy Member Alan de Enfield's Avatar
    Join Date
    Nov 2007
    Last On
    Today @ 04:51 AM
    Location
    Y Felinheli, Gogledd Cymru
    Posts
    2,371
    Real Name
    Alan De Enfield
    Local Date
    02-08-2023
    Local Time
    11:12 AM
    Quote Originally Posted by rm31859 View Post
    The barrel is marked I.O. Inc, Melbourne Fl. When I went to their website, it referred me to RTI for sales so it may very well be part of that but I'm not sure. My rifle came from Classic Firearms in Monroe NC.

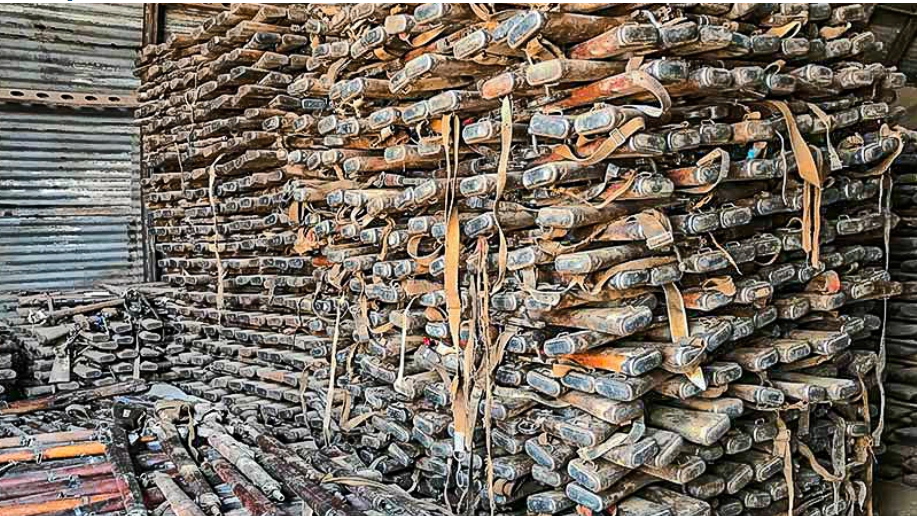

    Yup - its one of these well cared for No5s (does the bolt number match the action ?)
    Attached Thumbnails Click image for larger version

Name:	Screenshot (30).png‎
Views:	138
Size:	1.12 MB
ID:	128724
    Mine are not the best, but they are not too bad. I can think of lots of Enfields I'd rather have but instead of constantly striving for more, sometimes it's good to be satisfied with what one has...

  8. #6
    Contributing Member rm31859's Avatar
    Join Date
    Oct 2022
    Last On
    11-12-2022 @ 08:49 PM
    Location
    CONOVER, NC USA
    Posts
    8
    Real Name
    Robert Moore
    Local Date
    02-08-2023
    Local Time
    06:12 AM
    Thread Starter
    Unfortunately, the bolt is from a No4. I have been in contact with Classic about obtaining a replacement bolt. The numbers may not match but at least it would be the correct bolt.

  9. #7
    Legacy Member GeeRam's Avatar
    Join Date
    Apr 2017
    Last On
    01-13-2023 @ 10:21 AM
    Location
    Berkshire, UK
    Posts
    787
    Local Date
    02-08-2023
    Local Time
    11:12 AM
    Quote Originally Posted by rm31859 View Post
    Unfortunately, the bolt is from a No4. I have been in contact with Classic about obtaining a replacement bolt. The numbers may not match but at least it would be the correct bolt.
    It would be the correct type, but it would still need to be checked for fitment, and probably fettled to fit correctly. That's why matching numbers are so important on Enfields, the bolts are not swappable like Mausers and other types. They were individually hand fettled to bit the action.

    ---------- Post added at 07:06 PM ---------- Previous post was at 07:03 PM ----------

    Quote Originally Posted by rm31859 View Post
    Hello All, I have just acquired a correct No5 Mk1 jungle carbine and I have some questions about the butt stock. The stock appears to be the correct stock with the correct contours and correct end cap with a well worn rubber pad but there is also a bottom sling attachment that appears to be factory.
    Won't be factory, well not factory as in Fazakerley or BSA Shirley were the No.5 were originally made.

    Will be post war, post Britishicon service mod by whatever army or Police service it ended up with in the 50's or 60's.
    Just the thing for putting round holes in square heads.

  10. Thank You to GeeRam For This Useful Post:


  11. #8
    Advisory Panel
    Roger Payne's Avatar
    Join Date
    Mar 2008
    Last On
    02-05-2023 @ 05:43 AM
    Location
    Sutton Coldfield, UK.
    Posts
    3,286
    Real Name
    Roger Payne
    Local Date
    02-08-2023
    Local Time
    11:12 AM
    Concerning the butt swivel machined out recess, IIRC Peter L mentioned some time ago that some contract woodwork manufactured for foreign governments was produced by modifying existing No4 butts. The oval recess was simply filled with a wood patch. It's possible that the patch may have simply fallen out over time.

    Please beware of just shoving a replacement bolt into a LE. It may cycle but unless various parameters have been checked by someone who knows what they are doing, it hasn't been FITTED. It isn't only a question of headspace, but also of proper fit of the locking lugs in the locking lug recesses...........plus correct positioning of the front face of the cocking piece against the sear.........you get the picture. If in doubt I would get the advice of a smith.

  12. Thank You to Roger Payne For This Useful Post:


  13. #9
    Contributing Member rm31859's Avatar
    Join Date
    Oct 2022
    Last On
    11-12-2022 @ 08:49 PM
    Location
    CONOVER, NC USA
    Posts
    8
    Real Name
    Robert Moore
    Local Date
    02-08-2023
    Local Time
    06:12 AM
    Thread Starter
    I removed the bolt and the number appears to be PF 262914. I just wonder if this bolt was properly fitted when someone used it to replace the original bolt.

  14. #10
    Legacy Member Alan de Enfield's Avatar
    Join Date
    Nov 2007
    Last On
    Today @ 04:51 AM
    Location
    Y Felinheli, Gogledd Cymru
    Posts
    2,371
    Real Name
    Alan De Enfield
    Local Date
    02-08-2023
    Local Time
    11:12 AM
    Quote Originally Posted by rm31859 View Post
    I removed the bolt and the number appears to be PF 262914. I just wonder if this bolt was properly fitted when someone used it to replace the original bolt.

    If it was properly FITTED, then the numbers would have been scrubbed and the 'matching' number added to show that the bolt now 'belonged' to that body.
    Mine are not the best, but they are not too bad. I can think of lots of Enfields I'd rather have but instead of constantly striving for more, sometimes it's good to be satisfied with what one has...
