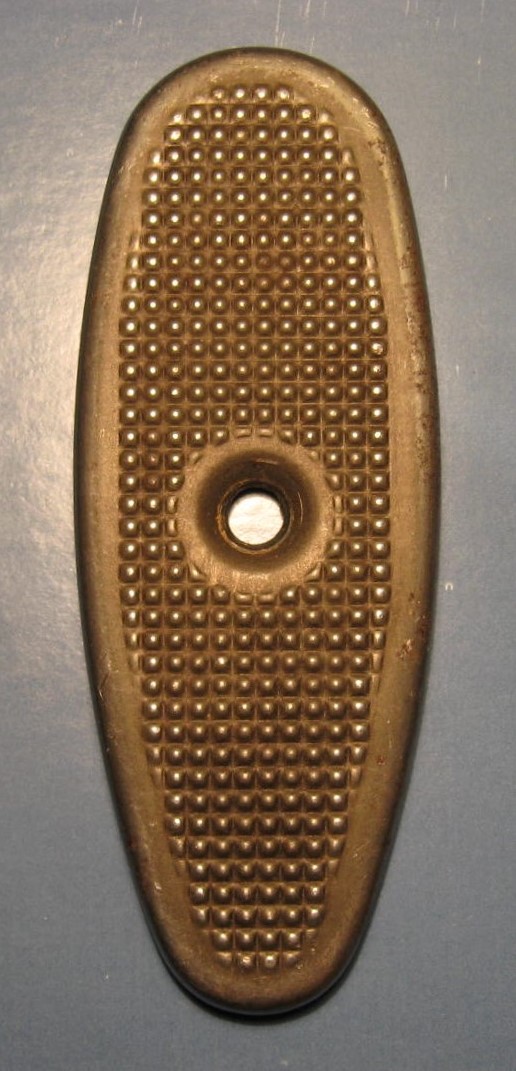

    What's the consensus on the ID of this one? - Bob


  2. # ADS
    Friends and Sponsors
    Join Date
    October 2006
    Location
    Milsurps.Com
    Age
    2010
    Posts
    All Threads
    A Collector's View - The SMLE Short Magazine Lee Enfield 1903-1989. It is 300 8.5x11 inch pages with 1,000+ photo’s, most in color, and each book is serial-numbered.  Covering the SMLE from 1903 to the end of production in India in 1989 it looks at how each model differs and manufacturer differences from a collecting point of view along with the major accessories that could be attached to the rifle. For the record this is not a moneymaker, I hope just to break even, eventually, at $80/book plus shipping.  In the USA shipping is $5.00 for media mail.  I will accept PayPal, Zelle, MO and good old checks (and cash if you want to stop by for a tour!).  CLICK BANNER to send me a PM for International pricing and shipping. Manufacturer of various vintage rifle scopes for the 1903 such as our M73G4 (reproduction of the Weaver 330C) and Malcolm 8X Gen II (Unertl reproduction). Several of our scopes are used in the CMP Vintage Sniper competition on top of 1903 rifles. Brian Dick ... BDL Ltd. - Specializing in British and Commonwealth weapons Chuck in Denver ... Buy-Sell-Trade .. Guns, Cars Motorcycles Your source for the finest in High Power Competition Gear. Here at T-bones Shipwrighting we specialise in vintage service rifle: re-barrelling, bedding, repairs, modifications and accurizing. We also provide importation services for firearms, parts and weapons, for both private or commercial businesses.


  3. #12
    Advisory Panel
    painter777's Avatar
    Join Date
    Mar 2009
    Last On
    @
    Location
    Central Michigan
    Posts
    5,232
    Local Date
    05-29-2023
    Local Time
    01:46 AM
    GI Bob,
    I'm leaning towards the WRA plate on the CCC chart, it seems to match up best row by row.
    2nd guess would be the Inland/SG plate that btw I just realized is the same picture... If you look closely at this example at a scratch or dent you'll see it on the other example.

    The U.S. Caliber .30 Carbine Buttplates

    I always like to credit Jim Mock for his work on putting all this info together.
    Charlie-Painter777

    A Country Has No Greater Responsibility Than To Care For Those Who Served...

  4. The Following 2 Members Say Thank You to painter777 For This Useful Post:


  5. Avoid Ads - Become a Contributing Member - Click HERE
  6. #13
    Advisory Panel
    USGI's Avatar
    Join Date
    Mar 2009
    Last On
    @
    Location
    Oregon, USA
    Age
    77
    Posts
    2,152
    Real Name
    Bob
    Local Date
    05-28-2023
    Local Time
    10:46 PM
    Thread Starter
    After I saw your comment, I took awhile and searched old threads for discussions on these buttplates. I've got another buttplate on a Carbine I haven't had out in awhile, so plan to get it out for a picture later today. In the meantime, I want to see if Bubba-7 or Hercules Powder may want to add a comment.

    Here's the general Google Search I just used, followed by a couple links to specific threads I found. - Bob

    https://www.google.com/search?q=Mils...t=gws-wiz#ip=1

    https://www.milsurps.com/showthread.php?t=52127&page=1

    http://www.milsurps.com/showthread.php?t=42657

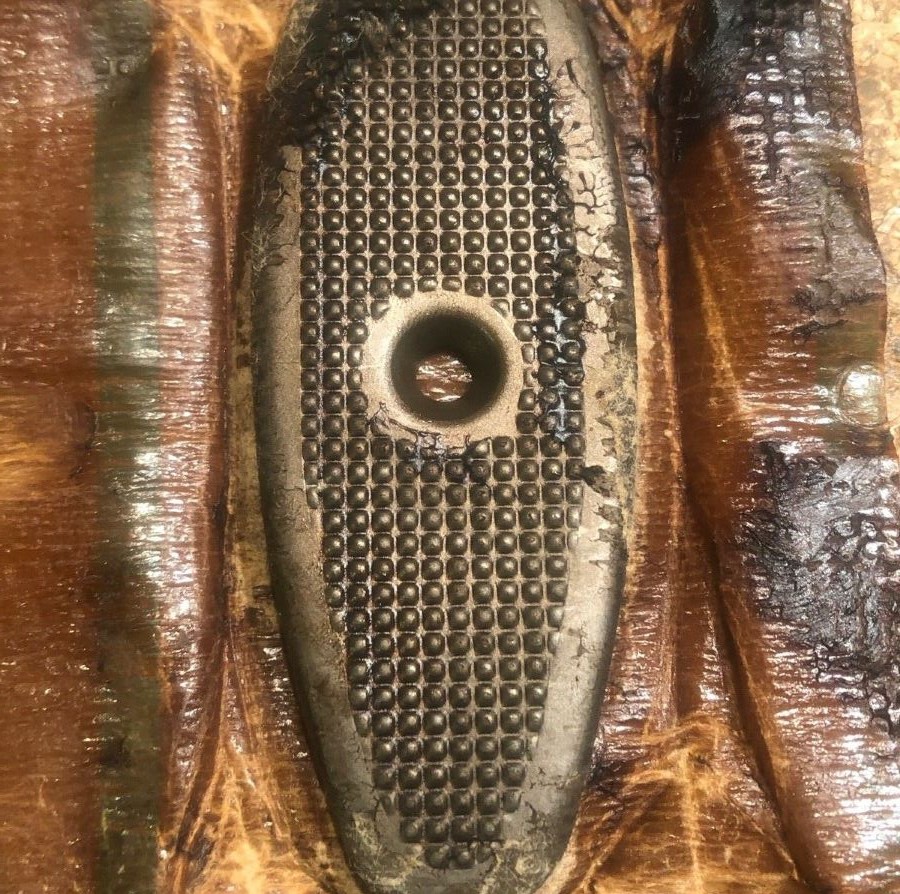

    EDIT: Here's the picture of the 2nd buttplate on the left, followed by the one from post #11 above for comparison.

    Last edited by USGI; 05-10-2023 at 09:42 PM. Reason: Add Pictures

  7. #14
    Legacy Member Bubba-7's Avatar
    Join Date
    Mar 2009
    Last On
    05-10-2023 @ 12:39 PM
    Location
    Just North of Fort Benning
    Posts
    502
    Real Name
    Roger
    Local Date
    05-29-2023
    Local Time
    01:46 AM
    The butt plate in post #11 is late Inland. You can tell by the gaps at 11 and 2 o'clock.
    Jim Mock's butt plate list is the first time I have seen the three Winchester early, mid and late butt plates shown correctly. Early, dot splatter all around screw, mid, dot splatter only on bottom, and late, no splatter and like a late Inland.
    And part of the confusion with his list of butt plates is because, it does not have the Inland early square pattern, which before everyone removed their original early square pattern butt plate from their original early Inland and replaced it with the diagonal pattern. CC NLs stated, the early Inland square pattern was more common.
    Then Riesch only listed the diagonal pattern for early Inland. So everyone gets guess what happened then. Of course, you can remove the butt plate and see the indentations in the stock wood, if early Inland square or diagonal pattern was original to the stock.
    Thirty years ago, been there, done that, myself. Newbies following Riesch have destroyed many, many original carbines.

  8. The Following 2 Members Say Thank You to Bubba-7 For This Useful Post:


  9. #15
    Advisory Panel
    painter777's Avatar
    Join Date
    Mar 2009
    Last On
    @
    Location
    Central Michigan
    Posts
    5,232
    Local Date
    05-29-2023
    Local Time
    01:46 AM
    So GI Bob,
    Just what are you up to?
    Charlie-Painter777

    A Country Has No Greater Responsibility Than To Care For Those Who Served...

  10. #16
    Advisory Panel
    USGI's Avatar
    Join Date
    Mar 2009
    Last On
    @
    Location
    Oregon, USA
    Age
    77
    Posts
    2,152
    Real Name
    Bob
    Local Date
    05-28-2023
    Local Time
    10:46 PM
    Thread Starter
    Busy looking at dots on buttplates right now. - Bob

  11. #17
    Legacy Member deldriver's Avatar
    Join Date
    Dec 2010
    Last On
    05-12-2023 @ 01:27 PM
    Location
    Tennessee
    Posts
    444
    Real Name
    John
    Local Date
    05-29-2023
    Local Time

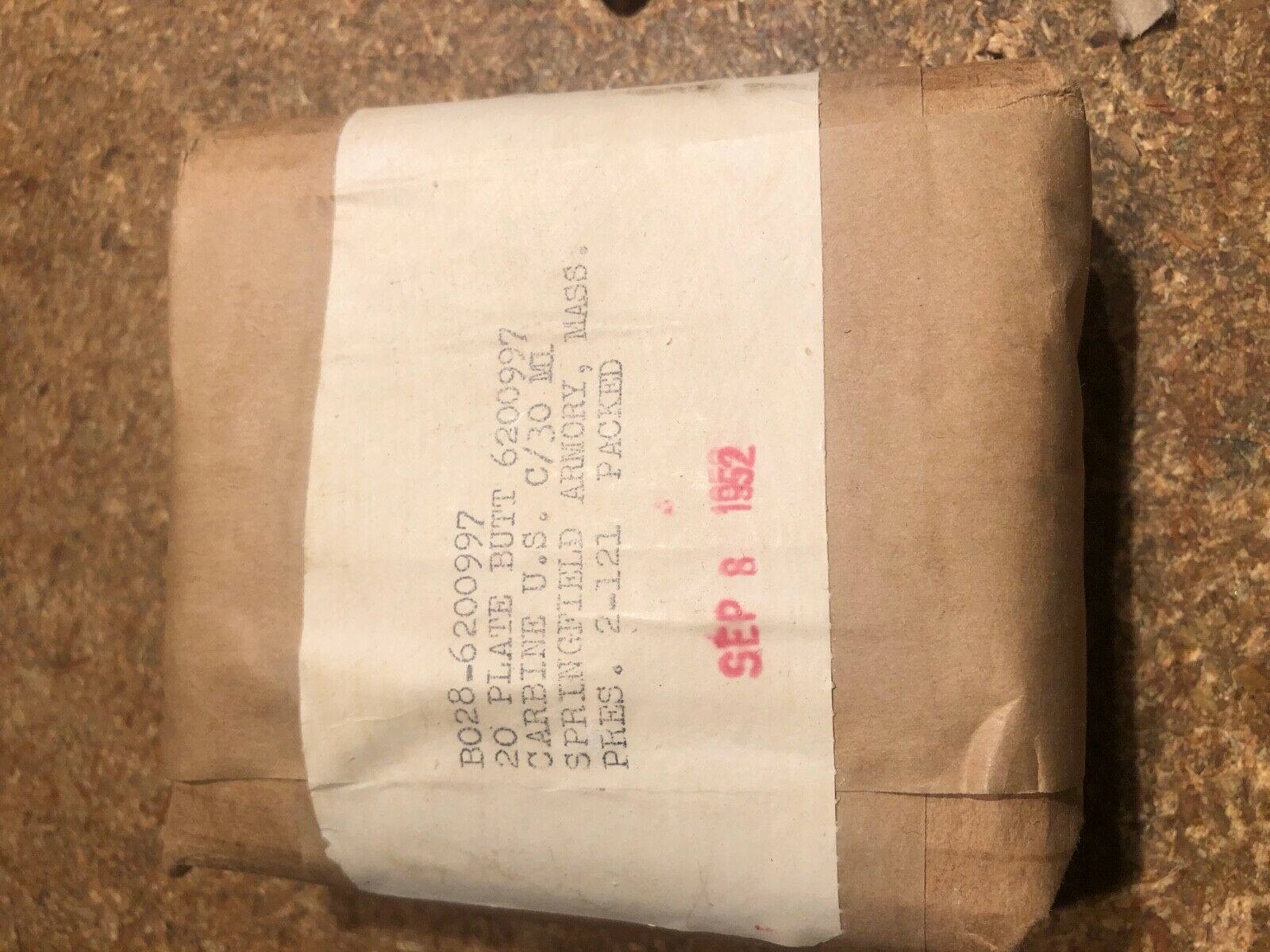

    01:46 AM

  12. Thank You to deldriver For This Useful Post:


  13. #18
    Advisory Panel
    USGI's Avatar
    Join Date
    Mar 2009
    Last On
    @
    Location
    Oregon, USA
    Age
    77
    Posts
    2,152
    Real Name
    Bob
    Local Date
    05-28-2023
    Local Time
    10:46 PM
    Thread Starter
    Quote Originally Posted by painter777 View Post
    So GI Bob,
    Just what are you up to?

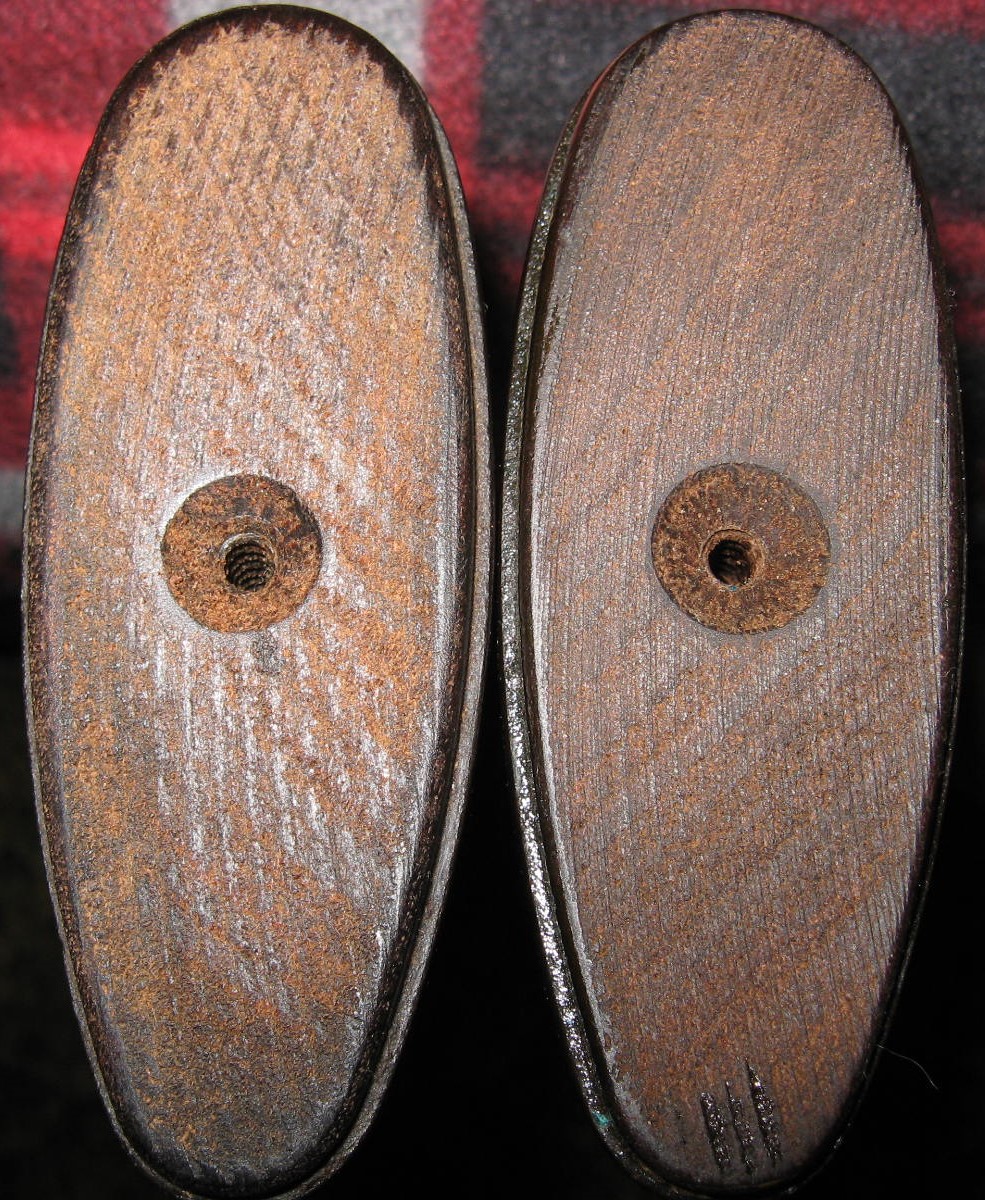

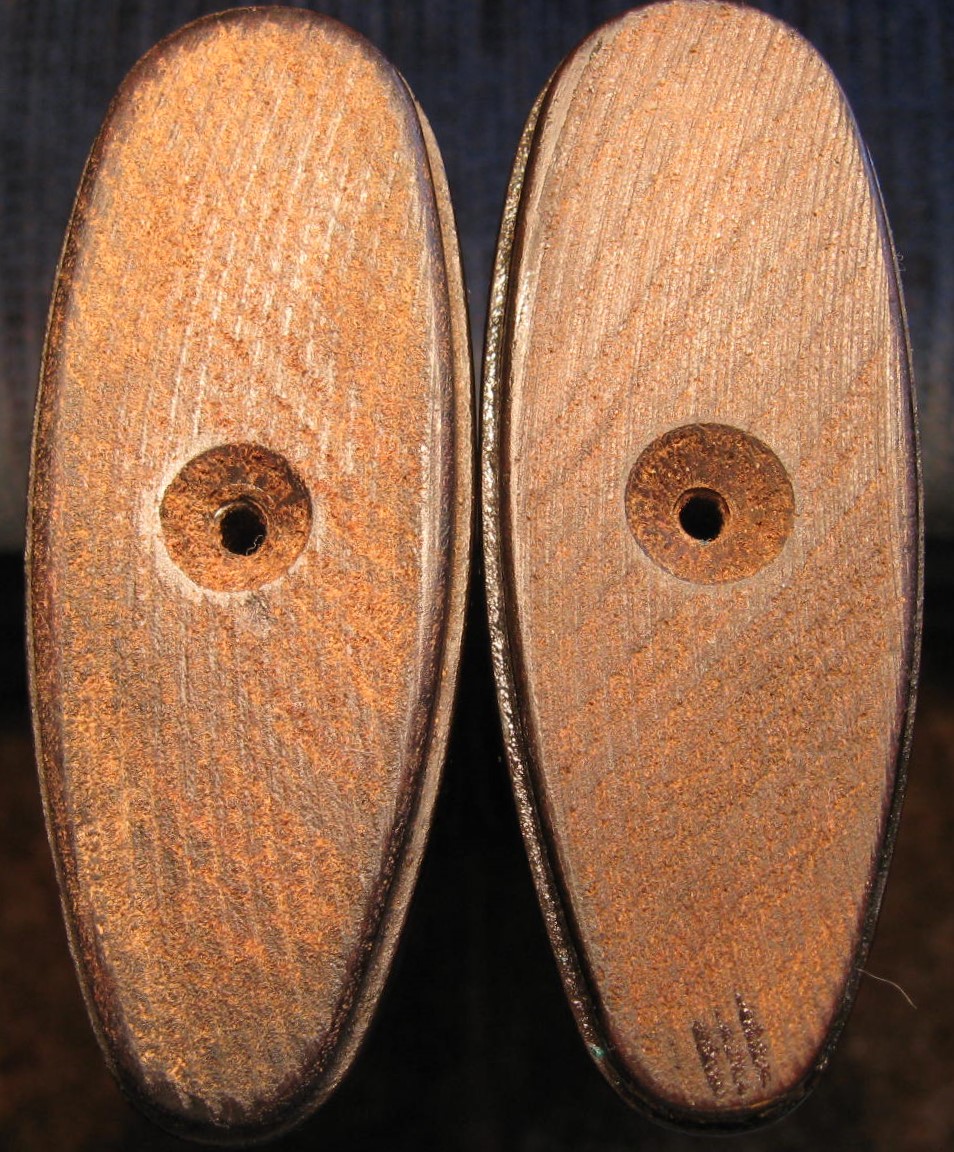

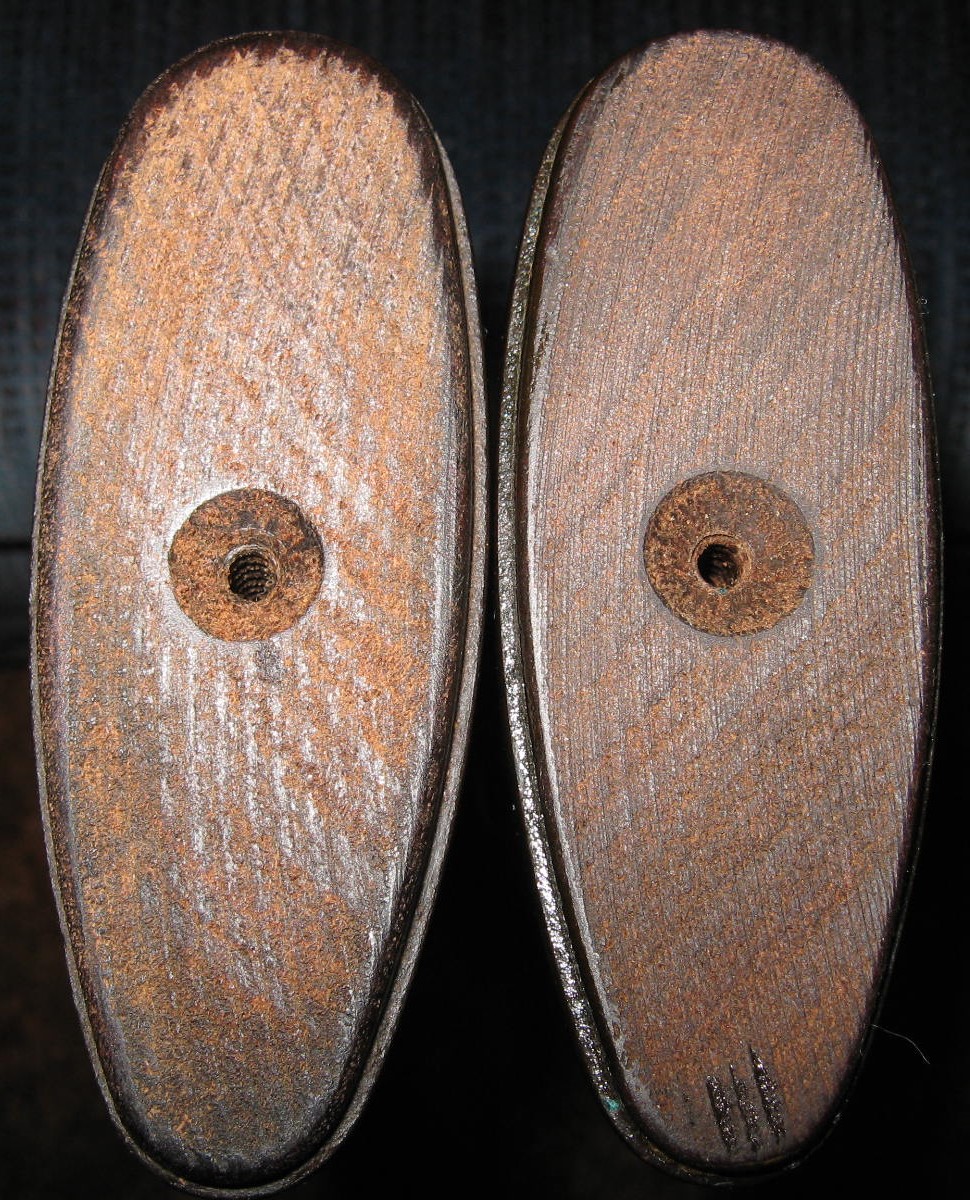

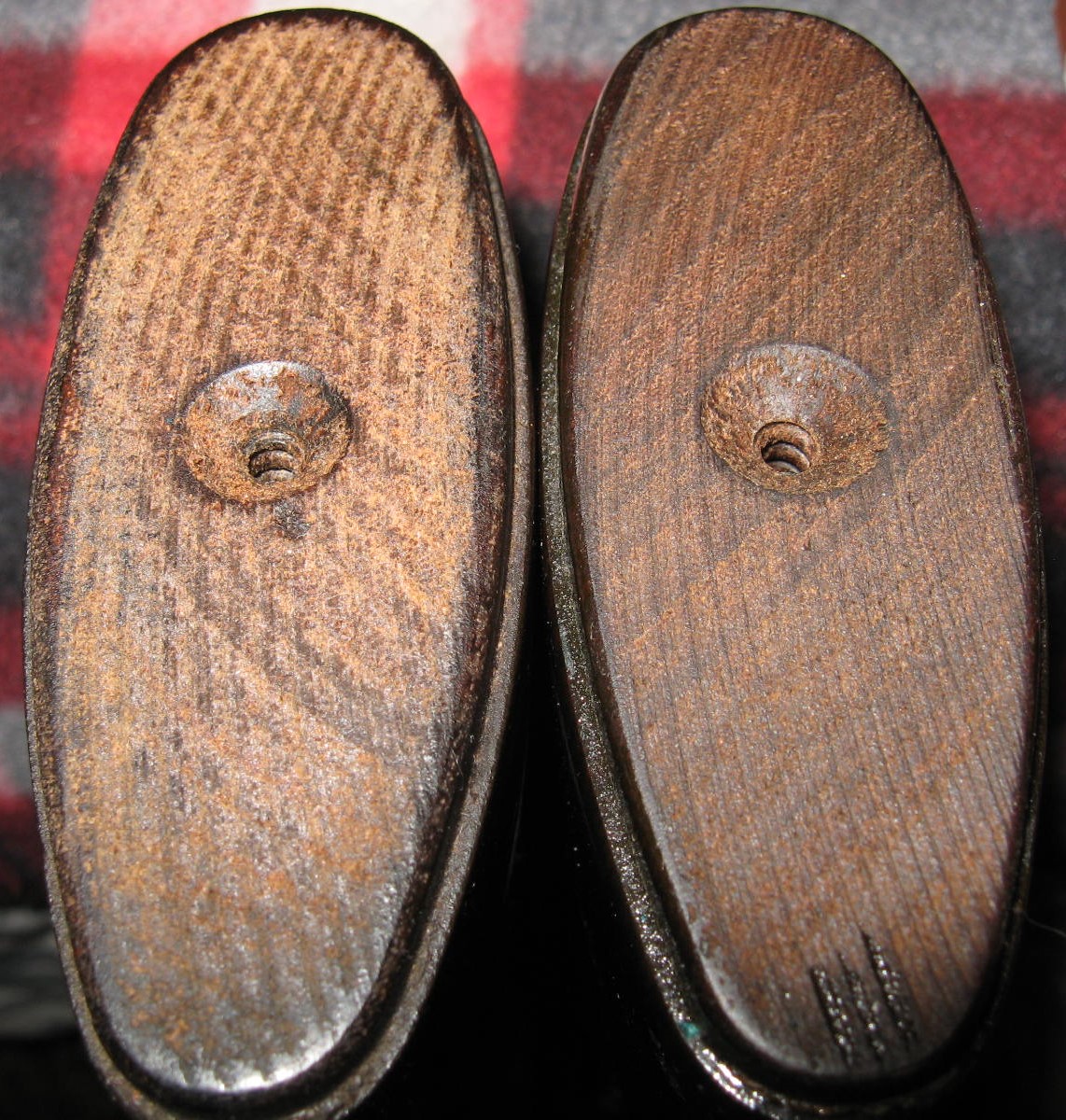

    The real answer, and I'm not getting much accomplished on it right now, is to determine if the buttplates on my 476K and 408K Inlands are original "square pattern" Inland plates or Winchester. Either I don't understand the CCC site's explanation, or will need to explain to a future owner why they aren't original. I took some pictures today of the stocks they belong to, but can't see meaningful imprints on either one of them. The 476K stock is on the left and the 408K is on the right in all (4) pictures. Only thing I can see for sure is the wood grain and milling marks. I can take higher resolution pictures if you think that would help any, but don't believe there's really anything there to see. - Bob
