    Kynoch .318 Westley Richards

    My .318 Kynoch nitro express for the .318 Westley Richards.

    Westley Richards introduced the .318, primarily for use in their M98 Mauser and later their P14 Enfield based bolt action sporting rifles.

    The .318 Westley Richards is a rimless bottlenecked cartridge primarily intended for use in Africa. The bullet diameter is actually .330", the naming is due to Britishicon nomenclature which sometimes names cartridges by their land diameter rather than the more commonly applied groove diameter.

    Westley Richards offered solid, soft-point or the revolutionary LT-capped[note 1] bullets in two loadings, the more common being a 250 gr bullet with a listed speed of 2,400 ft/s, whilst a lighter loading firing a 180 gr bullet at 2,700 ft/s was also offered for lighter game. The 250gr bullet possessed high sectional density and thus excellent penetration.

    In my book I have on "African Rifles and Cartridges", by John "Pondoro" Taylor wrote that the 250gr .318 Westley Richards is "fully capable of driving its bullet the full length of a big elephant's body.

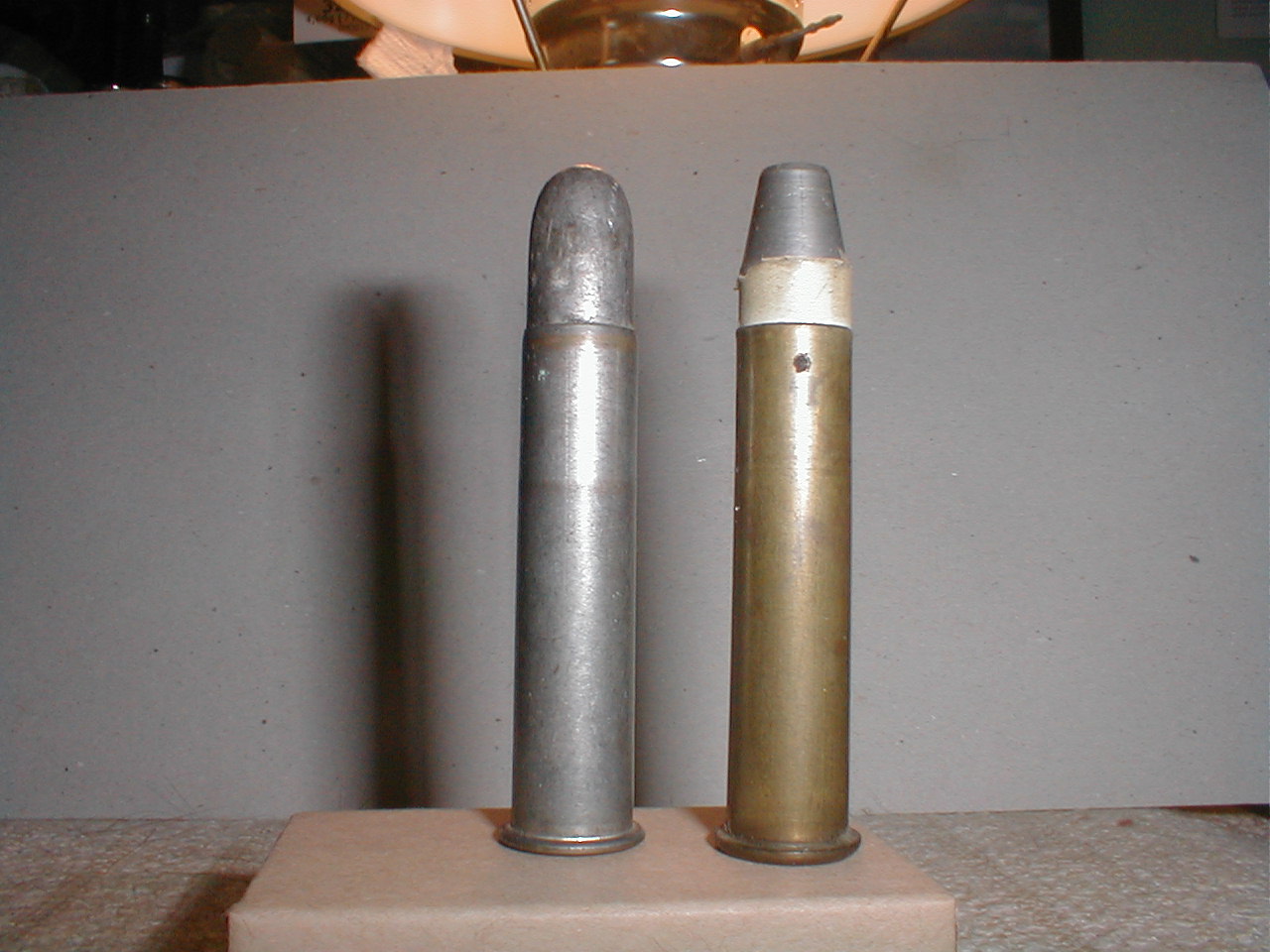

    MkVII 303 for scale.
    Information
    Warning: This is a relatively older thread
    This discussion is older than 360 days. Some information contained in it may no longer be current.
    Attached Thumbnails Click image for larger version

Name:	Kynoch .318 Westley Richards.jpg‎
Views:	117
Size:	946.6 KB
ID:	127739

  2. #2
    Legacy Member RCS's Avatar
    Join Date
    Mar 2009
    Last On
    Yesterday @ 10:15 PM
    Location
    USA
    Posts
    4,472
    Real Name
    Robert Seccombe
    Local Date
    07-04-2025
    Local Time
    05:11 AM

    A few Sharps cartridges

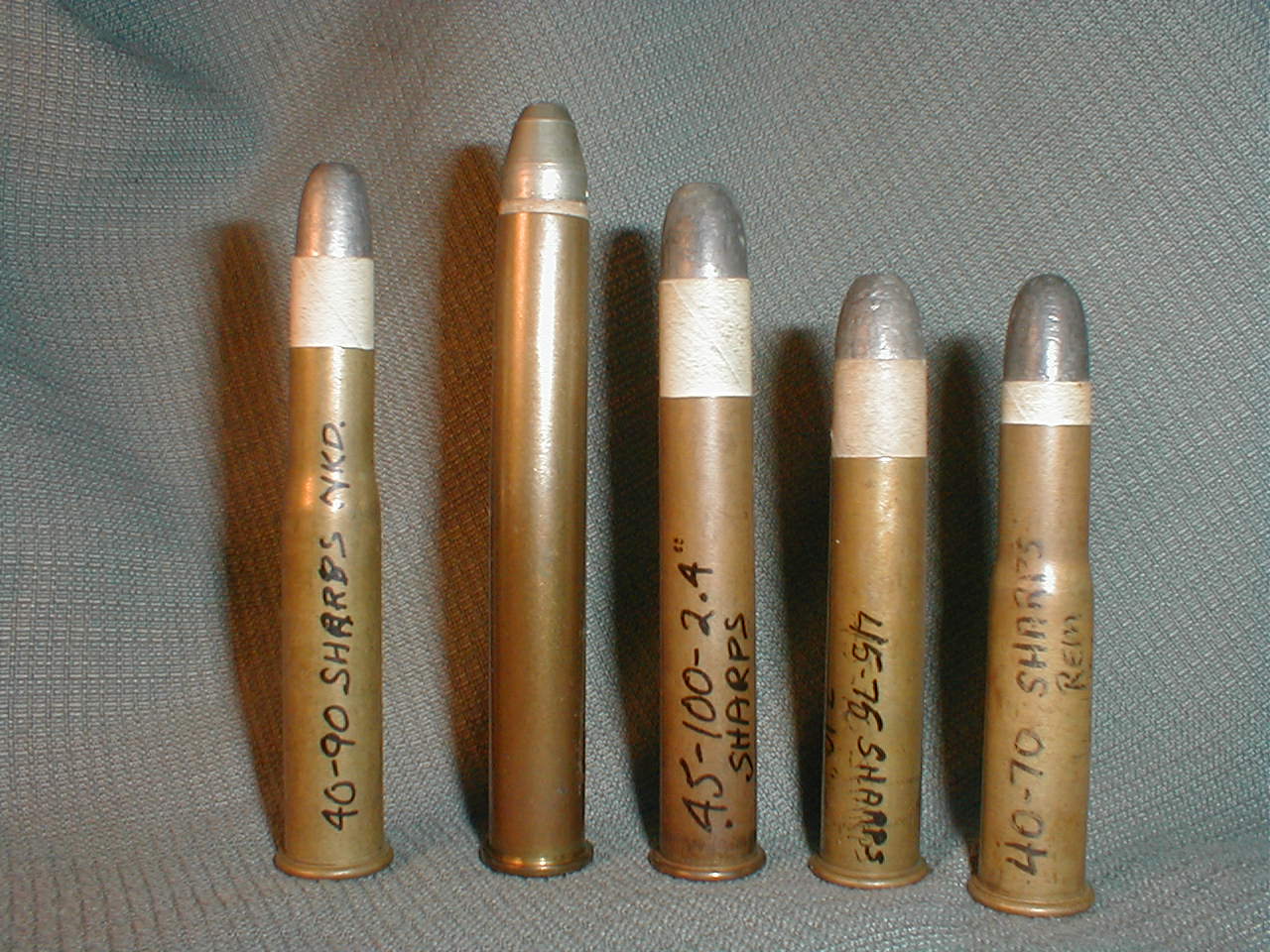

    My photos show a few of the smaller caliber Sharps cartridges which were also very popular for match shooting. I have read that Sharps used a very high quality paper equal to banknote paper for patching their factory bullets.

    Left to right the 40-90 Sharps necked (also a 40 straight too) from around 1876, The only modern case is the RCBS 45 Basic case used to make the 45-120 or 45-140, 45-100 Sharps also from around 1876, used different bullet weight and powder charges. The 45-75 Sharps is a copy of the 45-70 Govt. last is the 40-70 Sharps that was and still is a popular match cartridge.

    There wasn't any purpose to showing the headstamps as all the Sharps cartridges are without headstamps, only the RCBS 45 Basic is headstamped.

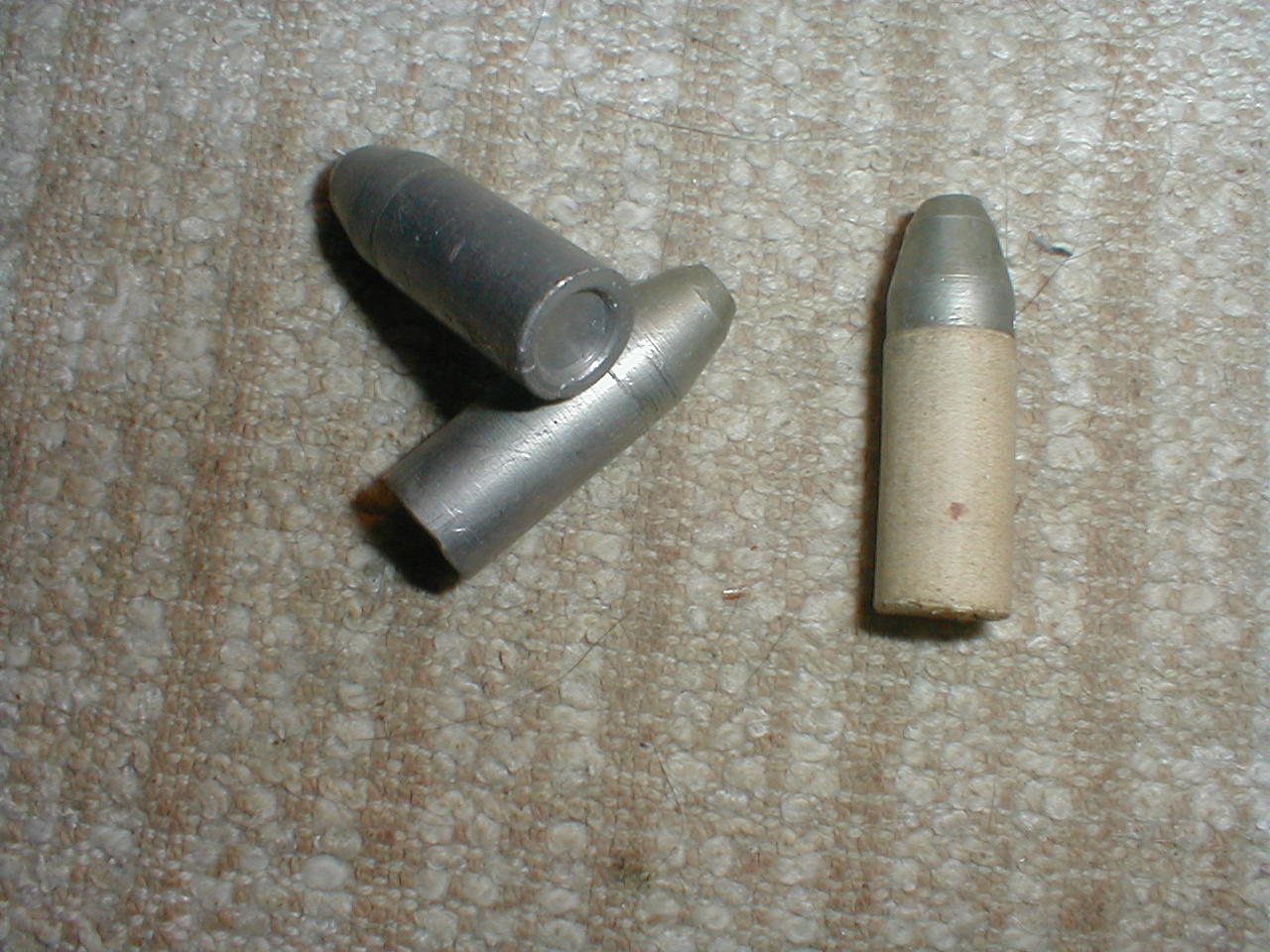

    Years ago I made a nose pour .451 cal paper patch mould that was adjustable for bullet length. At the ranges that I fired on, there wasn't much difference between paper patc and plain lead bullets (all were black powder loads)
