    Is this a Ross barrel?

    I bought this barrel at auction years ago, and it was listed as a 1905 Ross barrel. Now that I come to use it I notice that it doesn't match any of the ones I have or that I can find online. What is it? Is it a commercial Ross barrel perhaps?
    Attached Thumbnails Click image for larger version

Name:	Ross barrel.jpg‎
Views:	74
Size:	46.6 KB
ID:	138889

  2. # ADS
    Friends and Sponsors
    Join Date
    October 2006
    Location
    Milsurps.Com
    Posts
    All Threads
    A Collector's View - The SMLE Short Magazine Lee Enfield 1903-1989. It is 300 8.5x11 inch pages with 1,000+ photo’s, most in color, and each book is serial-numbered.  Covering the SMLE from 1903 to the end of production in India in 1989 it looks at how each model differs and manufacturer differences from a collecting point of view along with the major accessories that could be attached to the rifle. For the record this is not a moneymaker, I hope just to break even, eventually, at $80/book plus shipping.  In the USA shipping is $5.00 for media mail.  I will accept PayPal, Zelle, MO and good old checks (and cash if you want to stop by for a tour!).  CLICK BANNER to send me a PM for International pricing and shipping. Manufacturer of various vintage rifle scopes for the 1903 such as our M73G4 (reproduction of the Weaver 330C) and Malcolm 8X Gen II (Unertl reproduction). Several of our scopes are used in the CMP Vintage Sniper competition on top of 1903 rifles. Brian Dick ... BDL Ltd. - Specializing in British and Commonwealth weapons Specializing in premium ammunition and reloading components. Your source for the finest in High Power Competition Gear. Here at T-bones Shipwrighting we specialise in vintage service rifle: re-barrelling, bedding, repairs, modifications and accurizing. We also provide importation services for firearms, parts and weapons, for both private or commercial businesses.


  3. #2
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Today @ 10:20 AM
    Location
    Victoria BC
    Posts
    31,013
    Real Name
    Jim
    Local Date
    05-03-2025
    Local Time
    11:09 AM
    Looks like a Ross breech. See post #5...

    https://www.milsurps.com/showthread.php?t=29560
    Regards, Jim

  4. Thank You to browningautorifle For This Useful Post:


  5. Avoid Ads - Become a Contributing Member - Click HERE
  6. #3
    Contributing Member flying pig's Avatar
    Join Date
    Mar 2012
    Last On
    Today @ 10:50 AM
    Location
    BC, Canada
    Posts
    319
    Local Date
    05-03-2025
    Local Time
    11:09 AM
    Looks to be a MkII barrel that had been set back to cure the LC chamber.

  7. The Following 4 Members Say Thank You to flying pig For This Useful Post:


  8. #4
    Legacy Member BurtonP's Avatar
    Join Date
    Oct 2019
    Last On
    04-16-2025 @ 07:31 PM
    Location
    Calgary
    Posts
    256
    Local Date
    05-03-2025
    Local Time
    12:09 PM
    Thread Starter
    Thanks. Flying Pig is that why it doesn't have the normal knox form profile? Has it been on a lathe to remove the flat part behind the slope? Sorry, I'm not sure what the LC chamber issue is/was.

    ---------- Post added at 10:46 AM ---------- Previous post was at 10:37 AM ----------

    I've found the thread where US barrels were indexed 180 degrees and shortened 7.8 of an inch, which answers my questions.
    One last one occurs to me - is it safe to use? Should I load reduced charges to be safe?
    Thanks in advance.

  9. #5
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Today @ 10:20 AM
    Location
    Victoria BC
    Posts
    31,013
    Real Name
    Jim
    Local Date
    05-03-2025
    Local Time
    11:09 AM
    Quote Originally Posted by BurtonP View Post
    LC chamber issue
    Large chamber to fit oversize Britishicon ammo. Turning off a few thou allows you to recut the chamber and usually a full turn is done. Then you have a fresh chamber that will be to specification. It's as safe now as it ever was...possibly. As much as we can see from here...

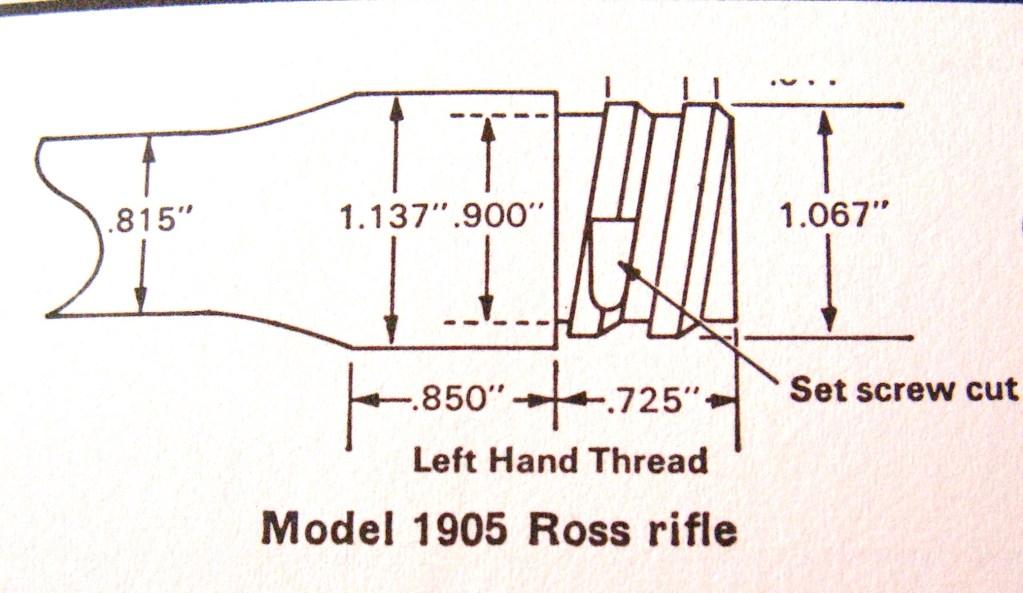

    Here's the picture moved to here so you can see, I expect one full turn has been done because of the particular (peculiar) thread. What started as .850" looks to be about .125" now. But the threads are the same.
    Attached Thumbnails Click image for larger version

Name:	1.jpg‎
Views:	60
Size:	62.6 KB
ID:	138890
    Regards, Jim

  10. Thank You to browningautorifle For This Useful Post:


  11. #6
    Contributing Member Aragorn243's Avatar
    Join Date
    Apr 2009
    Last On
    Today @ 01:29 PM
    Location
    Pennsylvania, United States
    Posts
    7,483
    Real Name
    Steve
    Local Date
    05-03-2025
    Local Time
    02:09 PM
    My Ross has one of those barrels. I question safety with full loads as the cartridge extends way beyond the heavy chamber. Maybe I'm wrong. We debated this a while back.

    https://www.milsurps.com/showthread.php?t=76540

  12. #7
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Today @ 10:20 AM
    Location
    Victoria BC
    Posts
    31,013
    Real Name
    Jim
    Local Date
    05-03-2025
    Local Time
    11:09 AM
    Quote Originally Posted by Aragorn243 View Post
    I question safety with full loads as the cartridge extends way beyond the heavy chamber.
    Tests were done with M1903 rifle barrels where the metal was removed to virtually paper thin and it took that much before the barrels burst during firing. Unless you are plugging the bore...Hatcher's notebook has the details of these tests.

    Fear not...
    Regards, Jim
