11 Dec 2020 Garand Picture of the Day

[Mark in Rochester]

S/Sgt George Abdella, Co 'E', 2d Bn, 66th Reg 71st Div demonstrates how to fire the rifle grenade from the kneeling position. Army Signal Corps photograph11 October 1944



George S. Abdella, 94, formerly of New Milford, CT, passed away on Wednesday, May 1, 2013, at Geer Nursing & Rehab Center in Canaan, CT. He was the husband of the late Louise Violano Abdella. Mr. Abdella was born in Danbury, CT, June 14, 1918, son of the late Samuel and Saleema Michael Abdella. He was a World War ii veteran, serving as a Staff Sergeant in the US Army.

Information

Warning: This is a relatively older thread This discussion is older than 360 days. Some information contained in it may no longer be current.

[Mark in Rochester]

can anyone ID the extra feature on the gas cylinder?

[Ovidio]

It almost looks like something attached to the bayonet lug...

[BEAR]

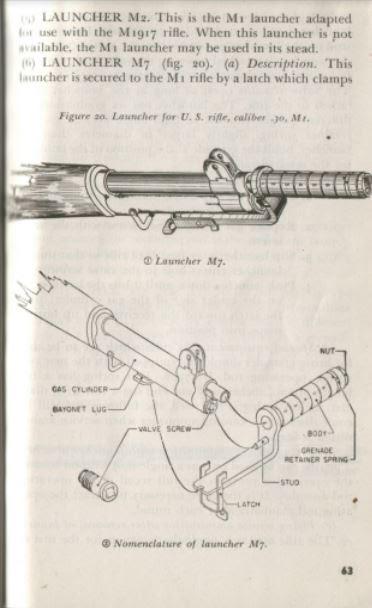

M7 Grenade launching attachment tool
Attachment 113150

[RCS]

The old single slot screw had to be replaced with the new gas cylinder lock screw with the valve in order to fire grenadesAttachment 113151Attachment 113152

[browningautorifle]

the new gas cylinder lock screw

And they came in the kits along with the launcher...yes, the extra thing is the lock for the grenade launcher. They had no spring so one either had to change them back or push the poppet valve closed before repetition was available again.

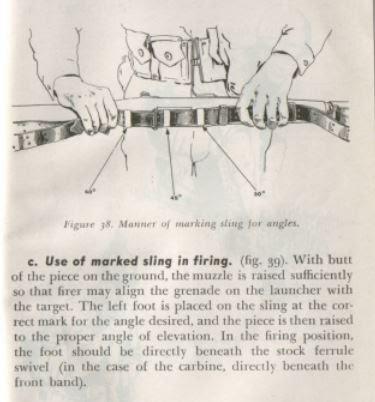

The kneeling position included one foot on the sling to keep down muzzle jump as demonstrated above...

[RCS]

very early pouch for M1 rifle grenade launcherAttachment 113169Attachment 113170Attachment 113171

[Mark in Rochester]

very early pouch for M1 rifle grenade launcherAttachment 113169Attachment 113170Attachment 113171

is that for the launcher or the sight?

[Mark in Rochester]

yes, the extra thing is the lock for the grenade launcher

any body have a better picture of this - Don't recall seeing this in the FM 23-30






---------- Post added at 09:09 PM ---------- Previous post was at 09:09 PM ----------

[RCS]

Mark, Forgot to add that early pouch is for the grenade sight that is mounted on the side of the stock.
