    Winchester P14

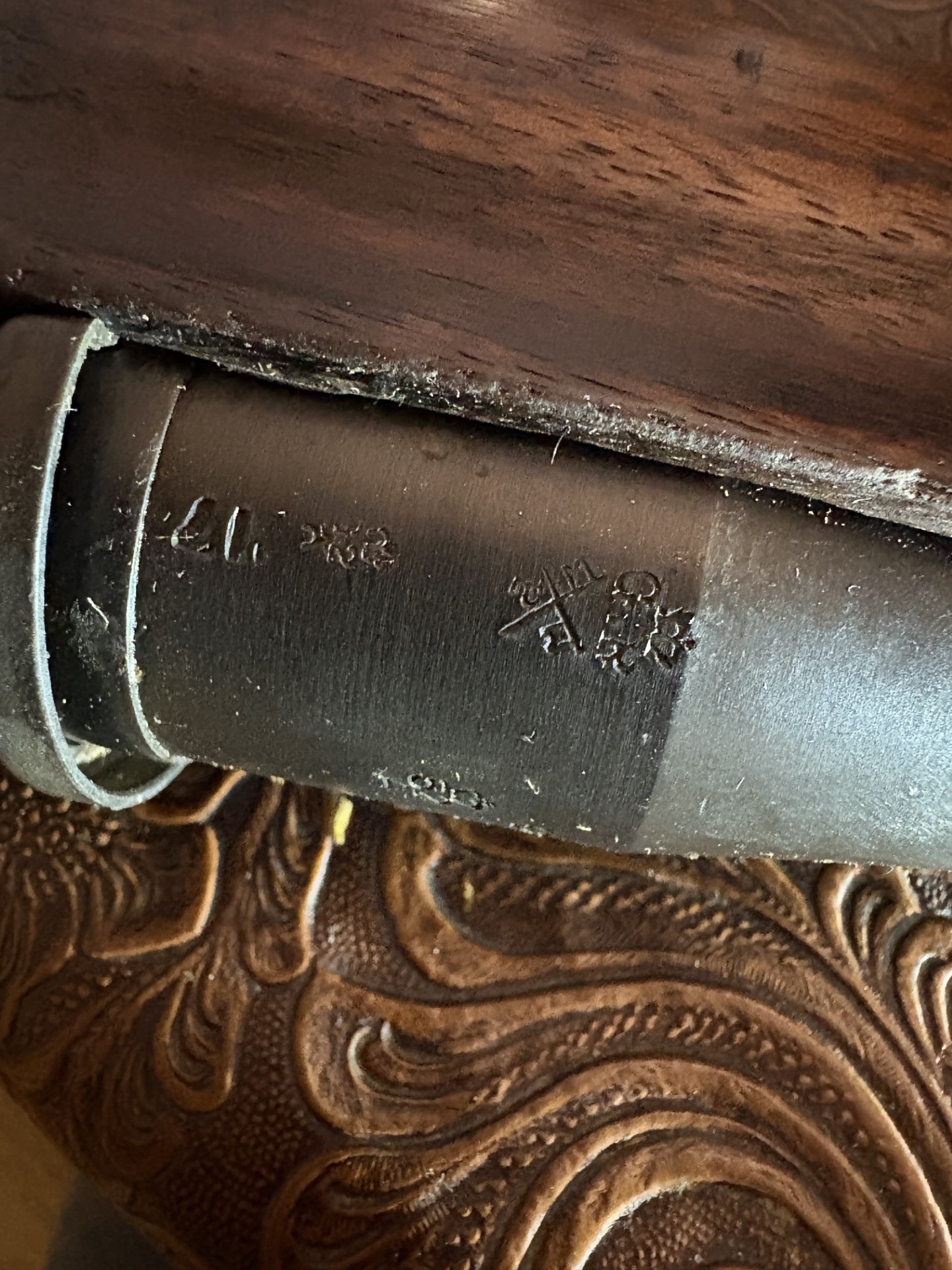

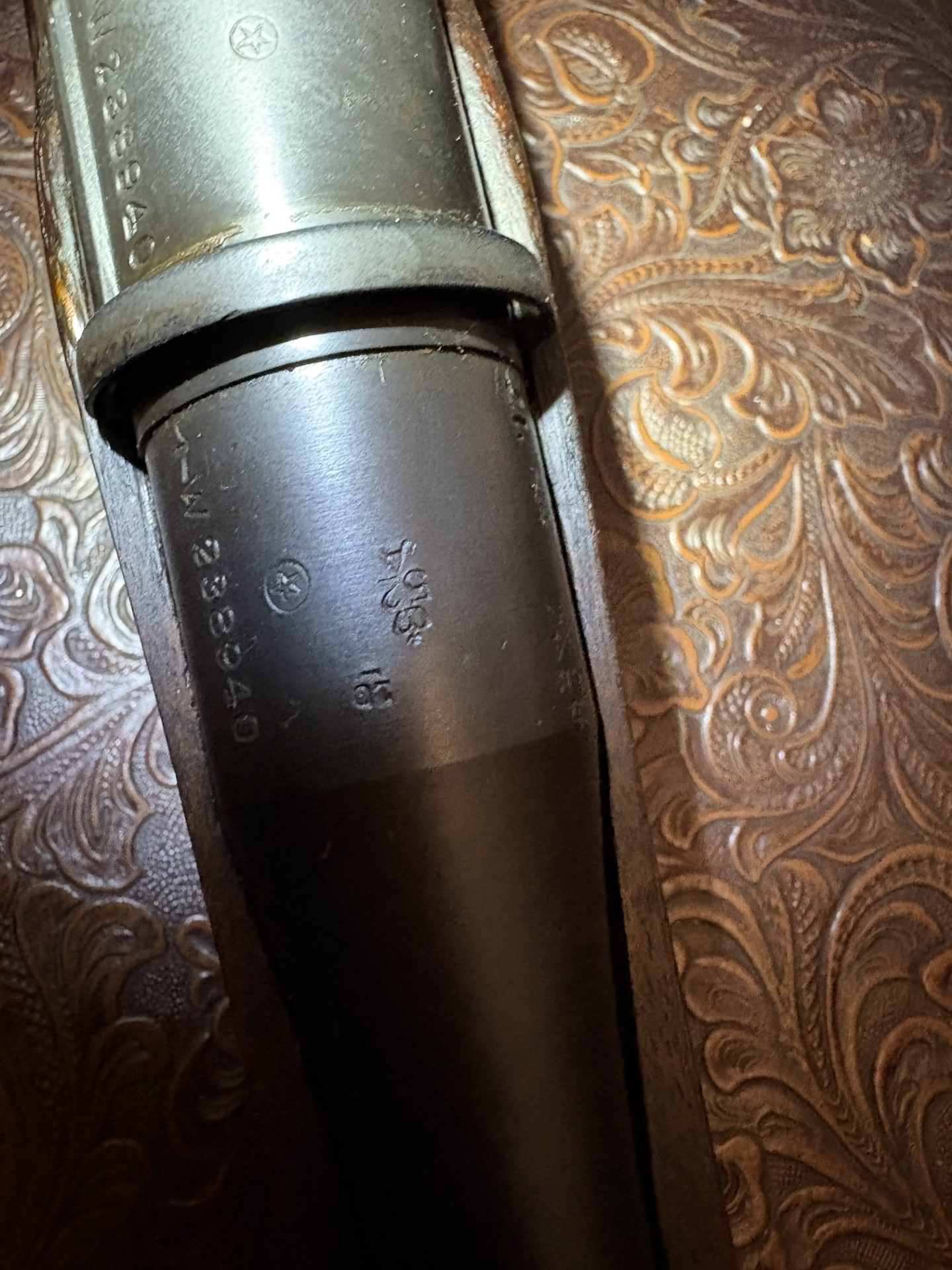

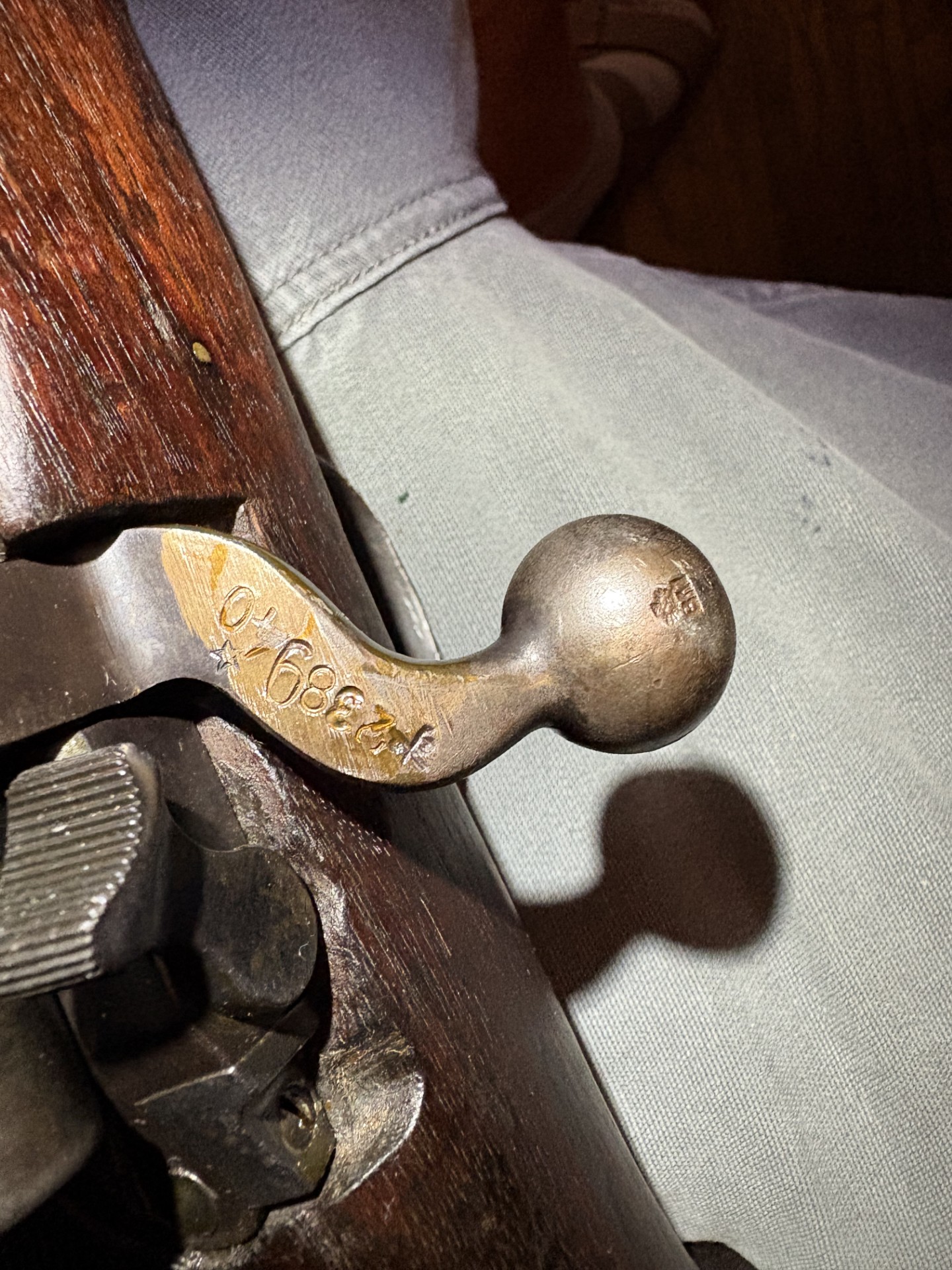

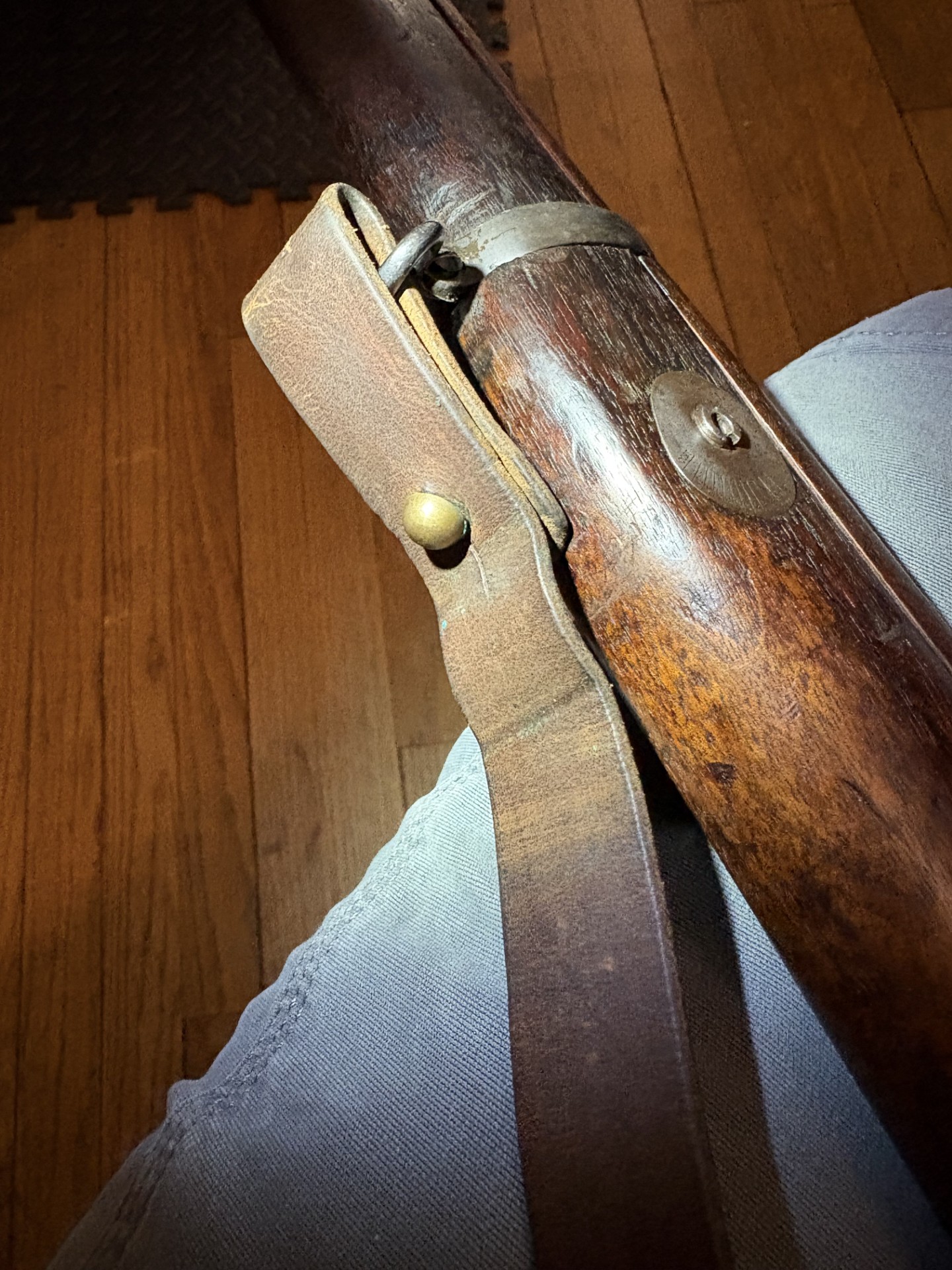

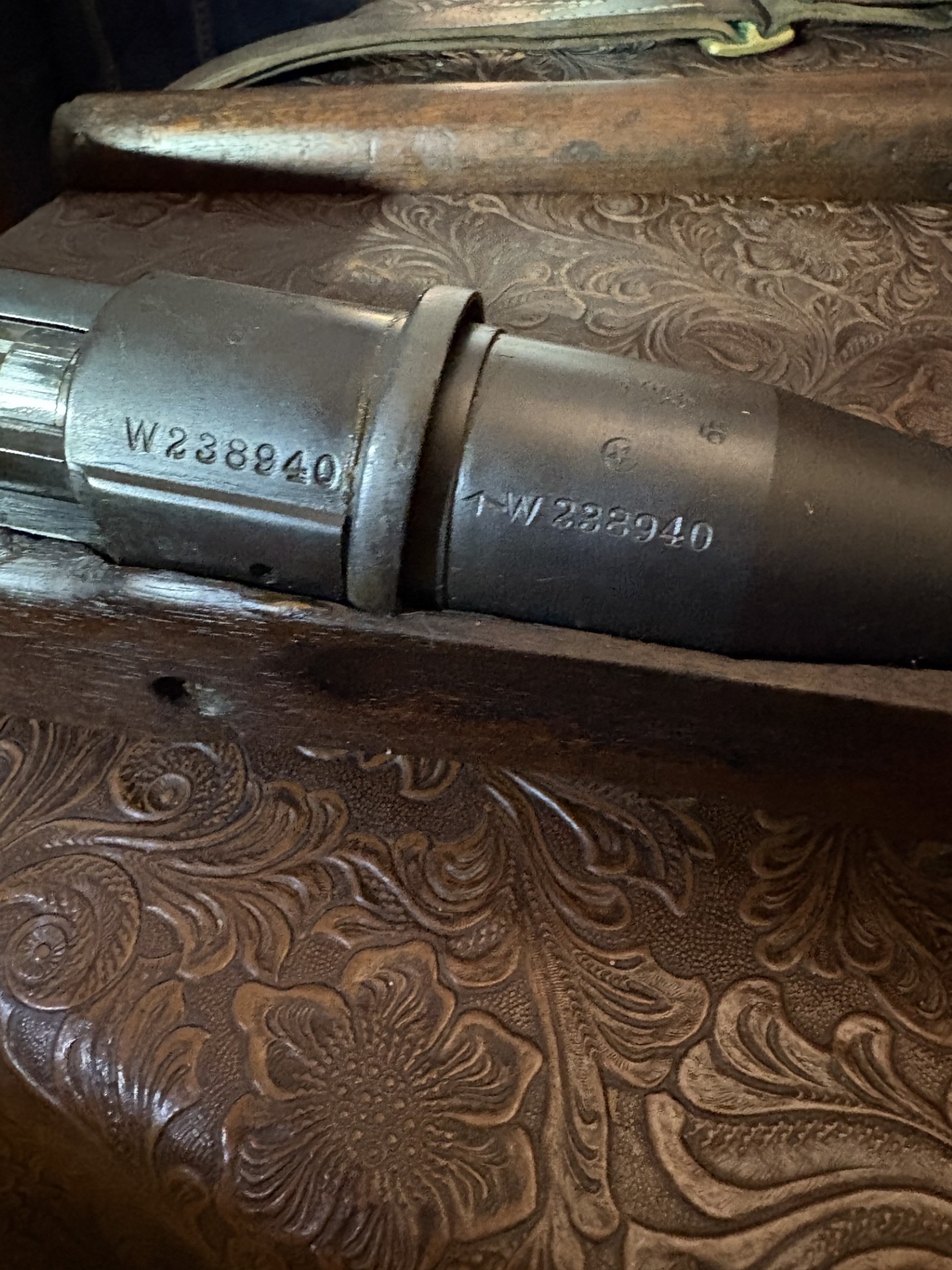

    Just got a Winchester p14 rifle, my first p14, I’ve been hitting up all the websites for information on the rifle, it does have some import markings under the front of the barrel, serial number is W238,xxx, took the top handguards off barrels has same serial numbers a larger 17 stamp along with some others, bolt has matching numbers and the ladder rear sight has same serial number, front sight has a W on left side, the volley plate has an E on the left side, it has a leather sling with brass buckle, the bore is bright and shiny with plenty of lands and grooves, I would love to post some pics but I can’t seem to do it.

  2. # ADS
    Friends and Sponsors
    Join Date
    October 2006
    Location
    Milsurps.Com
    Posts
    All Threads
    A Collector's View - The SMLE Short Magazine Lee Enfield 1903-1989. It is 300 8.5x11 inch pages with 1,000+ photo’s, most in color, and each book is serial-numbered.  Covering the SMLE from 1903 to the end of production in India in 1989 it looks at how each model differs and manufacturer differences from a collecting point of view along with the major accessories that could be attached to the rifle. For the record this is not a moneymaker, I hope just to break even, eventually, at $80/book plus shipping.  In the USA shipping is $5.00 for media mail.  I will accept PayPal, Zelle, MO and good old checks (and cash if you want to stop by for a tour!).  CLICK BANNER to send me a PM for International pricing and shipping. Manufacturer of various vintage rifle scopes for the 1903 such as our M73G4 (reproduction of the Weaver 330C) and Malcolm 8X Gen II (Unertl reproduction). Several of our scopes are used in the CMP Vintage Sniper competition on top of 1903 rifles. Brian Dick ... BDL Ltd. - Specializing in British and Commonwealth weapons Specializing in premium ammunition and reloading components. Your source for the finest in High Power Competition Gear. Here at T-bones Shipwrighting we specialise in vintage service rifle: re-barrelling, bedding, repairs, modifications and accurizing. We also provide importation services for firearms, parts and weapons, for both private or commercial businesses.


  3. #2
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Yesterday @ 11:28 PM
    Location
    Victoria BC
    Posts
    30,993
    Real Name
    Jim
    Local Date
    04-25-2025
    Local Time
    03:26 AM
    Quote Originally Posted by Rakkasan View Post
    I would love to post some pics but I can’t seem to do it.
    Send me the pics and I'll add them to the thread. See PM.
    Regards, Jim

  4. Avoid Ads - Become a Contributing Member - Click HERE
  5. #3
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Yesterday @ 11:28 PM
    Location
    Victoria BC
    Posts
    30,993
    Real Name
    Jim
    Local Date
    04-25-2025
    Local Time
    03:26 AM

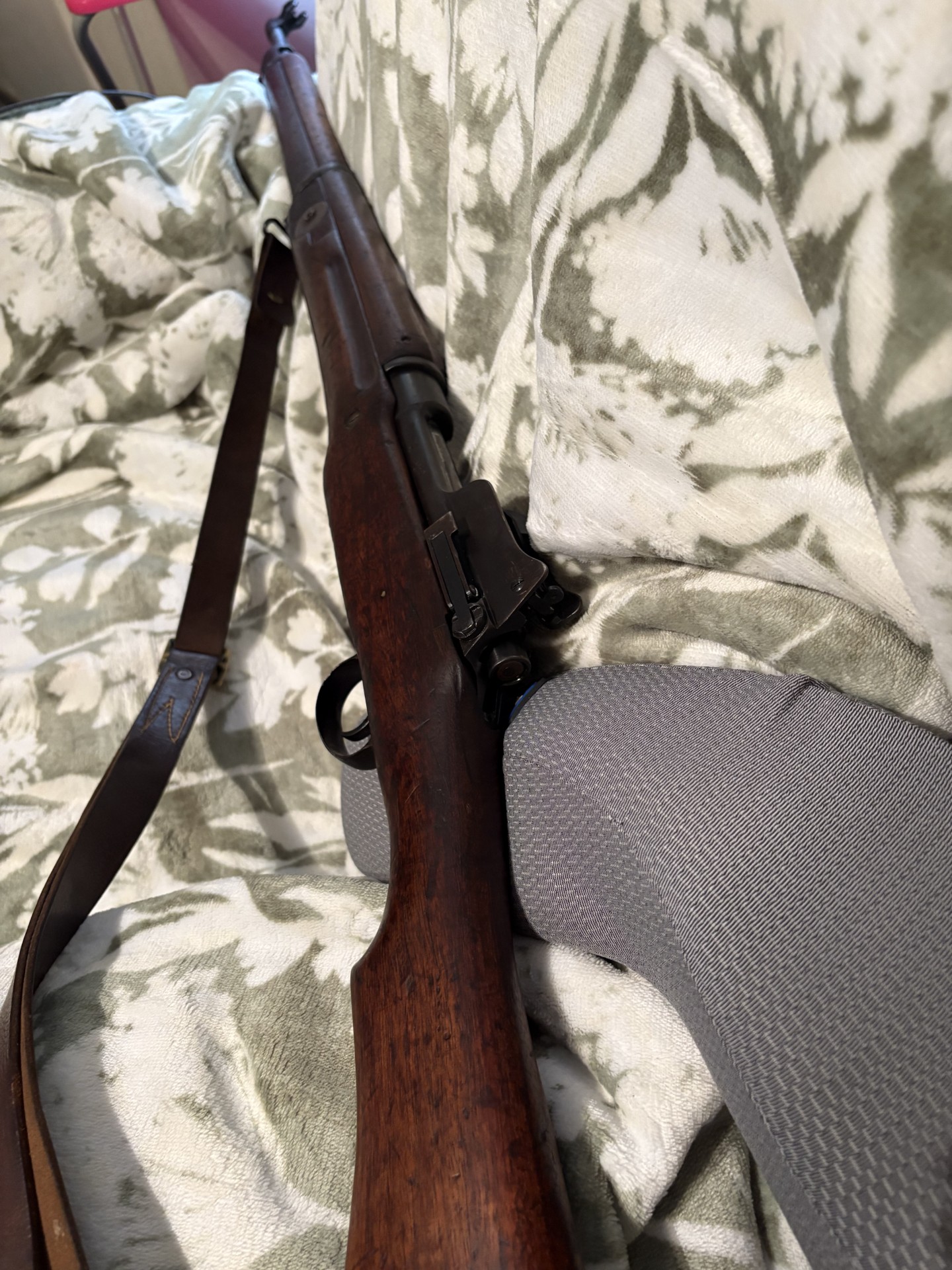

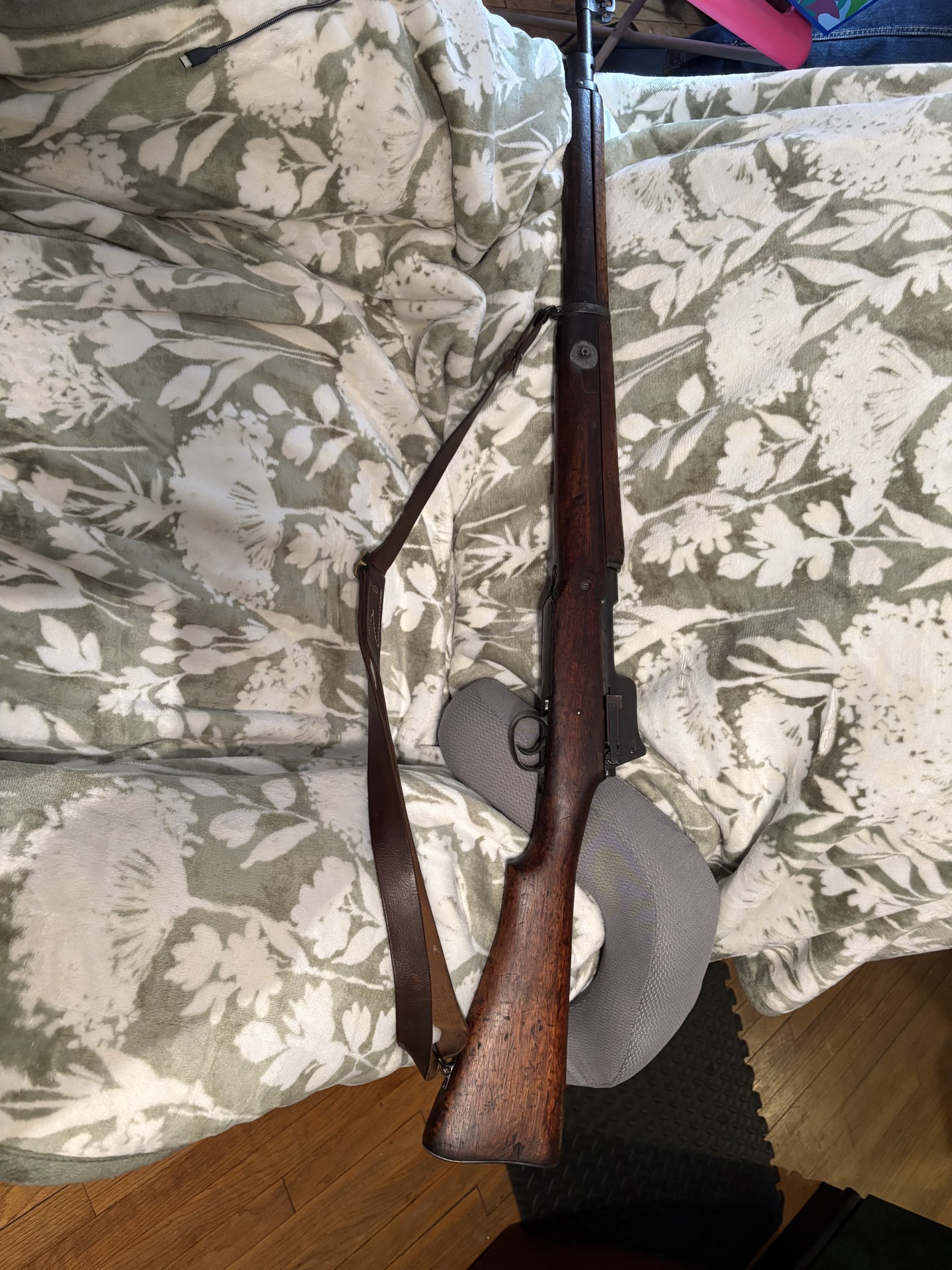

    Here are the pics.
    Attached Thumbnails Click image for larger version

Name:	thumbnail_3B58D7CB-B84F-4FAE-8D22-C4AEB0911806.jpg‎
Views:	88
Size:	624.0 KB
ID:	138183   Click image for larger version

Name:	thumbnail_499C9A54-878F-4CFE-BDEC-59A4F3D42AF1.jpg‎
Views:	89
Size:	702.9 KB
ID:	138184   Click image for larger version

Name:	thumbnail_ABED7C6C-8572-44B4-95E5-6D3636689B20.jpg‎
Views:	95
Size:	692.7 KB
ID:	138185   Click image for larger version

Name:	thumbnail_IMG_1159.jpg‎
Views:	92
Size:	584.1 KB
ID:	138186   Click image for larger version

Name:	thumbnail_IMG_1161.jpg‎
Views:	89
Size:	540.7 KB
ID:	138187   Click image for larger version

Name:	thumbnail_IMG_1162.jpg‎
Views:	69
Size:	601.1 KB
ID:	138188   Click image for larger version

Name:	thumbnail_IMG_1170.jpg‎
Views:	72
Size:	671.2 KB
ID:	138189

    Click image for larger version

Name:	thumbnail_IMG_1173.jpg‎
Views:	66
Size:	674.5 KB
ID:	138190
    Regards, Jim

  6. Thank You to browningautorifle For This Useful Post:


  7. #4
    Contributing Member Sapper740's Avatar
    Join Date
    Jul 2022
    Last On
    Yesterday @ 05:29 AM
    Location
    Texas
    Posts
    972
    Local Date
    04-25-2025
    Local Time
    05:26 AM
    She's a beauty Rakkasan and the Winchesters are the best of the P14 family. Only Winchester made P14s were selected to to be fitted for the fine adjustment screw in the backsight because of their superior build quality and accuracy. Your rifle is a MkI* which means it can accommodate the longer left bolt lug and if you look on the bottom of the pistol grip you might still be able to see a six pointed star which tells you the rifle went through the Weedon Repair Standard in 1939 as the Britishicon government brought the P14s out of storage. A letter stamped below the star will tell you which factory performed the WRS. I own a Winchester P14 MkI* and it is an excellent shooter. Yours should be too.

  8. #5
    Legacy Member oldfoneguy's Avatar
    Join Date
    Oct 2015
    Last On
    Yesterday @ 08:45 PM
    Location
    long island, ny
    Posts
    694
    Real Name
    Bill
    Local Date
    04-25-2025
    Local Time
    06:26 AM
    Indeed the Winchesters were deemed the most accurate of the bunch by the Britishicon. During WWI and post war they were fitted with telescopic sights and used as sniper rifles throughout the empire. My personal P14 is a Remington however my M1917 is a Winchester.

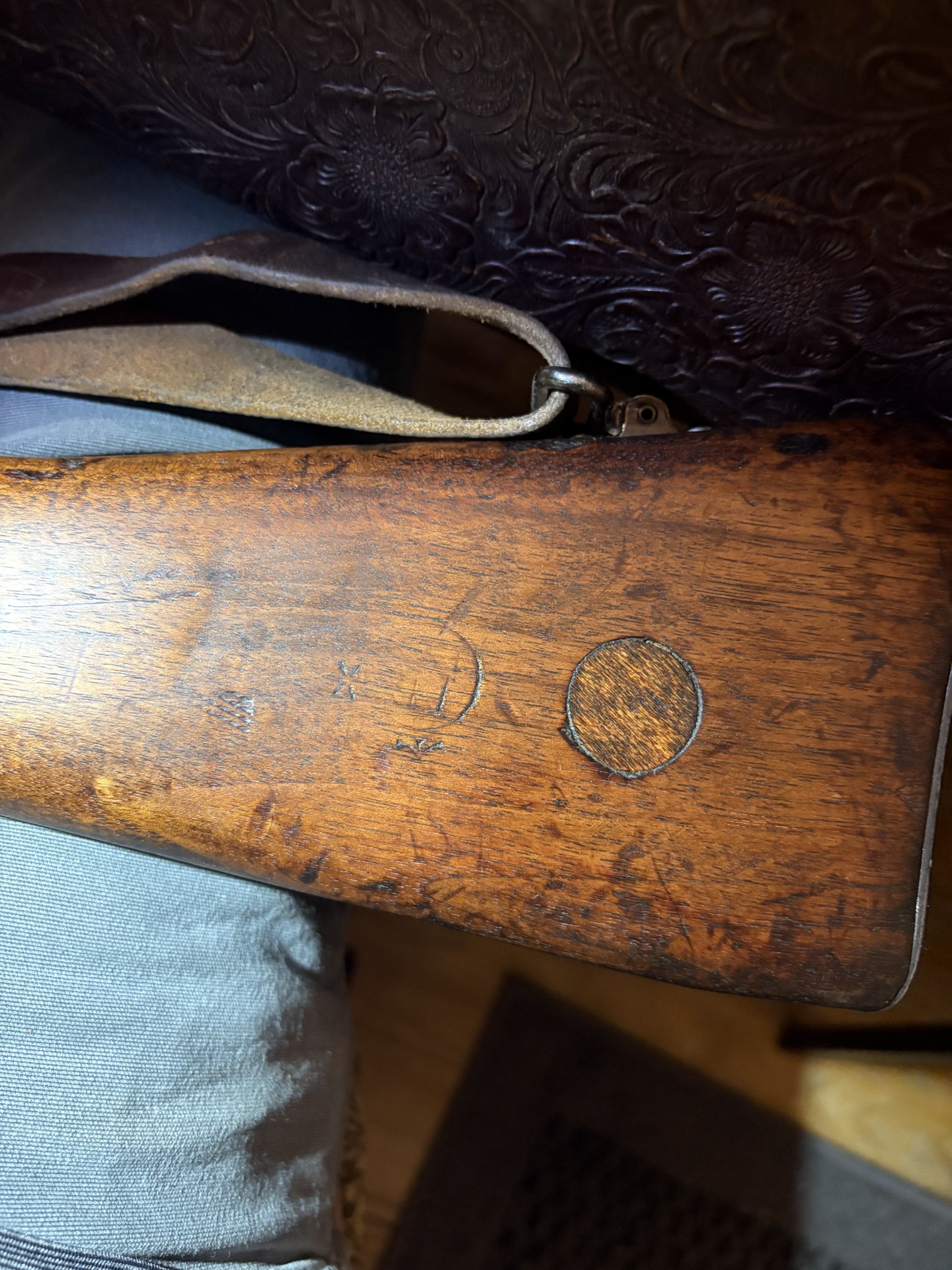

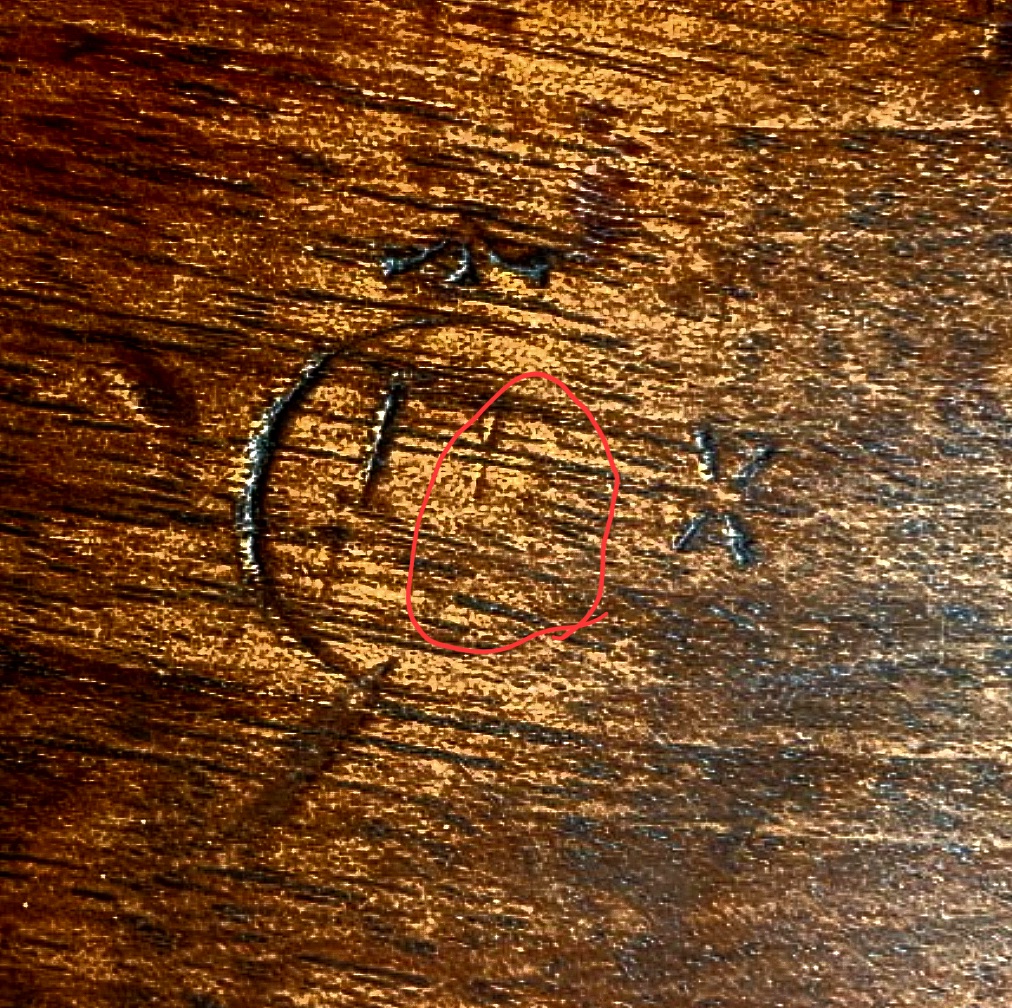

    I did the best I could to pull the manufacturers mark off your stock. There's not much of it left but from what I can see my bet is it's a Remington stock as there's a straight line with a circle at the top or so it appears. Don't fret it was probably done by the British during the referb prior to WWII. They were in a rush and didn't care much about keeping the rifles matching as long as they were fully functional and safe to shoot.

    Indeed it's a beauty and I wish the two of you many good years together.
    Attached Thumbnails Click image for larger version

Name:	Screenshot_20250108_093135_Chrome.jpg‎
Views:	75
Size:	735.4 KB
ID:	138191

  9. Thank You to oldfoneguy For This Useful Post:


  10. #6
    Contributing Member Rakkasan's Avatar
    Join Date
    Dec 2024
    Last On
    04-09-2025 @ 01:53 AM
    Location
    Houston Texas
    Posts
    16
    Real Name
    Mark Garcia
    Local Date
    04-25-2025
    Local Time
    04:26 AM
    Thread Starter
    Thanks guys

  11. Thank You to Rakkasan For This Useful Post:


  12. #7
    Contributing Member Rakkasan's Avatar
    Join Date
    Dec 2024
    Last On
    04-09-2025 @ 01:53 AM
    Location
    Houston Texas
    Posts
    16
    Real Name
    Mark Garcia
    Local Date
    04-25-2025
    Local Time
    04:26 AM
    Thread Starter
    Again the bore is in excellent condition

  13. #8
    Advisory Panel breakeyp's Avatar
    Join Date
    Jul 2007
    Last On
    04-18-2025 @ 11:05 AM
    Location
    near Detroit Michigan
    Age
    78
    Posts
    971
    Real Name
    Paul Breakey
    Local Date
    04-25-2025
    Local Time
    06:26 AM
    [QUOTE= Only Winchester made P14s were selected to to be fitted for the fine adjustment screw in the backsight because of their superior build quality and accuracy." For what it is worth, I have somewhere in my parfts bin, a Remington marked Pattern 1914 (f) fine tune rear sight. An odd duck at best.

  14. #9
    Contributing Member Sapper740's Avatar
    Join Date
    Jul 2022
    Last On
    Yesterday @ 05:29 AM
    Location
    Texas
    Posts
    972
    Local Date
    04-25-2025
    Local Time
    05:26 AM
    [QUOTE=breakeyp;544405][QUOTE= Only Winchester made P14s were selected to to be fitted for the fine adjustment screw in the backsight because of their superior build quality and accuracy." For what it is worth, I have somewhere in my parfts bin, a Remington marked Pattern 1914 (f) fine tune rear sight. An odd duck at best.[/QUOTE]

    That would definitely be an odd bird. Everything I've read to date says only the Winchester P14 rear sights received the fine screw but as we milsurps collectors constantly are reminded, there are exceptions to every rule.
