    Spanish FR-8 Magazine Follower and Spring

    A friend gifted me a La Coruna 1950 FR-8 today. The overall condition of the rifle is good to very good. The only issue is the follower and follower spring. I've read the FR-8 is based on the Mauser 98. I've looked on Numrich at the Mauser 98 parts and they have the spring and follower. However the follower is for 8mm. Does anyone know if this follower will feed the 7.62X51 rounds? If not, what Mauser model follower will work?

    Also, any ideas as to what i can use to adjust the front sight down?
    Information
    Warning: This is a relatively older thread
    This discussion is older than 360 days. Some information contained in it may no longer be current.

  2. #2
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Yesterday @ 09:09 PM
    Location
    Victoria BC
    Posts
    31,124
    Real Name
    Jim
    Local Date
    06-10-2025
    Local Time
    01:57 AM
    Quote Originally Posted by Rufjustis View Post
    Also, any ideas as to what i can use to adjust the front sight down?

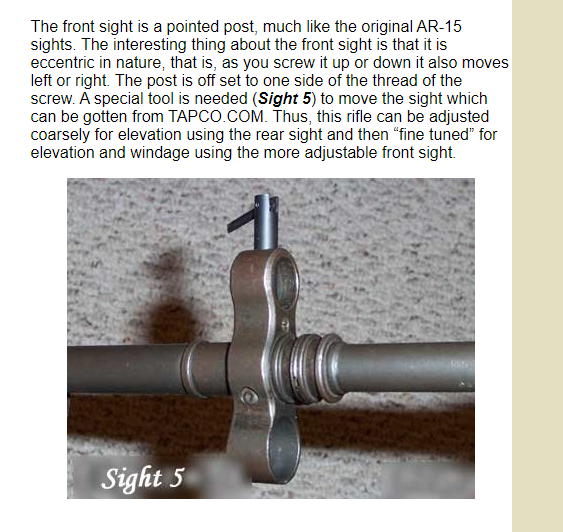

    Is this the sort of thing you want?

    Quote Originally Posted by Rufjustis View Post
    Does anyone know if this follower will feed the 7.62X51 rounds?
    Wasn't it in 7.62x51? I thought they fed fine? I only knew of a couple here but never heard of problems.
    Attached Thumbnails Click image for larger version

Name:	1.png‎
Views:	158
Size:	282.1 KB
ID:	130432
    Regards, Jim

  3. #3
    Legacy Member Rufjustis's Avatar
    Join Date
    Jun 2020
    Last On
    04-02-2023 @ 02:27 PM
    Location
    South Mississippi
    Posts
    6
    Local Date
    06-10-2025
    Local Time
    03:57 AM
    Thread Starter
    Yes, I need something like that. I don't even know where it will shoot yet. My friend said it shot way high at 100 yards and the front sight needed to be adjusted a lot. As for feeding, the spring is bent and the follower is pretty rough. For whatever reason, the first round you put in the magazine will jump back out. After that it works better. Figured I'd replace the follower and spring to correct it. I just figured the 8mm follower available at Numrich was longer and didn't know if it would require shortening or what to make work. Also, where did you get the information on the front sight from? Looks like something I need to read all of. Thanks for the info!

  4. #4
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Yesterday @ 09:09 PM
    Location
    Victoria BC
    Posts
    31,124
    Real Name
    Jim
    Local Date
    06-10-2025
    Local Time
    01:57 AM
    Quote Originally Posted by Rufjustis View Post
    where did you get the information on the front sight from?
    Collecting and Shooting the Spanish FR-8 Rifle - OPERATIONS This...

    Quote Originally Posted by Rufjustis View Post
    My friend said it shot way high at 100 yards
    I'd ask what ammo he used. Try military ball first before jumping to conclusions. I'd never believe anyone else's shooting results.
    Regards, Jim

  5. #5
    Legacy Member oldfoneguy's Avatar
    Join Date
    Oct 2015
    Last On
    Yesterday @ 12:07 PM
    Location
    long island, ny
    Posts
    707
    Real Name
    Bill
    Local Date
    06-10-2025
    Local Time
    04:57 AM
    If it shoots high you need to raise the front sight to bring the point of impact down to line up with the point of aim. Also make sure the rear sight is adjusted as low as it can go before adjusting the front sight. As illogical as it sounds all front sight adjustments are the opposite of where you want the shot to go. Up moves it down, down moves it up, right moves it left and left moves it right.
    The 8mm follower should work fine as the 2 rounds have similar profiles. Almost any Mauser style magazine spring should work providing it attaches to the follower and floorplate properly.
    Last edited by oldfoneguy; 03-08-2023 at 08:33 AM.

  6. #6
    Legacy Member Rufjustis's Avatar
    Join Date
    Jun 2020
    Last On
    04-02-2023 @ 02:27 PM
    Location
    South Mississippi
    Posts
    6
    Local Date
    06-10-2025
    Local Time
    03:57 AM
    Thread Starter
    Thanks for the info guys. You all have been a big help!!!

  7. #7
    Legacy Member Rufjustis's Avatar
    Join Date
    Jun 2020
    Last On
    04-02-2023 @ 02:27 PM
    Location
    South Mississippi
    Posts
    6
    Local Date
    06-10-2025
    Local Time
    03:57 AM
    Thread Starter
    I made a front sight adjustment tool today. I'd had the front sight soaking in Kroil for the past two days. The lock screw came right out. My sight adjustment tool took 3-4 modifications before it fell into place. Again, Kroil had done the trick. Screwed the sight right out. Got it cleaned up and put back. Dissassembled, cleaned and reassembled rifle. Now, I'm just sitting back waiting for the magazine follower and spring to arrive from Numrich.

  8. The Following 2 Members Say Thank You to Rufjustis For This Useful Post:


  9. #8
    Legacy Member Rufjustis's Avatar
    Join Date
    Jun 2020
    Last On
    04-02-2023 @ 02:27 PM
    Location
    South Mississippi
    Posts
    6
    Local Date
    06-10-2025
    Local Time
    03:57 AM
    Thread Starter
    Update. The milled M98 mag follower and spring came in. Feeds great now. Got it sighted in too. Now to try and find a bottom sling swivel that its missing.

  10. #9
    Contributing Member Aragorn243's Avatar
    Join Date
    Apr 2009
    Last On
    Yesterday @ 11:16 PM
    Location
    Pennsylvania, United States
    Posts
    7,580
    Real Name
    Steve
    Local Date
    06-10-2025
    Local Time
    04:57 AM
    The bottom sling swivel should be easy to find. It's the upper one that is more difficult. Standard swivel for the 43 is what it is. Mine was missing the front and that was a real pain finding.

  11. #10
    Contributing Member Low & Slow's Avatar
    Join Date
    May 2015
    Last On
    Yesterday @ 11:39 PM
    Location
    colorado usa
    Posts
    531
    Local Date
    06-10-2025
    Local Time
    02:57 AM
    A word of caution here. Some of those sight adjustment tools are less than robust, and the sight post may be stubborn. If you sense resistance, don't push it. Back off and dose the sight post with Kroil or some such for a while. Return and conquer later. Didn't quite bend the wings off my adjuster, but came too close.
